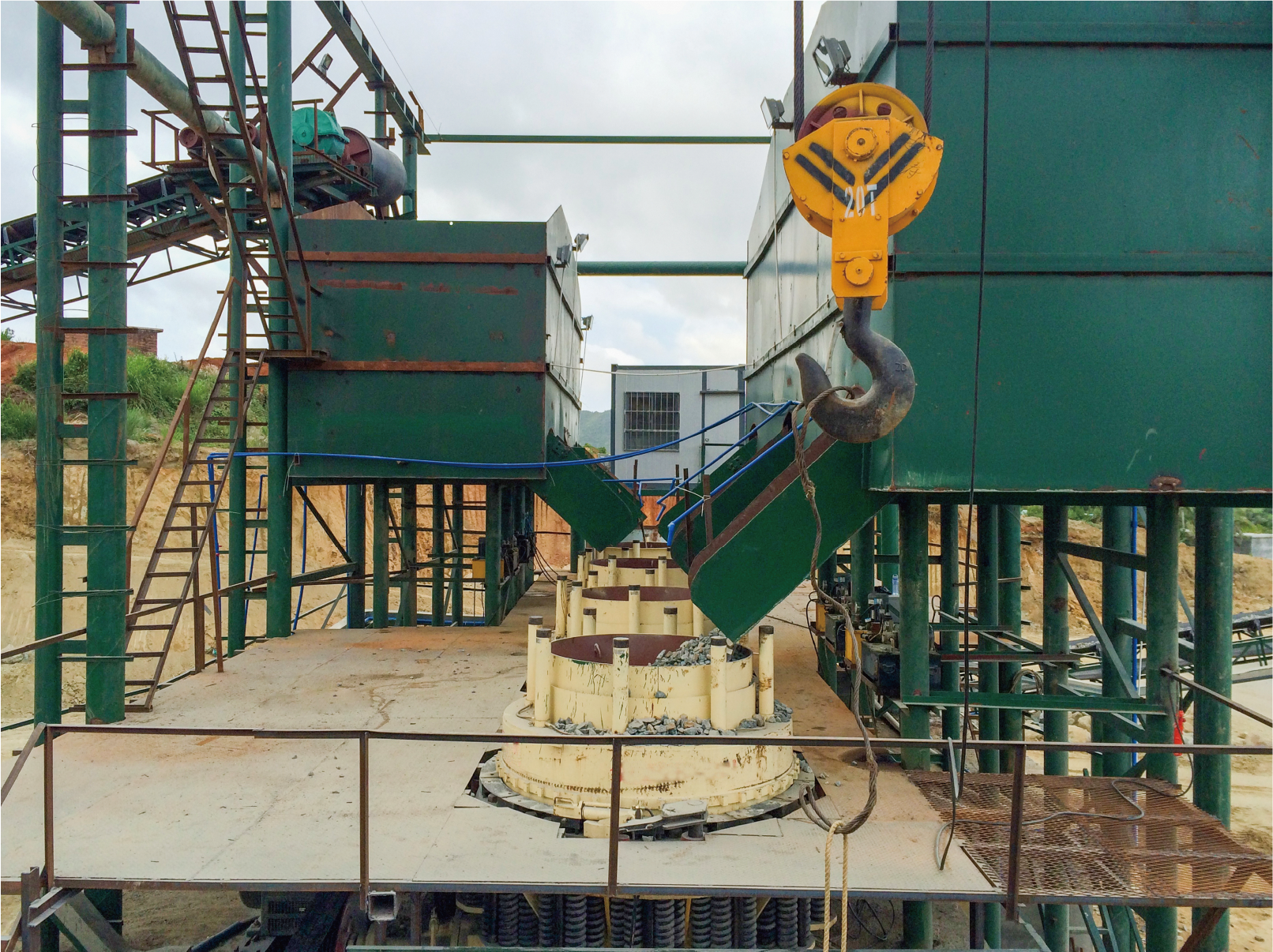

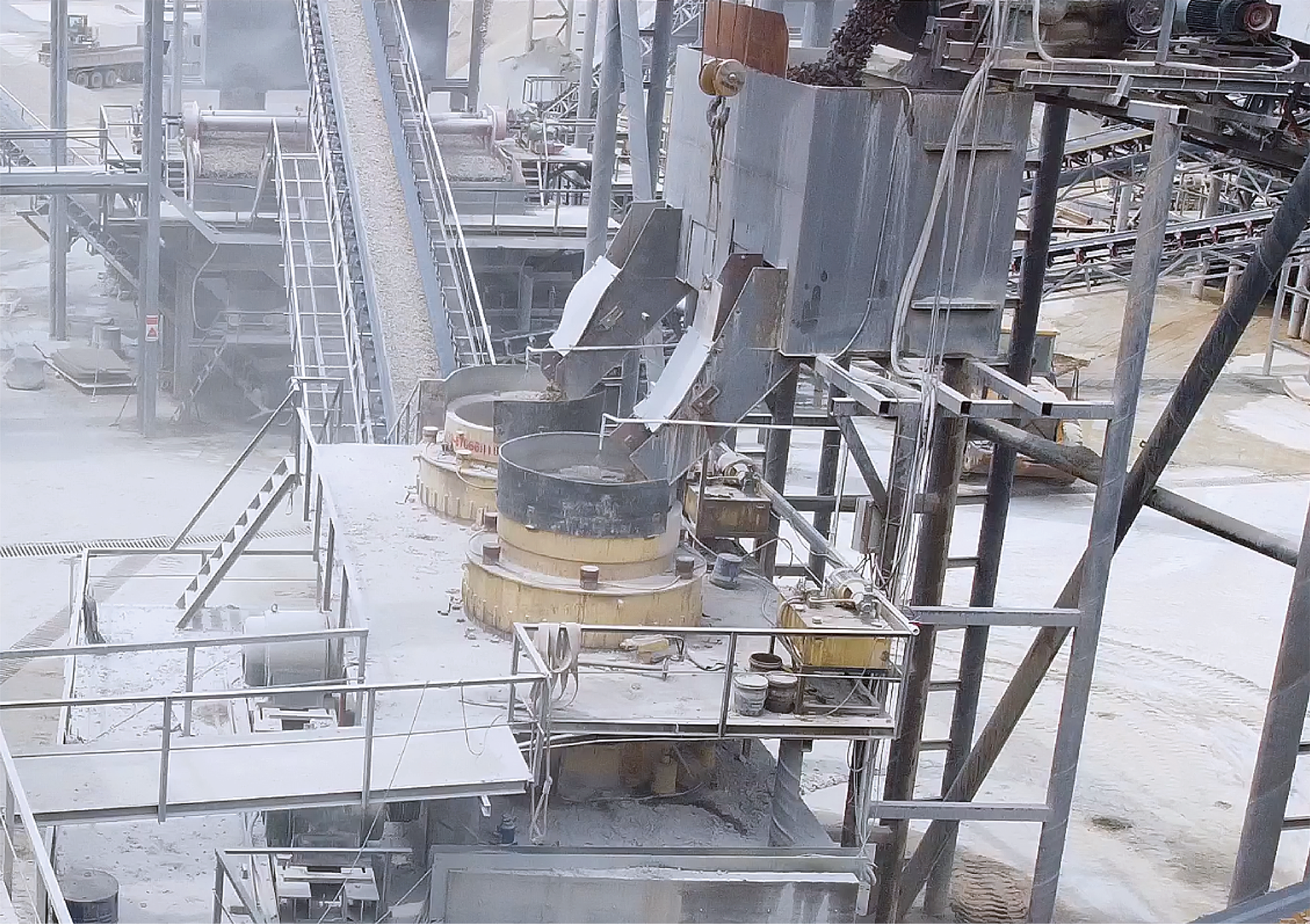

PSC SPRING CONE CRUSHER SERIES
PSC series spring cone crusher is a new type of crusher independently developed by our company featuring high efficiency, energy saving, environmental protection, and cost-effectiveness. With over 10 national patented technologies, it is widely used in the metallurgical industry, building materials industry, road construction industry, and chemical industry. It is suitable for crushing ores and rocks with various hardness levels and material properties. The product is classified into three categories based on crushing needs: coarse crushing, medium crushing, and fine crushing.
PRODUCT FEATURES
1.High-strength, aesthetically designed housing for long-lasting durability.
2.Semi-automatic hydraulic discharge opening adjustment for precise control of sand and stone gradation.
3.Specially designed mating surfaces for mantle and concave, precision-machined by dedicated equipment.
4.Custom-engineered lubricating oil circulation and cooling system tailored to customer needs.
5.Smooth and powerful bevel gear transmission.
6.Filler-free cheek plates for easy replacement.
7.Optimized crushing chamber design for significantly increased productivity.
8.User-friendly temperature and pressure control systems for easy monitoring and operation.
9.Long-wearing bronze bushings produced with special formulations and manufacturing processes.
TECHNICALSPECIFICATIONS
| Model | Stroke (mm) |
Chamber type | Feed Opening | Disalusting port range (mm) |
Transmission Speed (r/min) |
Capacity (th) |
Motor power (kw) |
Weight (t) |
|
| Close side(mm) | Open side(mm) | ||||||||
| PSC1200C-D | 22 | Primary Crushing | 178 | 191 | 19~51 | 485 | 155~340 | 110 | 20 |
| PSC1400C-D | 30 | Primary Crushing | 30 | 235 | 25~51 | 485 | 230~583 | 220 | 25 |
| PSC1400Z-D | 30 | Secondary Crushing | 30 | 215 | 22~50 | 485 | 220~550 | 220 | 25 |
| PSC1400Z-X | 25 | Tertiary Crushing | 25 | 180 | 16~38 | 485 | 198~522 | 220 | 25 |
| PSC1650C-D | 34 | Primary Crushing | 241 | 268 | 25~64 | 485 | 330~698 | 240 | 35 |
| PSC1650C-D | 34 | Primary Crushing | 98 | 133 | 10~25 | 485 | 209~369 | 240 | 35 |
| PSC1650Z-D | 34 | Secondary Crushing | 58 | 89 | 6~19 | 485 | 150~310 | 240 | 35 |
| PSC1680Z-D | 40 | Medium Type (Standard Type) | 213 | 241 | 22~51 | 485 | 258~417 | 240 | 40 |
| PSC1680C-D | 40 | Coarse Type (Standard Type) | 241 | 269 | 25~64 | 485 | 300~635 | 240 | 40 |
| PSC1680C-D | 40 | Coarse Type (Standard Type) | 98 | 133 | 10~25 | 485 | 190~336 | 240 | 40 |
PRODUCT SIZE
| Model | A | B | C | D |
| PSC1200C-D | 1450 | 1745 | 1000 | 1000 |
| PSC1400C-D | 2150 | 2260 | 1400 | 1400 |
| PSC1400Z-D | 2320 | 2480 | 1580 | 1580 |
| PSC1400Z-X | 2750 | 2800 | 1765 | 1765 |
| PSC1650C-D | 2830 | 2950 | 1950 | 1950 |
| PSC1650C-D | 3280 | 3270 | 2000 | 2000 |
| PSC1650Z-D | 3660 | 3580 | 2460 | 2400 |
| PSC1680C-D | 3660 | 3580 | 2460 | 2400 |
