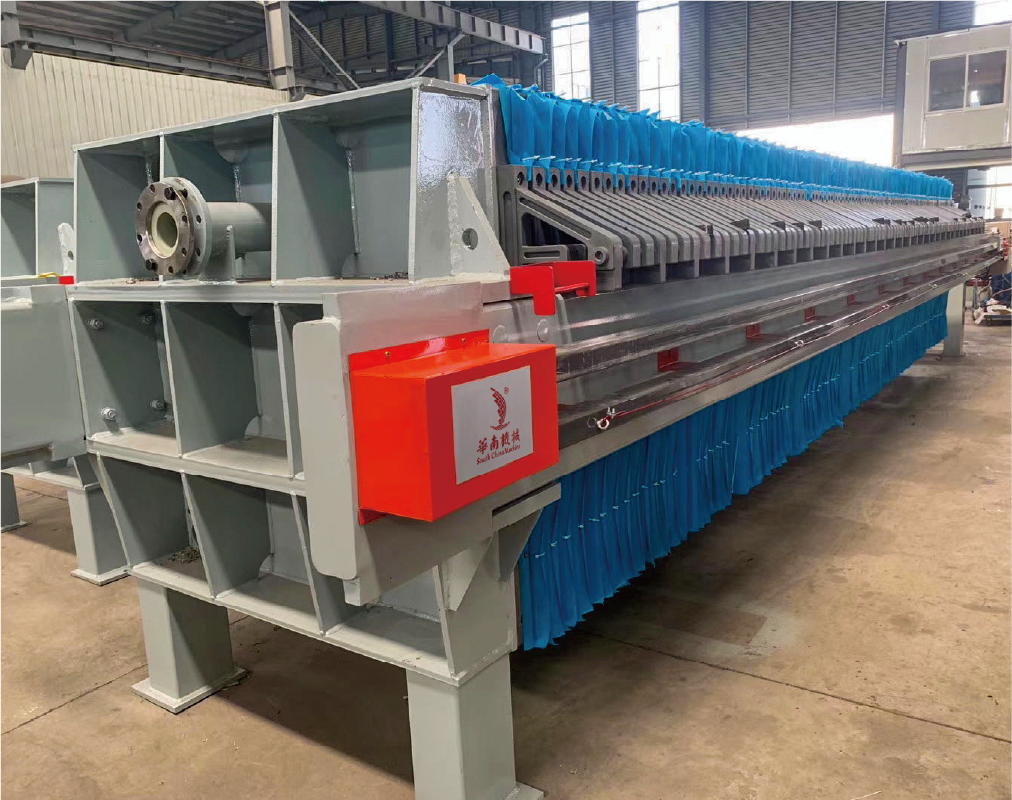

Plate and Frame Filter Press

The plate and frame filter press is a solid-liquid separation equipment widely used in industries such as coal mining, wastewater treatment, and water purification due to its high automation, long service life, strong production capacity, convenient replacement parts, high sludge dewatering efficiency, high solid recovery rate, and compact footprint.

Product Advantages

  • Suspended solids in clean water ≤30mg/L, with maximum comprehensive reuse rate of clean water up to 90%;
  • Moisture content ≤25%, fineness -200 mesh with 99% full pass;
  • Mud content in raw slurry <1%, moisture content of dry mud ≤15%.
  • High automation, long service life, strong production capacity, convenient replacement parts, high sludge dewatering efficiency, high solid recovery rate, and compact footprint.

Product Features

1.Fully automatic cleaning and sludge discharge, reducing labor hours;

2.Utilizes suspended filtration, medium adsorption, and sedimentation principles—no purification membrane or vulnerable parts;

Tank made of high-quality carbon steel (or stainless steel, epoxy fiberglass, etc.), offering excellent strength and corrosion resistance;

Low chemical usage cost, high processing capacity, efficient treatment, and stable performance;

Compact design, small footprint, and easy installation;

Machine service life of 10–15 years, low one-time investment, and significant economic benefits;

Post-treatment water quality fully complies with national discharge standards and is reusable.

TECHNICAL SPECIFICATIONS

Model Filtration Area
(m²)
Number of Filter Chambers Total Volume
(L)
Filter Plate Size (mm) Plate Thickness (mm) Overall Dimensions
L×W×H
Filtration Pressure (Mpa) Weight
 (kg)
XAMYZB200/1500-UBK 200 52 3449 1500×1500 70 6800 2080 1960 0.6 16150
XAMYZB224/1500-UBK 224 58 3854 7200 17030
XAMYZB250/1500-UBK 250 65 4328 7710 18050
XAMYZB280/1500-UBK 280 72 4801 8200 19070
XAMYZB315/1500-UBK 315 82 5477 8900 20530
XAMYZB340/1500-UBK 340 88 5883 9320 21410
XAMYZB400/1500-UBK 400 104 6965 10440 23750
XAMYZB450/1500-UBK 450 116 7844 11280 25500
XAMYZB500/1500-UBK 500 129 8655 12190 27400
XAMYZB560/1500-UBK 560 145 9737 13310 29740

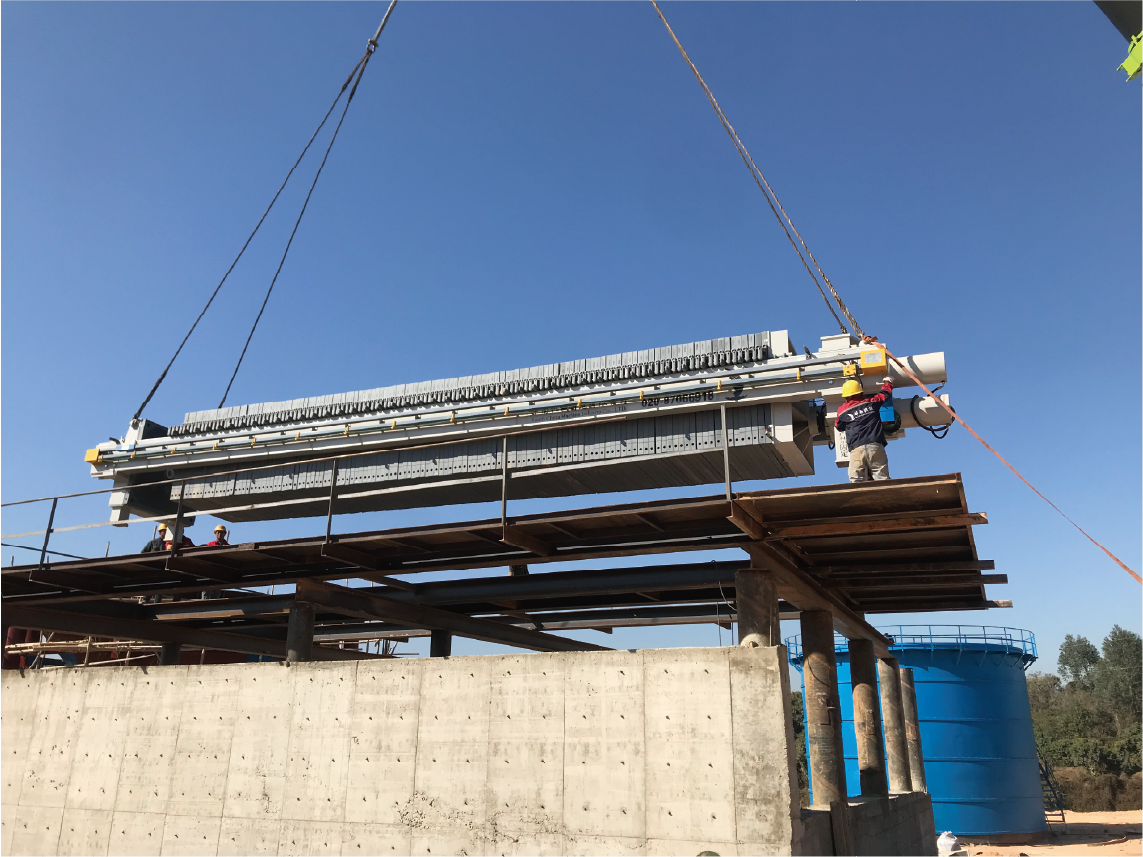

APPLICATION CASES
