PF COUNTERATTACK CRUSHER SERIE

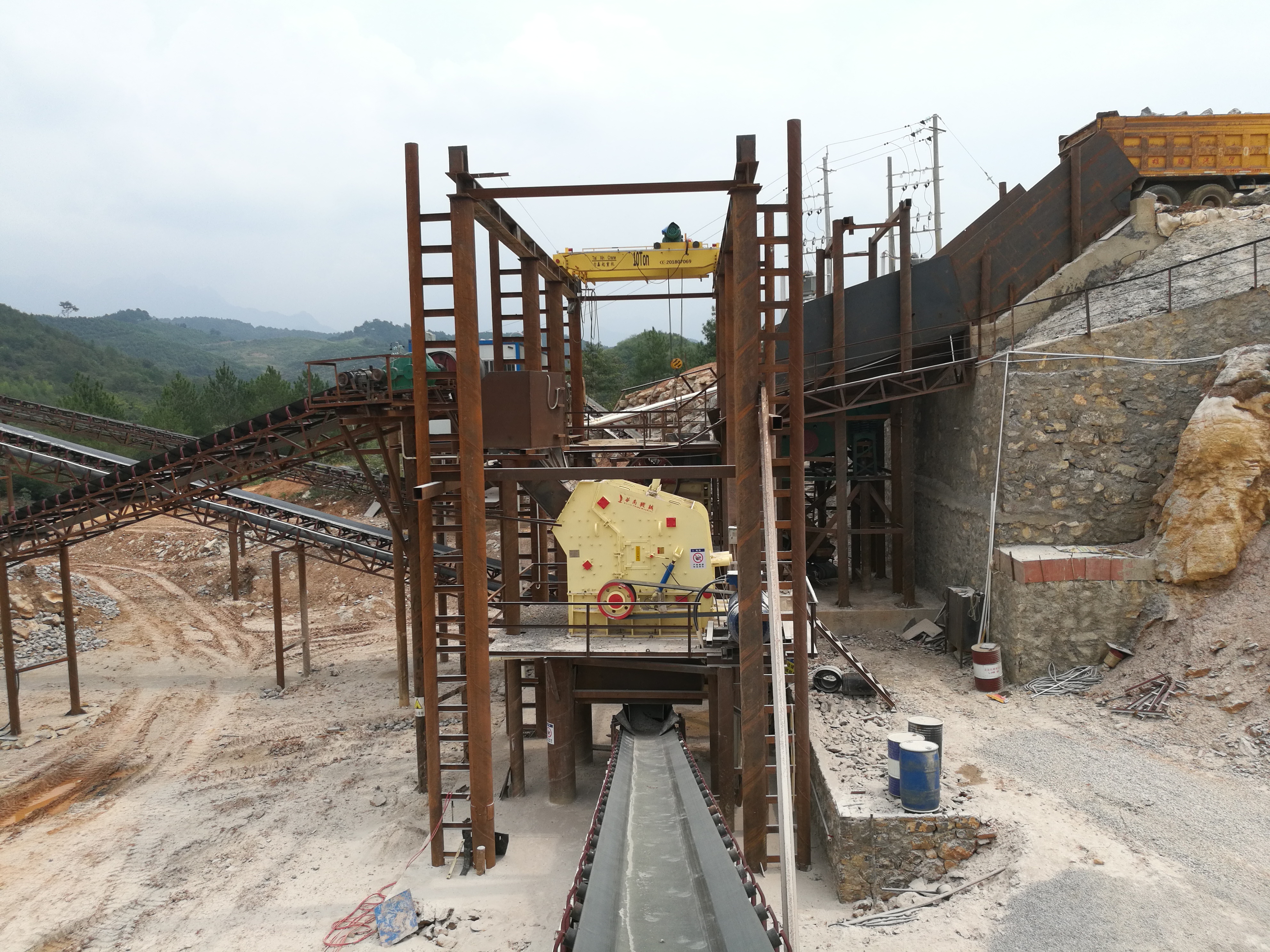

PF Counterattack Crusher is a highly efficient and energy-saving crushing equipment. Its unique design allows full utilization of the rotor's energy, where high-speed rotating hammers strike and propel materials against the impact plates, while also enabling inter-particle collisions. This multi-impact process results in high crushing efficiency and selective fragmentation, producing uniformly sized cubic-shaped end products. Widely used in industries such as building materials, chemicals, coal, and coke, it effectively crushes materials like limestone, dolomite, shale, sandstone, coal, and asbestos rock.
PRODUCT FEATURES
1.Soft rock crushing capability
2.Unique impact liner design
3.Hydraulic/manual dual opening system
4.Seamless connection
5.High-wear-resistance hammer plates
TECHNICAL SPECIFICATIONS
| Model | Feed opening size(mm×mm) | Maximum feeding size(mm×mm) |
Capacity(t/h) | Motor power(kw) |
Weight(t) | Overall dimensions(mm) |
| PF-1007 | 820×700 | 300 | 24~45 | 55 | 9.5 | 2400×1558×2660 |
| PF-1010 | 1170×720 | 350 | 50~80 | 75 | 10 | 2532×1985×2196 |
| PF-1210 | 1090×465 | 350 | 80~130 | 110 | 14 | 2645×2050×2710 |
| PF-1214 | 1440×465 | 350 | 100~160 | 132 | 16.8 | 2645×2410×2710 |
| PF-1315 | 1530×990 | 350 | 140~200 | 220 | 21 | 3160×2730×2615 |
| PF-1316 | 1640×990 | 350 | 150~220 | 220 | 21.8 | 3610×2840×2615 |
| PF-1515 | 1530×748 | 350 | 150~280 | 280~315 | 28.5 | 3555×2835×3290 |
| PF-1520 | 2280×748 | 350 | 300~400 | 400~500 | 42 | 3615×3770×3290 |
| PF-1620 | 2030×1200 | 400 | 350~500 | 500~560 | 55 | 4290×3695×4175 |
