S Spring Cone Crusher Series

Model：

S630B（Extra Coarse type）

Maximum Feed Size：

Throughput：

2265-2600t/h

Total Weight：

COLLECT

South China Machine Industry Co., Ltd.

Guangdong · Guangzhou

Main Products：Mining equipment and accessories

Enter the store

︿

﹀

Details Parameters

Details Introduction

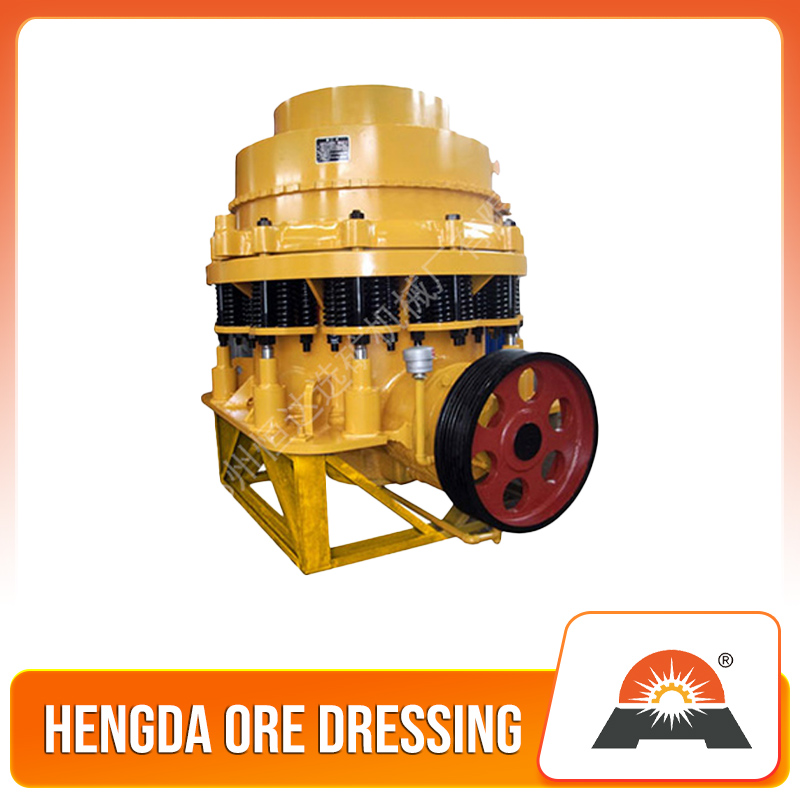

S SPRING CONE CRUSHER SERIES

S Series spring cone crusher is currently the most widely used type of cone crusher, featuring a large crushing ratio and high productivity. Both the standard and short-head models of S Series can operate at full load for crushing. Hydraulic systems provide overload protection, discharge opening adjustment, and automatic cavity clearing - ensuring safe and reliable operation with fast response, convenient operation, and time/labor savings.

PRODUCT FEATURES

1.High processing capacity.

2.Low maintenance cost.

3.High production output.

4.Multiple crushing chamber options, producing uniform particle size with excellent grain shape.

STANDARD PERFORMANCE PARAMETERS

Model	Chamber type	Recommended minimum discharge opening A(mm)	Feed opening A corresponding to recommended minimum discharge opening		Capacity corresponding to discharge opening																Main motor power (KW)
Model	Chamber type	Recommended minimum discharge opening A(mm)	Close side B (mm)	Open side B (mm)	9	13	16	19	22	25	31	38	51	64	76	89	102	110	120	150	Main motor power (KW)
S75B	F	9	83	102	45	59	72	81	91												75
	C	18	159	175		59	72	91	109	118	136	163
	EC	25	163	178						128	147	175	196
S155B	F	13	109	137		109	127	145	154	163	181										185
	M	16	188	210			132	159	172	200	227	253	309
	C	19	216	241				172	195	218	249	295	378
	EC	25	238	259						236	276	324	398	455
S220B	M	16	188	210				198	220	242											220
S220B	C	19	239	260			170	220	242	286	320	363	464	495							220
S240B	F	15	188	209			18	204	227	258	295	327									240
	M	22	213	241					258	290	336	381	437
	C	25	241	269						354	417	454	610
	EC	38	331	368								538	630	743
S400B	F	19	253	278				381	408	499	617	726	852	1036							400
	M	25	303	334						608	726	807	998	1128	1296
	C	31	334	369							789	844	1088	1257	1386	1450
	EC	38	425	460								880	1179	1361	1473	1531	1643	1643	1643	1643
S630B	F	19	275	300				700	825	950	1075	1200									630
	M	25	320	350						1050	1230	1360	1490	1580
	C	60	335	370										1620	1740	1880	2030
	EC	100	435	470													2265	2370	2480	2600

PERFORMANCE PARAMETERS OF THE SHORT HEAD TYPE

Model	Chamber type	Recommended minimum discharge opening A(mm)		Feed opening A corresponding to recommended minimum discharge opening		Capacity corresponding to discharge opening													Main motor power (KW)
						Capacity corresponding to discharge opening
				Close side B(mm)	Open side B(mm)	3		5	6	10	13	16	19	22	25	29	32	38
S75D	F	3		13	41	27		41	54	68	90								75
	C	3		33	60	27		41	54	68	90	100
	EC	6		51	76				59	73	95	113	127
S155D	F	3		29	64	36		59	82	104	136	163							155
	M	6		54	89				82	104	136	163
	C	8		70	105					109	159	181	200	227
	EC	16		98	133								209	236
S220D	F	8		41	76					134	162	203	220						220
S220D	M	13		80	115						165	209	231	253					220
S240D	F	5		35	70			90	136	163	209								240
	M	6		54	89				136	163	209	253	281
	C	10		98	133					190	253	281	308	336
	EC	13		117	133						253	281	308	336
S400D	F	5		51	105			190	270	345	360	408	475	512					400
	M	10		95	133					354	408	454	508	560	613
	C	13		127	178						454	480	540	599	661	685
	EC	16		152	203							508	590	653	680	693	720
S630D	F	10		60	120					806	843	882	916	960	998				630
	M	13		100	150						898	938	974	1006	1039	1072
	C	16		130	190							958	990	1024	1058	1090	1126
	EC	19		160	220								1005	1040	1076	1115	1148	1190
Model			Maximum feed size (mm)				Disalusting port range (mm)					Capacity (t/h)				Maximum power (kW)
S75			150				3-25					24-196				75
S155			220				3-25					36-445				185
S220			220				8-19					134-495				220
S240			270				5-38					90-743				240
S400			370				5-38					190-1643				400
