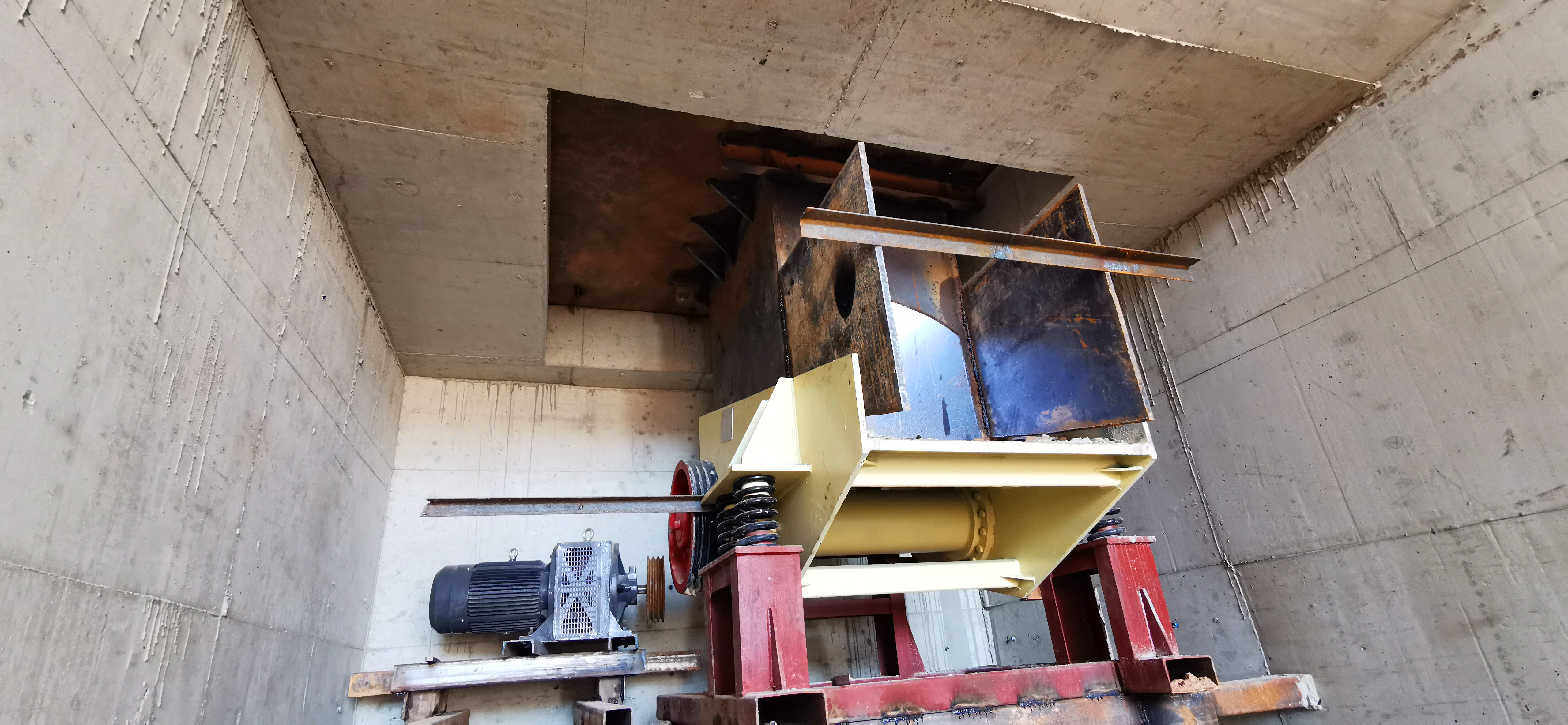

ZW VIBRATION FEEDER SERIES
ZW Vibration Feeder Series is designed to evenly, continuously, and quantitatively feed lump, granular, and powdered materials from storage bins or hoppers into primary jaw crushers, hammer crushers, and impact crushers. It allows for stepless adjustment of the feeding rate and enables centralized and automatic control of the production process, facilitating automation of the production workflow. It is widely used in crushing and screening equipment in industries such as metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives, and more.
PRODUCT FEATURES
1.The structure is simple and reasonable.
2.The feeding is continuous and uniform.
3.The amplitude is strong.
4.Maintenance is convenient.
5.Optional equipment includes comb slots and screening meshes.
TECHNICAL SPECIFICATIONS
|
Model |
Manger size (Width × Length mm) | Maximum feeding size(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) | Overall dimensions(mm) |
| ZW0820 | 800×2000 | ≤200 | 80-200 | 11 | 2.3 | 2200×1120×1500 |
| ZW0940 | 900×4000 | ≤500 | 80-200 | 15 | 3.8 | 4200×1220×2020 |
| ZW1020 | 1000×2000 | ≤250 | 300-400 | 11 | 2.5 | 2200×1320×1500 |
| ZW1220 | 1200×2000 | ≤250 | 350-600 | 15 | 2.8 | 2200×1520×1500 |
| ZW1420 | 1400×2000 | ≤250 | 400-700 | 15 | 3.5 | 2200×1720×1500 |
| ZW1150 | 1100×5000 | ≤600 | 360-550 | 22 | 6 | 5200×1420×2130 |
| ZW1250 | 1200×5000 | ≤700 | 400-600 | 30 | 6.5 | 5200×1520×2360 |
| ZW1260 | 1200×6000 | ≤700 | 400-600 | 37 | 8.6 | 6200×1520×2805 |
| ZW1360 | 1300×6000 | ≤700 | 450-800 | 37 | 8.8 | 6200×1620×2805 |
| ZW1560 | 1500×6000 | ≤900 | 450-1100 | 45 | 11.2 | 6200×1820×2805 |
| ZW1760 | 1700×6000 | ≤1000 | 500-1200 | 45 | 11.8 | 6200×2020×2805 |
| ZW1860 | 1800×6000 | ≤1000 | 550-1300 | 45 | 12 | 6200×2120×2805 |
