I.Scope of application
The JB-type agitator is equipment used for pulp preparation and reagent agitation prior to flotation operations.
II.Structure composition

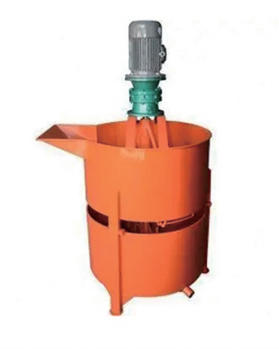

The JB-type stirring tank (barrel) consists of components such as a motor, reducer, bridge frame, tank (barrel) body, stirring shaft and blades.
III.Specifications and Parameters Table
|
Model |
JB - 500 |
JB - 1000 |
JB - 1500 |
JB - 2000 |
JB - 2500 |
JB - 3000 |
JB - 4000 |
|
Tank (Barrel) Diameter (mm) |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
4000 |
|
Effective Volume (m³) |
0.12 |
0.58 |
2.2 |
5.46 |
11.2 |
19.1 |
48.3 |
|
Reducer Model |
BLD-11 |
BLD2-11 |
BLD3-11 |
BLD3-29 |
BLD5-35 |
BLD6-35 |
BLD7-29 |
|
Impeller Diameter (mm) |
Φ150 |
Φ240 |
Φ400 |
Φ550 |
Φ650 |
Φ700 |
Φ1000 |
|
Motor Model |
Y90L-4 |
Y100L-4 |
Y132S-6 |
Y132M2-6 |
Y180L1-6 |
Y200L-6 |
Y225M-6 |
|
Power (kW) |
1.5 |
2.2 |
3 |
5.5 |
15 |
18.5 |
30 |
|
Weight (t) |
0.53 |
0.86 |
0.86 |
1.24 |
3.46 |
4.29 |
9.76 |
