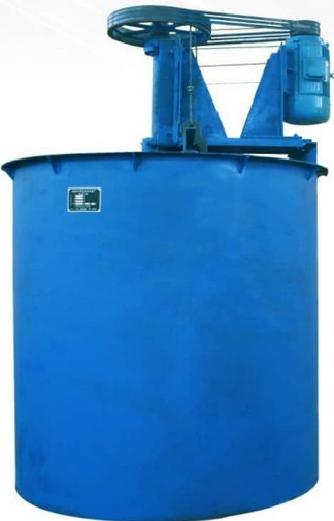

Principle Overview
By rotating the impeller in the groove, the slurry is driven to flow, allowing the mineral particles to fully contact the reagent.
Equipment Features
Large impeller diameter, strong mixing ability for slurry and medicine;
The impeller has a high linear velocity and strong mixing ability for slurry and drugs;
Umbrella shaped impeller enhances the mixing ability of slurry and medicine;
The enhancement of stirring capacity also strengthens the circulation ability of slurry and drugs;
There is a conductive fluid in the groove, and the larger negative pressure reduces it in a limited space, accelerating the suction capacity and making the circulation ability of the medicine and mineral stronger;
The downward operating pressure of the umbrella shaped impeller.
a. The suction and circulation capabilities have been increased, and the lower part of the guide body is equipped with a spray body, further enhancing the circulation capability of the medicine and mineral;
b. Only when the mineral surface is 100% medicated can higher indicators be achieved.
Scope of Use
Used for slurry mixing before flotation operations.
Technical Parameter
Model |
Effective volume (m³) |
Impeller speed (r/min) |
Impeller Diameter (mm) |
Motor Model |
Motor power (kW) |
Weight (kg) |
GBJ-1000×1000 |
0.58 |
530 |
240 |
Y112M-6 |
2.2 |
548 |
GBJ-1250×1250 |
1.15 |
350 |
240 |
Y100L2-4 |
3 |
820 |
GBJ-1500×1500 |
2.2 |
320 |
420 |
Y132M2-6 |
5.5 |
1350 |
GBJ-2000×2000 |
5.46 |
240 |
560 |
Y160M-6 |
7.5 |
3173 |
GBJ-2500×2500 |
11.2 |
232 |
560 |
Y180L-6 |
15 |
3939 |
GBJ-3000×3000 |
19.1 |
220 |
700 |
Y225S-8 |
18.5 |
6676 |
GBJ-3500×3500 |
31 |
248 |
700 |
Y225M-8 |
22 |
7581 |
GBJ-4000×4000 |
45 |
153 |
1000 |
Y250M-8 |
37 |
9560 |
