Details Parameters

Details Introduction

Product Structure: Horizontal

Standard Center Height: H355–H1120 mm

Power Range: 200–23,000 kW

Pole Range: 4P–16P

Rated Voltage: 380–13,800 V

Protection Class: IP44, IP54, IP55

Cooling Methods: IC611, IC616, IC666, IC81W, IC86W

Mounting Type: IM B3

Starting Methods: Full-voltage start, reduced-voltage start, variable-frequency start

Operation Modes: Power-frequency operation, variable-frequency operation

Insulation Thermal Class: Class F, H, C

Applicable Industries

Power, metallurgy, mining, petrochemical, water conservancy, building materials, municipal, research, etc.

Suitable Environments

Relatively clean and dust-free areas with minimal moisture or excessive dust.

Advantages & Features

1. Optimized Electromagnetic Design Reduces Stator Copper Loss

1.1 Advanced insulation structure technology improves lamination utilization, while optimized slot design increases conductive cross-sectional area of copper windings.
1.2 Precision coil manufacturing with advanced equipment shortens winding end length, reducing stator impedance.

2. Reduced Rotor Loss

2.1 Die-cast aluminum rotors use high-purity aluminum ingots and advanced casting processes to minimize porosity and cracks, significantly lowering rotor resistance and aluminum loss.
2.2 Copper-bar rotors employ medium-frequency silver-copper brazing for end-ring welding, ensuring robust joints and reduced contact resistance for optimal motor performance.

3. Reduced Iron Loss

3.1 Finite element analysis (FEA) optimizes magnetic load distribution for peak efficiency.
3.2 High-grade, low-loss cold-rolled silicon steel sheets minimize magnetic losses.
3.3 High-precision punching reduces burrs in laminations; advanced stacking techniques control eddy current losses.

4. Lower Mechanical Loss

4.1 Hybrid roller/ball bearings handle radial and axial loads efficiently, while optimized lubrication reduces friction.
4.2 Computational fluid dynamics (CFD) and thermal analysis refine cooling fan design, maximizing airflow/pressure ratio to cut mechanical losses.

5. Reduced Stray Loss

5.1 Advanced stator wiring schemes suppress high-order harmonics in synthetic magnetic fields, eliminating associated losses.
5.2 Special rotor surface treatment further minimizes stray losses.

6. Insulation System

The motor series features a comprehensively upgraded insulation system, excelling in voltage/temperature resistance, flexural strength, breakdown voltage, and aging tests. Mica tape insulation, processed via CNC winding/taping machines and VPI treatment, ensures reliability, mechanical robustness, and moisture resistance.

YXKK Series (6kV) Asynchronous Motor Technical Data (Design Values)

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK355-2	220	26.6	3000	93.7	0.85	0.6	7.0	1.8	2370
	250	30.2	3000	93.9	0.85	0.6	7.0	1.8	2420
	280	33.7	3000	94.1	0.85	0.6	7.0	1.8	2470
	315	37.9	3000	94.3	0.85	0.6	7.0	1.8	2520
YXKK400-2	355	42	3000	94.6	0.86	0.6	7.0	1.8	2840
	400	47.2	3000	94.9	0.86	0.6	7.0	1.8	2920
	450	53	3000	95.1	0.86	0.6	7.0	1.8	3050
	500	58.8	3000	95.3	0.86	0.6	7.0	1.8	3150
YXKK450-2	560	65.7	3000	95.5	0.86	0.6	7.0	1.8	4200
	630	72.9	3000	95.6	0.87	0.6	7.0	1.8	4520
	710	82.1	3000	95.7	0.87	0.6	7.0	1.8	4830
	800	92.4	3000	95.8	0.87	0.6	7.0	1.8	5150
YXKK500-2	900	103.7	3000	96.0	0.87	0.6	7.0	1.8	5460
	1000	115.3	3000	96.0	0.87	0.6	7.0	1.8	5720
	1120	129	3000	96.1	0.87	0.6	7.0	1.8	5940
	1250	143.8	3000	96.2	0.87	0.6	7.0	1.8	6180
YXKK560-2	1400	159	3000	96.3	0.88	0.6	7.0	1.8	7140
	1600	181.5	3000	96.4	0.88	0.6	7.0	1.8	7250
	1800	204.2	3000	96.4	0.88	0.6	7.0	1.8	7520
YXKK630-2	2000	226.7	3000	96.5	0.88	0.6	7.0	1.8	9930
	2240	253.6	3000	96.6	0.88	0.6	7.0	1.8	10350
	2500	282.8	3000	96.7	0.88	0.6	7.0	1.8	10770
YXKK710-2	2800	316.7	3000	96.7	0.88	0.6	7.0	1.8	14220
	3150	355.9	3000	96.8	0.88	0.6	7.0	1.8	14670
	3550	401.1	3000	96.8	0.88	0.6	7.0	1.8	15150
YXKK355-4	185	22.3	1500	93.9	0.85	0.7	6.5	1.8	2670
	200	24.1	1500	94.0	0.85	0.7	6.5	1.8	2760
	220	26.5	1500	94.1	0.85	0.7	6.5	1.8	2850
	250	30.1	1500	94.2	0.85	0.7	6.5	1.8	2940
	280	33.3	1500	94.4	0.86	0.7	6.5	1.8	3040
YXKK400-4	315	37.3	1500	94.5	0.86	0.7	6.5	1.8	3440
	355	42	1500	94.7	0.86	0.7	6.5	1.8	3540
	400	47.2	1500	94.9	0.86	0.7	6.5	1.8	3670
	450	53	1500	95.1	0.86	0.7	6.5	1.8	3800
	500	58.9	1500	95.1	0.86	0.7	6.5	1.8	3940
YXKK450-4	560	65.8	1500	95.3	0.86	0.7	6.5	1.8	4680
	630	73.9	1500	95.5	0.86	0.7	6.5	1.8	4780
	710	83.2	1500	95.6	0.86	0.7	6.5	1.8	4950
	800	92.4	1500	95.8	0.87	0.7	6.5	1.8	5130

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK500-4	900	103.9	1500	95.9	0.87	0.7	6.5	1.8	6310
	1000	115.3	1500	96.0	0.87	0.7	6.5	1.8	6460
	1120	129.1	1500	96.0	0.87	0.7	6.5	1.8	6690
	1250	142.3	1500	96.1	0.88	0.7	6.5	1.8	6930
YXKK560-4	1400	159.2	1500	96.2	0.88	0.7	6.5	1.8	8280
	1600	181.7	1500	96.3	0.88	0.6	6.5	1.8	8730
	1800	204.2	1500	96.4	0.88	0.6	6.5	1.8	9040
YXKK630-4	2000	226.9	1500	96.4	0.88	0.6	6.5	1.8	11260
	2240	253.9	1500	96.5	0.88	0.6	6.5	1.8	11790
	2500	283	1500	96.6	0.88	0.6	6.5	1.8	12210
YXKK710-4	2800	317	1500	96.6	0.88	0.6	6.5	1.8	13640
	3150	360.4	1500	96.7	0.87	0.5	6.5	1.8	14200
	3550	406.1	1500	96.7	0.87	0.5	6.5	1.8	14730
	4000	457.1	1500	96.8	0.87	0.5	6.5	1.8	15280
YXKK800-4	4500	514.2	1500	96.8	0.87	0.5	6.5	1.8	17400
	5000	564.3	1500	96.9	0.88	0.5	6.5	1.8	18100
	5600	632	1500	96.9	0.88	0.5	6.5	1.8	18800
YXKK900-4	6300	710.3	1500	97.0	0.88	0.5	6.5	1.8	24700
	7100	800.4	1500	97.0	0.88	0.5	6.5	1.8	26000
	8000	901	1500	97.1	0.88	0.5	6.5	1.8	27300
YXKK355-6	185	23	1000	94.5	0.82	0.7	6.0	1.8	2690
	200	24.9	1000	94.6	0.82	0.7	6.0	1.8	2750
	220	27.3	1000	94.6	0.82	0.7	6.0	1.8	2790
YXKK400-6	250	31	1000	94.7	0.82	0.7	6.0	1.8	3640
	280	34.7	1000	94.7	0.82	0.7	6.0	1.8	3970
	315	39	1000	94.8	0.82	0.7	6.0	1.8	4090
	355	43.4	1000	94.9	0.83	0.7	6.0	1.8	4210
YXKK450-6	400	48.9	1000	95.0	0.83	0.7	6.0	1.8	4450
	450	54.9	1000	95.2	0.83	0.7	6.0	1.8	4690
	500	60.8	1000	95.4	0.83	0.7	6.0	1.8	4810
	560	67.2	1000	95.5	0.84	0.7	6.0	1.8	5130
YXKK500-6	630	75.5	1000	95.6	0.84	0.7	6.0	1.8	5440
	710	85	1000	95.8	0.84	0.7	6.0	1.8	5510
	800	95.6	1000	95.9	0.84	0.7	6.0	1.8	5880
	900	106.2	1000	96.0	0.85	0.7	6.0	1.8	6210
YXKK560-6	1000	118	1000	96.0	0.85	0.7	6.0	1.8	7090
	1120	132	1000	96.1	0.85	0.7	6.5	1.8	7350
	1250	145.4	1000	96.2	0.86	0.7	6.5	1.8	7670
YXKK630-6	1400	162.7	1000	96.3	0.86	0.7	6.5	1.8	8890
	1600	185.8	1000	96.4	0.86	0.7	6.5	1.8	9840
	1800	209.0	1000	96.4	0.86	0.7	6.5	1.8	10900
	2000	232	1000	96.5	0.86	0.7	6.5	1.8	11570

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK710-6	2240	259.8	1000	96.5	0.86	0.7	6.5	1.8	14290
	2500	289.6	1000	96.6	0.86	0.6	6.5	1.8	15280
	2800	324	1000	96.7	0.86	0.6	6.5	1.8	15900
	3150	364.5	1000	96.7	0.86	0.6	6.5	1.8	16550
YXKK800-6	3550	410.8	1000	96.7	0.86	0.6	6.5	1.8	18920
	4000	462.4	1000	96.8	0.86	0.6	6.5	1.8	19590
	4500	520.2	1000	96.8	0.86	0.6	6.5	1.8	20270
YXKK900-6	5000	577.4	1000	96.9	0.86	0.6	6.5	1.8	22850
	5600	639.3	1000	96.9	0.87	0.6	6.5	1.8	23540
	6300	718.4	1000	97.0	0.87	0.6	6.5	1.8	24270
YXKK1000-6	7100	808.8	1000	97.1	0.87	0.6	6.5	1.8	32500
	8000	911.3	1000	97.1	0.87	0.6	6.5	1.8	34120
	9000	1024.2	1000	97.2	0.87	0.6	6.5	1.8	35900
	10000	1136.8	1000	97.3	0.87	0.6	6.5	1.8	37790
YXKK400-8	185	24.3	750	93.9	0.78	0.8	5.5	1.8	3250
	200	26.3	750	94.0	0.78	0.8	5.5	1.8	3450
	220	28.9	750	94.1	0.78	0.8	5.5	1.8	3680
	250	32.4	750	94.2	0.79	0.8	5.5	1.8	3820
YXKK450-8	280	36.2	750	94.4	0.79	0.8	5.5	1.8	4400
	315	40.6	750	94.5	0.79	0.8	5.5	1.8	4530
	355	45.7	750	94.7	0.79	0.8	5.5	1.8	4680
	400	50.7	750	94.9	0.80	0.8	5.5	1.8	4850
YXKK500-8	450	57	750	95.0	0.80	0.8	5.5	1.8	5410
	500	63.2	750	95.3	0.80	0.8	5.5	1.8	5650
	560	70.6	750	95.5	0.80	0.8	5.5	1.8	5780
	630	77.4	750	95.6	0.82	0.8	5.5	1.8	6170
YXKK560-8	710	87.2	750	95.6	0.82	0.8	5.5	1.8	7270
	800	98.1	750	95.7	0.82	0.7	6.0	1.8	7500
	900	107.7	750	95.8	0.84	0.7	6.0	1.8	7750
YXKK630-8	1000	119.5	750	95.9	0.84	0.7	6.0	1.8	9950
	1120	133.7	750	96.0	0.84	0.7	6.0	1.8	10740
	1250	149.2	750	96.0	0.84	0.7	6.0	1.8	11170
	1400	166.9	750	96.1	0.84	0.7	6.0	1.8	11600
YXKK710-8	1600	190.6	750	96.2	0.84	0.7	6.0	1.8	12200
	1800	211.9	750	96.2	0.85	0.6	6.5	1.8	13890
	2000	235.2	750	96.3	0.85	0.6	6.5	1.8	14500
	2240	263.1	750	96.4	0.85	0.6	6.5	1.8	15110
YXKK800-8	2500	293.3	750	96.5	0.85	0.6	6.5	1.8	19000
	2800	328.2	750	96.6	0.85	0.6	6.5	1.8	19700
	3150	369.2	750	96.6	0.85	0.6	6.5	1.8	20500

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK900-8	3550	415.7	750	96.7	0.85	0.6	6.5	1.8	22900
	4000	462.4	750	96.8	0.86	0.6	6.5	1.8	23720
	4500	519.7	750	96.9	0.86	0.6	6.5	1.8	24560
YXKK1000-8	5000	577.4	750	96.9	0.86	0.6	6.5	1.8	27300
	5600	646.7	750	96.9	0.86	0.6	6.5	1.8	28200
	6300	726.8	750	97.0	0.86	0.6	6.5	1.8	29300
	7100	818.2	750	97.1	0.86	0.6	6.5	1.8	30500
	8000	921	750	97.2	0.86	0.6	6.5	1.8	31600
YXKK400-10	185	25.3	600	93.8	0.75	0.8	5.5	1.8	3700
	200	27.4	600	93.9	0.75	0.8	5.5	1.8	3880
	220	30.1	600	93.9	0.75	0.8	5.5	1.8	4110
YXKK450-10	250	34.2	600	94.0	0.75	0.8	5.5	1.8	4550
	280	38.3	600	94.0	0.75	0.8	5.5	1.8	4660
	315	42.4	600	94.1	0.76	0.8	5.5	1.8	4780
YXKK500-10	355	47.8	600	94.2	0.76	0.8	5.5	1.8	5200
	400	53.8	600	94.3	0.76	0.8	5.5	1.8	5540
	450	60.3	600	94.5	0.76	0.8	5.5	1.8	5780
	500	65.3	600	94.6	0.78	0.8	5.5	1.8	6040
YXKK560-10	560	73	600	94.7	0.78	0.8	5.5	1.8	7720
	630	81.9	600	94.9	0.78	0.7	6.0	1.8	7900
	710	92.2	600	95.1	0.78	0.7	6.0	1.8	8160
	800	100.9	600	95.4	0.80	0.7	6.0	1.8	8550
YXKK630-10	900	113.3	600	95.6	0.80	0.7	6.0	1.8	11070
	1000	125.9	600	95.6	0.80	0.7	6.0	1.8	11500
	1120	140.8	600	95.7	0.80	0.7	6.0	1.8	11890
YXKK710-10	1250	157.2	600	95.7	0.80	0.7	6.0	1.8	12320
	1400	171.7	600	95.7	0.82	0.6	6.0	1.8	13700
	1600	196.2	600	95.7	0.82	0.6	6.0	1.8	14200
	1800	220.5	600	95.8	0.82	0.6	6.0	1.8	15000
YXKK800-10	2000	241.8	600	95.9	0.83	0.6	6.0	1.8	17900
	2240	270.6	600	96.0	0.83	0.6	6.0	1.8	18700
	2500	302	600	96.0	0.83	0.6	6.0	1.8	19650
YXKK900-10	2800	337.8	600	96.1	0.83	0.6	6.0	1.8	23000
	3150	375.2	600	96.2	0.84	0.6	6.0	1.8	23960
	3550	422.4	600	96.3	0.84	0.6	6.0	1.8	24950
	4000	475.4	600	96.4	0.84	0.6	6.0	1.8	26100
YXKK1000-10	4500	534.8	600	96.4	0.84	0.6	6.0	1.8	29500
	5000	593.6	600	96.5	0.84	0.6	6.0	1.8	31750
	5600	664.1	600	96.6	0.84	0.6	6.0	1.8	32900
	6300	745.6	600	96.8	0.84	0.6	6.0	1.8	34120

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK450-12	185	27.2	500	93.5	0.70	0.8	5.5	1.8	4750
	200	29.4	500	93.6	0.70	0.8	5.5	1.8	4900
	220	31.4	500	93.7	0.72	0.8	5.5	1.8	5070
YXKK500-12	250	35.7	500	93.8	0.72	0.8	5.5	1.8	5230
	280	39.9	500	94.0	0.72	0.8	5.5	1.8	5650
	315	44.8	500	94.1	0.72	0.8	5.5	1.8	5840
	355	49	500	94.3	0.74	0.8	5.5	1.8	6050
YXKK560-12	400	55.1	500	94.5	0.74	0.8	5.5	1.8	6270
	450	61.9	500	94.6	0.74	0.7	6.0	1.8	7850
	500	68.6	500	94.8	0.74	0.7	6.0	1.8	8060
	560	74.8	500	94.9	0.76	0.7	6.0	1.8	8250
YXKK630-12	630	84	500	95.0	0.76	0.7	6.0	1.8	8520
	710	94.6	500	95.1	0.76	0.7	6.0	1.8	9950
	800	106.3	500	95.3	0.76	0.7	6.0	1.8	10500
YXKK710-12	900	119.5	500	95.4	0.76	0.7	6.0	1.8	11080
	1000	129.2	500	95.5	0.78	0.6	6.0	1.8	13100
	1120	144.7	500	95.5	0.78	0.6	6.0	1.8	13750
	1250	161.4	500	95.6	0.78	0.6	6.0	1.8	14450
	1400	178.2	500	95.7	0.79	0.6	6.0	1.8	15100
YXKK800-12	1600	201.2	500	95.7	0.80	0.6	6.0	1.8	18750
	1800	226.1	500	95.8	0.80	0.6	6.0	1.8	19690
	2000	250.9	500	95.9	0.80	0.6	6.0	1.8	20680
YXKK900-12	2240	280.7	500	96.0	0.80	0.6	6.0	1.8	22100
	2500	309.1	500	96.1	0.81	0.6	6.0	1.8	23200
	2800	345.8	500	96.2	0.81	0.6	6.0	1.8	24370
YXKK1000-12	3150	388.6	500	96.3	0.81	0.6	6.0	1.8	25500
	3550	437.5	500	96.4	0.81	0.6	6.0	1.8	26780
	4000	493	500	96.4	0.81	0.6	6.0	1.8	28120
	4500	554.6	500	96.4	0.81	0.6	6.0	1.8	29520
YXKK710-16	630	88	500	94.4	0.73	0.6	6.0	1.8	12850
	710	99.1	500	94.5	0.73	0.6	6.0	1.8	13500
	800	111.5	500	94.6	0.73	0.6	6.0	1.8	14170
	900	125.3	500	94.7	0.73	0.6	6.0	1.8	14880
YXKK800-16	1000	137.2	500	94.8	0.74	0.6	6.0	1.8	19950
	1120	153.5	500	94.9	0.74	0.6	6.0	1.8	20950
	1250	171.2	500	95	0.74	0.6	6.0	1.8	22000
YXKK900-16	1400	191.5	500	95.1	0.74	0.6	6.0	1.8	23300
	1600	215.9	500	95.1	0.75	0.6	6.0	1.8	24500
	1800	242.6	500	95.2	0.75	0.6	6.0	1.8	25700
	2000	269.3	500	95.3	0.75	0.6	6.0	1.8	26980
YXKK1000-16	2240	301.3	500	95.4	0.75	0.6	6.0	1.8	32750
	2500	335.9	500	95.5	0.75	0.6	6.0	1.8	34400
	2800	375.8	500	95.6	0.75	0.6	6.0	1.8	36150
	3150	417.2	500	95.6	0.76	0.6	6.0	1.8	38000

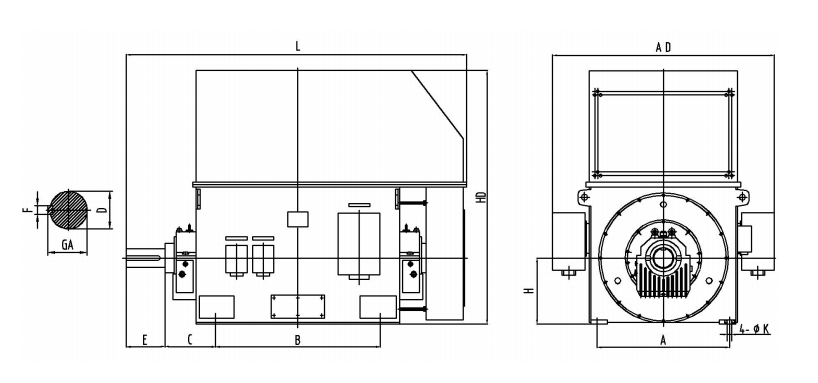

YXKK High-Voltage Three-Phase Asynchronous Motor (6kV)Outline and Installation Dimensions Diagram

Frame Size	Poles	Mounting Dimensions									Overall Dimensions
Frame Size	Poles	A	B	C	D	E	F	GA	H	K	AD	HD	L
355	2	630	900	315	80	170	22	71	355	28	1028	1420	2030
355	4	630	900	315	100	210	28	90	355	28	1028	1420	2070
400	2	710	1000	375	90	170	25	81	400	35	1078	1460	2220
400	4～10	710	1000	335	110	210	28	100	400	35	1078	1460	2250
450	2	800	1120	400	100	210	28	90	450	35	1118	1660	2460
	4	800	1120	355	120	210	32	109	450	35	1118	1660	2210
	6～12	800	1120	355	130	250	32	119	450	35	1118	1660	2260
500	2	900	1250	560	110	210	28	100	500	42	1188	1860	2650
	4	900	1250	475	130	250	32	119	500	42	1188	1860	2550
	6～18	900	1250	475	140	250	36	128	500	42	1188	1860	2550
560	2	1000	1400	560	130	250	32	119	560	42	1238	2120	2800
	4	1000	1400	500	150	250	36	138	560	42	1238	2120	2700
	6～18	1000	1400	500	160	300	40	147	560	42	1238	2120	2700
630	4	1120	1600	530	170	300	40	157	630	48	1258	2250	3170
630	6～18	1120	1600	530	180	300	45	165	630	48	1258	2250	3170
710	2	1400	1800	530	200	350	45	210	710	56	2620	2800	3550
	4	1400	1800	530	200	350	45	210	710	56	2620	2800	3550
	6～16	1400	1800	530	200	350	45	210	710	56	2620	2800	3550
800	4	1600	2000	530	220	350	50	231	800	56	2900	3400	3800
800	6～16	1600	2000	530	220	350	50	231	800	56	2900	3400	3800
900	4	1800	2240	600	250	410	56	262	900	66	3100	3600	4650
900	6～16	1800	2240	600	250	410	56	262	900	66	3100	3600	4650
1000	4	2000	2500	600	280	470	63	292	1000	66	3300	3800	4950
1000	6～16	2000	2500	600	280	470	63	292	1000	66	3300	3800	4950
1120	4	2240	2800	630	320	470	70	334	1120	74	3650	4250	5250
1120	6～16	2240	2800	630	320	470	70	334	1120	74	3650	4250	5250

Note: Due to continuous technical improvements and updates to domestic/international standards, dimensions and technical parameters in this document are subject to change without prior notice. For orders, the final dimensions shall be based on the mutually confirmed outline drawings.

YXKK Series (10kV) Asynchronous Motor Technical Data (Design Values)

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK450-2	220	16	3000	93.8	0.85	0.6	7.0	1.8	3950
	250	18.1	3000	93.9	0.85	0.6	7.0	1.8	4040
	280	20.2	3000	94.2	0.85	0.6	7.0	1.8	4100
	315	22.7	3000	94.4	0.85	0.6	7.0	1.8	4200
	355	25.2	3000	94.7	0.86	0.6	7.0	1.8	4260
	400	28.3	3000	94.9	0.86	0.6	7.0	1.8	4420
	450	31.8	3000	95.1	0.86	0.6	7.0	1.8	4520
YXKK500-2	500	35.3	3000	95.2	0.86	0.6	7.0	1.8	4640
	560	39.5	3000	95.3	0.86	0.6	7.0	1.8	4730
	630	43.9	3000	95.3	0.87	0.6	7.0	1.8	4950
	710	49.4	3000	95.4	0.87	0.6	7.0	1.8	5100
	800	55.6	3000	95.5	0.87	0.6	7.0	1.8	5170
YXKK560-2	900	62.5	3000	95.6	0.87	0.6	7.0	1.8	8370
	1000	69.4	3000	95.7	0.87	0.6	7.0	1.8	8640
	1120	77.6	3000	95.8	0.87	0.6	7.0	1.8	8910
	1250	86.5	3000	96.0	0.87	0.6	7.0	1.8	9250
YXKK630-2	1400	95.6	3000	96.1	0.88	0.6	7.0	1.8	10480
	1600	109.3	3000	96.1	0.88	0.6	7.0	1.8	10910
	1800	122.8	3000	96.2	0.88	0.6	7.0	1.8	11340
	2000	136.3	3000	96.3	0.88	0.6	7.0	1.8	12000
YXKK710-2	2240	152.3	3000	96.5	0.88	0.6	7.0	1.8	14580
	2500	169.6	3000	96.7	0.88	0.6	7.0	1.8	15120
	2800	189.5	3000	97.0	0.88	0.6	7.0	1.8	16740
	3150	212.5	3000	97.3	0.88	0.6	7.0	1.8	18700
YXKK450-4	280	20.1	1500	93.9	0.86	0.7	6.5	1.8	3650
	315	22.5	1500	94.1	0.86	0.7	6.5	1.8	3700
	355	25.3	1500	94.3	0.86	0.7	6.5	1.8	4250
	400	28.5	1500	94.4	0.86	0.7	6.5	1.8	4350
	450	31.9	1500	94.8	0.86	0.7	6.5	1.8	4500
YXKK500-4	500	35.5	1500	94.8	0.86	0.7	6.5	1.8	5580
	560	39.6	1500	95.0	0.86	0.7	6.5	1.8	5650
	630	44.5	1500	95.2	0.86	0.7	6.5	1.8	5700
	710	49.9	1500	95.7	0.86	0.7	6.5	1.8	5830
	800	55.5	1500	95.7	0.87	0.7	6.5	1.8	6030
	900	62.4	1500	95.8	0.87	0.7	6.5	1.8	6150
YXKK560-4	1000	69.3	1500	95.9	0.87	0.7	6.5	1.8	7020
	1120	77.5	1500	96.0	0.87	0.7	6.5	1.8	7350
	1250	85.4	1500	96.1	0.88	0.7	6.5	1.8	7650
YXKK630-4	1400	95.5	1500	96.2	0.88	0.7	6.5	1.8	9850
	1600	109.1	1500	96.3	0.88	0.6	6.5	1.8	10710
	1800	122.6	1500	96.4	0.88	0.6	6.5	1.8	11040
YXKK710-4	2000	136	1500	96.5	0.88	0.6	6.5	1.8	11370
	2240	152.2	1500	96.6	0.88	0.6	6.5	1.8	11900
	2500	169.8	1500	96.6	0.88	0.6	6.5	1.8	13400
	2800	190.2	1500	96.6	0.88	0.6	6.5	1.8	13950

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK800-4	3150	216.2	1500	96.7	0.87	0.5	6.5	1.8	14900
	3550	243.7	1500	96.7	0.87	0.5	6.5	1.8	15800
	4000	274.6	1500	96.7	0.87	0.5	6.5	1.8	17200
YXKK900-4	4500	308.9	1500	96.7	0.87	0.5	6.5	1.8	22400
	5000	338.9	1500	96.8	0.88	0.5	6.5	1.8	23500
	5600	379.6	1500	96.8	0.88	0.5	6.5	1.8	24600
YXKK1000-4	6300	427.1	1500	96.8	0.88	0.5	6.5	1.8	29500
	7100	480.8	1500	96.9	0.88	0.5	6.5	1.8	32150
	8000	541.2	1500	97.0	0.88	0.5	6.5	1.8	34500
YXKK450-6	220	16.6	1000	93.6	0.82	0.7	6.0	1.8	4150
	250	18.8	1000	93.7	0.82	0.7	6.0	1.8	4290
	280	21	1000	93.9	0.82	0.7	6.0	1.8	4500
	315	23.6	1000	94.0	0.82	0.7	6.0	1.8	4650
	355	26.3	1000	94.2	0.83	0.7	6.0	1.8	4820
YXKK500-6	400	29.5	1000	94.4	0.83	0.7	6.0	1.8	5570
	450	33.2	1000	94.5	0.83	0.7	6.0	1.8	5700
	500	36.7	1000	94.9	0.83	0.7	6.0	1.8	5890
	560	40.6	1000	95.0	0.84	0.7	6.0	1.8	6100
	630	45.5	1000	95.3	0.84	0.7	6.0	1.8	6320
YXKK560-6	710	51.2	1000	95.4	0.84	0.7	6.0	1.8	7750
	800	57.6	1000	95.5	0.84	0.7	6.0	1.8	8070
	900	63.9	1000	95.7	0.85	0.7	6.0	1.8	8380
	1000	71	1000	95.8	0.85	0.7	6.0	1.8	8700
YXKK630-6	1120	79.3	1000	96.0	0.85	0.7	6.5	1.8	10950
	1250	87.5	1000	96.0	0.86	0.7	6.5	1.8	11300
	1400	97.7	1000	96.3	0.86	0.7	6.5	1.8	11750
	1600	111.5	1000	96.4	0.86	0.7	6.5	1.8	12220
YXKK710-6	1800	125.4	1000	96.4	0.86	0.7	6.5	1.8	14310
	2000	139.3	1000	96.4	0.86	0.7	6.5	1.8	15050
	2240	156.1	1000	96.4	0.86	0.7	6.5	1.8	15650
	2500	174.2	1000	96.4	0.86	0.6	6.5	1.8	16280
	2800	194.8	1000	96.5	0.86	0.6	6.5	1.8	16950
YXKK800-6	3150	219.2	1000	96.5	0.86	0.6	6.5	1.8	20500
	3550	246.8	1000	96.6	0.86	0.6	6.5	1.8	21500
	4000	277.8	1000	96.7	0.86	0.6	6.5	1.8	22800
YXKK900-6	4500	312.5	1000	96.7	0.86	0.6	6.5	1.8	27500
	5000	347.2	1000	96.7	0.86	0.6	6.5	1.8	28400
	5600	384.4	1000	96.7	0.87	0.6	6.5	1.8	30500
YXKK1000-6	6300	432	1000	96.8	0.87	0.6	6.5	1.8	32500
	7100	486.3	1000	96.9	0.87	0.6	6.5	1.8	34000
	8000	547.4	1000	97.0	0.87	0.6	6.5	1.8	35700
	9000	615.2	1000	97.1	0.87	0.6	6.5	1.8	37400
YXKK500-8	220	18.1	750	90.0	0.78	0.8	5.5	1.8	5250
YXKK500-8	250	19.4	750	94.2	0.79	0.8	5.5	1.8	5400

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK500-8	280	21.8	750	94.2	0.79	0.8	5.5	1.8	5650
	315	24.5	750	94.3	0.79	0.8	5.5	1.8	5700
	355	27.5	750	94.4	0.79	0.8	5.5	1.8	5750
	400	30.6	750	94.5	0.80	0.8	5.5	1.8	5800
YXKK560-8	450	34.4	750	94.6	0.80	0.8	5.5	1.8	7660
	500	38	750	95.0	0.80	0.8	5.5	1.8	8050
	560	42.5	750	95.1	0.80	0.8	5.5	1.8	8300
	630	46.5	750	95.5	0.82	0.8	5.5	1.8	8450
	710	52.3	750	95.6	0.82	0.8	5.5	1.8	8650
YXKK630-8	800	58.9	750	95.7	0.82	0.7	6.0	1.8	10400
	900	64.6	750	95.8	0.84	0.7	6.0	1.8	11000
	1000	71.6	750	96.0	0.84	0.7	6.0	1.8	11550
	1120	80.2	750	96.1	0.84	0.7	6.0	1.8	12170
YXKK710-8	1250	89.4	750	96.2	0.84	0.7	6.0	1.8	14080
	1400	100.1	750	96.2	0.84	0.7	6.0	1.8	14600
	1600	114.4	750	96.2	0.84	0.7	6.0	1.8	15250
	1800	127.1	750	96.2	0.85	0.6	6.5	1.8	15920
	2000	141.3	750	96.2	0.85	0.6	6.5	1.8	16610
YXKK800-8	2240	158.2	750	96.2	0.85	0.6	6.5	1.8	20500
	2500	176.4	750	96.3	0.85	0.6	6.5	1.8	21300
	2800	197.3	750	96.4	0.85	0.6	6.5	1.8	22100
YXKK900-8	3150	222	750	96.4	0.85	0.6	6.5	1.8	24500
	3550	249.9	750	96.5	0.85	0.6	6.5	1.8	25200
	4000	278	750	96.6	0.86	0.6	6.5	1.8	25950
YXKK1000-8	4500	312.5	750	96.7	0.86	0.6	6.5	1.8	28500
	5000	346.8	750	96.8	0.86	0.6	6.5	1.8	29600
	5600	388	750	96.9	0.86	0.6	6.5	1.8	30720
	6300	436.5	750	96.9	0.86	0.6	6.5	1.8	31850
	7100	491.5	750	97.0	0.86	0.6	6.5	1.8	33000
YXKK500-10	220	18.2	600	93.5	0.75	0.8	5.5	1.8	5750
	250	20.6	600	93.6	0.75	0.8	5.5	1.8	5950
	280	23	600	93.8	0.75	0.8	5.5	1.8	6150
YXKK560-10	315	25.5	600	94.0	0.76	0.8	5.5	1.8	6360
	355	28.7	600	94.2	0.76	0.8	5.5	1.8	6580
	400	32.3	600	94.3	0.76	0.8	5.5	1.8	7750
	450	36.2	600	94.5	0.76	0.8	5.5	1.8	8100
	500	39.2	600	94.6	0.78	0.8	5.5	1.8	8490
YXKK630-10	560	43.8	600	94.7	0.78	0.8	5.5	1.8	8900
	630	49.2	600	94.9	0.78	0.7	6.0	1.8	9350
	710	55.3	600	95.1	0.78	0.7	6.0	1.8	11500
	800	60.6	600	95.4	0.80	0.7	6.0	1.8	11900
YXKK710-10	900	68	600	95.6	0.80	0.7	6.0	1.8	12350
	1000	75.5	600	95.6	0.80	0.7	6.0	1.8	12700
	1120	84.5	600	95.7	0.80	0.7	6.0	1.8	13550
	1250	94.3	600	95.7	0.80	0.7	6.0	1.8	13950
	1400	103.1	600	95.7	0.82	0.6	6.0	1.8	14400
	1600	117.8	600	95.7	0.82	0.6	6.0	1.8	14900

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Weight(kg)
YXKK800-10	1800	132.3	600	95.8	0.82	0.6	6.0	1.8	20000
	2000	145.1	600	95.9	0.83	0.6	6.0	1.8	20700
	2240	162.4	600	96.0	0.83	0.6	6.0	1.8	21450
YXKK900-10	2500	181	600	96.1	0.83	0.6	6.0	1.8	24250
	2800	202.5	600	96.2	0.83	0.6	6.0	1.8	25200
	3150	224.9	600	96.3	0.84	0.6	6.0	1.8	26200
YXKK1000-10	3550	253.2	600	96.4	0.84	0.6	6.0	1.8	28000
	4000	285.3	600	96.4	0.84	0.6	6.0	1.8	29200
	4500	320.9	600	96.4	0.84	0.6	6.0	1.8	30500
	5000	356.2	600	96.5	0.84	0.6	6.0	1.8	32000
YXKK560-12	220	19	500	93.1	0.72	0.8	5.5	1.8	7300
	250	21.5	500	93.5	0.72	0.8	5.5	1.8	7450
	280	24.1	500	93.5	0.72	0.8	5.5	1.8	7800
	315	27	500	93.7	0.72	0.8	5.5	1.8	8100
	355	29.5	500	93.9	0.74	0.8	5.5	1.8	8400
	400	33.2	500	94.1	0.74	0.8	5.5	1.8	8750
YXKK630-12	450	37.3	500	94.2	0.74	0.7	6.0	1.8	10900
	500	41.3	500	94.5	0.74	0.7	6.0	1.8	11300
	560	45	500	94.7	0.76	0.7	6.0	1.8	11750
	630	50.5	500	94.9	0.76	0.7	6.0	1.8	12150
YXKK710-12	710	56.8	500	95.1	0.76	0.7	6.0	1.8	13070
	800	63.8	500	95.3	0.76	0.7	6.0	1.8	13700
	900	71.8	500	95.3	0.76	0.7	6.0	1.8	14200
	1000	77.7	500	95.3	0.78	0.6	6.0	1.8	14700
	1120	87	500	95.3	0.78	0.6	6.0	1.8	15250
	1250	97.1	500	95.3	0.78	0.6	6.0	1.8	15750
YXKK800-12	1400	107.3	500	95.4	0.79	0.6	6.0	1.8	21500
	1600	121	500	95.5	0.80	0.6	6.0	1.8	22600
	1800	135.9	500	95.6	0.80	0.6	6.0	1.8	23500
YXKK900-12	2000	151	500	95.6	0.80	0.6	6.0	1.8	24300
	2240	169	500	95.7	0.80	0.6	6.0	1.8	25100
	2500	186.1	500	95.8	0.81	0.6	6.0	1.8	26000
YXKK1000-12	2800	208.2	500	95.9	0.81	0.6	6.0	1.8	26900
	3150	233.9	500	96.0	0.81	0.6	6.0	1.8	28000
	3550	263.6	500	96.0	0.81	0.6	6.0	1.8	30000
YXKK710-16	630	52.8	500	94.5	0.73	0.6	6.0	1.8	14000
	710	59.4	500	94.6	0.73	0.6	6.0	1.8	14500
	800	66.9	500	94.6	0.73	0.6	6.0	1.8	14550
YXKK800-16	900	75.2	500	94.7	0.73	0.6	6.0	1.8	21500
	1000	82.4	500	94.8	0.74	0.6	6.0	1.8	22300
	1120	92.1	500	94.9	0.74	0.6	6.0	1.8	23100
YXKK900-16	1250	102.7	500	95.0	0.74	0.6	6.0	1.8	24000
	1400	114.9	500	95.1	0.74	0.6	6.0	1.8	24900
	1600	129.6	500	95.1	0.75	0.6	6.0	1.8	25800
	1800	145.6	500	95.2	0.75	0.6	6.0	1.8	26700
YXKK1000-16	2000	161.6	500	95.3	0.75	0.6	6.0	1.8	29000
	2240	180.8	500	95.4	0.75	0.6	6.0	1.8	30000
	2500	201.6	500	95.5	0.75	0.6	6.0	1.8	31200
	2800	225.5	500	95.6	0.75	0.6	6.0	1.8	32500

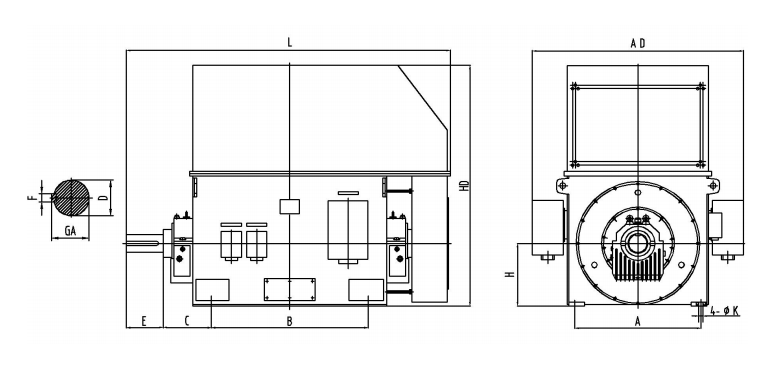

YXKK High-Voltage Three-Phase Asynchronous Motor (10kV)Outline and Installation Dimensions Diagram

Frame Size	Poles	Mounting Dimensions									Overall Dimensions
Frame Size	Poles	A	B	C	D	E	F	GA	H	K	AD	HD	L
450	4	800	1120	355	110	210	28	100	450	35	1050	1850	2600
450	6	800	1120	355	110	210	28	100	450	35	1050	1850	2600
500	4	900	1250	475	120	210	32	109	500	42	1110	2000	3000
500	6～10	900	1250	475	130	250	32	119	500	42	1110	2000	3000
560	4	1000	1400	500	150	250	36	138	560	42	1200	2150	3400
560	6～12	1000	1400	500	160	300	40	147	560	42	1200	2150	3400
630	4	1120	1600	530	170	300	40	157	630	48	1300	2350	3600
630	6～12	1120	1600	530	180	300	45	165	630	48	1300	2350	3600
710	4	1400	1800	530	200	350	45	210	710	56	2620	2800	3550
710	6～16	1400	1800	530	200	350	45	210	710	56	2620	2800	3550
800	4	1600	2000	530	220	350	50	231	800	56	2900	3400	3800
800	6～16	1600	2000	530	220	350	50	231	800	56	2900	3400	3800
900	4	1800	2240	600	250	410	56	262	900	66	3100	3600	4650
900	6～16	1800	2240	600	250	410	56	262	900	66	3100	3600	4650
1000	4	2000	2500	600	280	470	63	292	1000	66	3300	3800	4950
1000	6～16	2000	2500	600	280	470	63	292	1000	66	3300	3800	4950
1120	4	2240	2800	630	320	470	70	334	1120	74	3650	4250	5250
1120	6～16	2240	2800	630	320	470	70	334	1120	74	3650	4250	5250
