TM Series Synchronous Motors for Grinding Mill Applications

Model：

TMW4800-30G

Rated Speed：

200r/min

Rated Power：

4800kW

Application Scope：

Mining

COLLECT

Shenyang Electric Machine Group Electric Machine Manufacture Co., Ltd.

Liaoning · Shenyang

Main Products：The company's main products include high-voltage, low-voltage, synchronous, asynchronous, 50 Hz, 60 Hz, standard, and special-environment motors with a center height of 315mm and above, covering 48 series, 176 varieties, and over 2,100 specifications. These include high-power energy-efficient motors, synchronous increased-safety motors, asynchronous increased-safety motors, explosion-proof motors, and small-to-medium-sized steam turbine generators.

Enter the store

︿

﹀

Details Parameters

Details Introduction

Product Structure: Horizontal

Standard Center Height: H630 mm

Standard Frame Size: φ1730-φ4250 mm

Power Range: 250-8000 kW

Pole Range: 30P-60P

Rated Voltage: 3000-10000 V

Protection Class: IP20, IP23, IP44, IP54, IP55

Cooling Methods: IC01, IC86W, IC37

Mounting Types: IM7311, IM7315

Excitation Systems:

Brushed type - with static excitation cabinet
Brushless type - with rotating rectifier and static excitation cabinet

Starting Methods: Full-voltage start, Reduced-voltage starting, Variable frequency starting, No-load starting (with pneumatic clutch)

Operation Modes: Power-frequency operation, Variable-frequency operation

Insulation Class: Class F

Equipped with base plate and pedestal sliding bearings

Applicable Industries

Mining

Suitable Environments

Various non-explosive hazardous areas

TMW Series Synchronous Motor Technical Data (Design Values)

Type	Rated Power (kW)	Rated Voltage( kV)	Rated Current (A)	Rated Speed (r/min)	Power Factor (Leading)	Efficiency (%)	Locked-Rotor Torque Multiple	Nominal Pull-In Torque Multiple	Pull-Out Torque Multiple	Locked-Rotor Current Multiple	Rated excitation voltage (V)	Rated excitation current (A)	Protection Class	Weight(kg)	Notes
TMW1600-30	1600	6	203	200	0.9	94.6	0.84	0.98	2.43	4.6	106	289	IP21	25900	Shaft Drilling
TMW1950-30	1950	10	132	200	0.9	95.23	1.14	0.83	2.13	4.54	97	267	IP54	31200	Shaft Drilling
TMW2000-30	2000	6	264	200	0.9	95.27	0.68	0.74	2.22	3.78	125	264	IP21	28150	Shaft Drilling
TMW2600-30	2600	6	291	200	0.9	95.7	0.69	0.76	2.2	3.88	133	261	IP20	32000	Shaft Drilling
TMW2600-30	2600	10	176	200	0.9	95.5	0.8	0.88	2.2	4.42	132	269	IP20	36000	Shaft Drilling
TMW3000-30	3000	6	336	200	0.9	95.9	0.68	0.77	2.15	3.88	147	252	IP20	36300	Shaft Drilling
TMW3000-30	3000	10	203	200	0.9	95.27	0.7	0.71	2.13	3.86	139	292	IP21	39000	Shaft Drilling
TMW4800-30G	4800	10	535	200	0.9	96.35	0.72	0.77	2.07	3.93	148	295	IP44	45000	Shaft Drilling

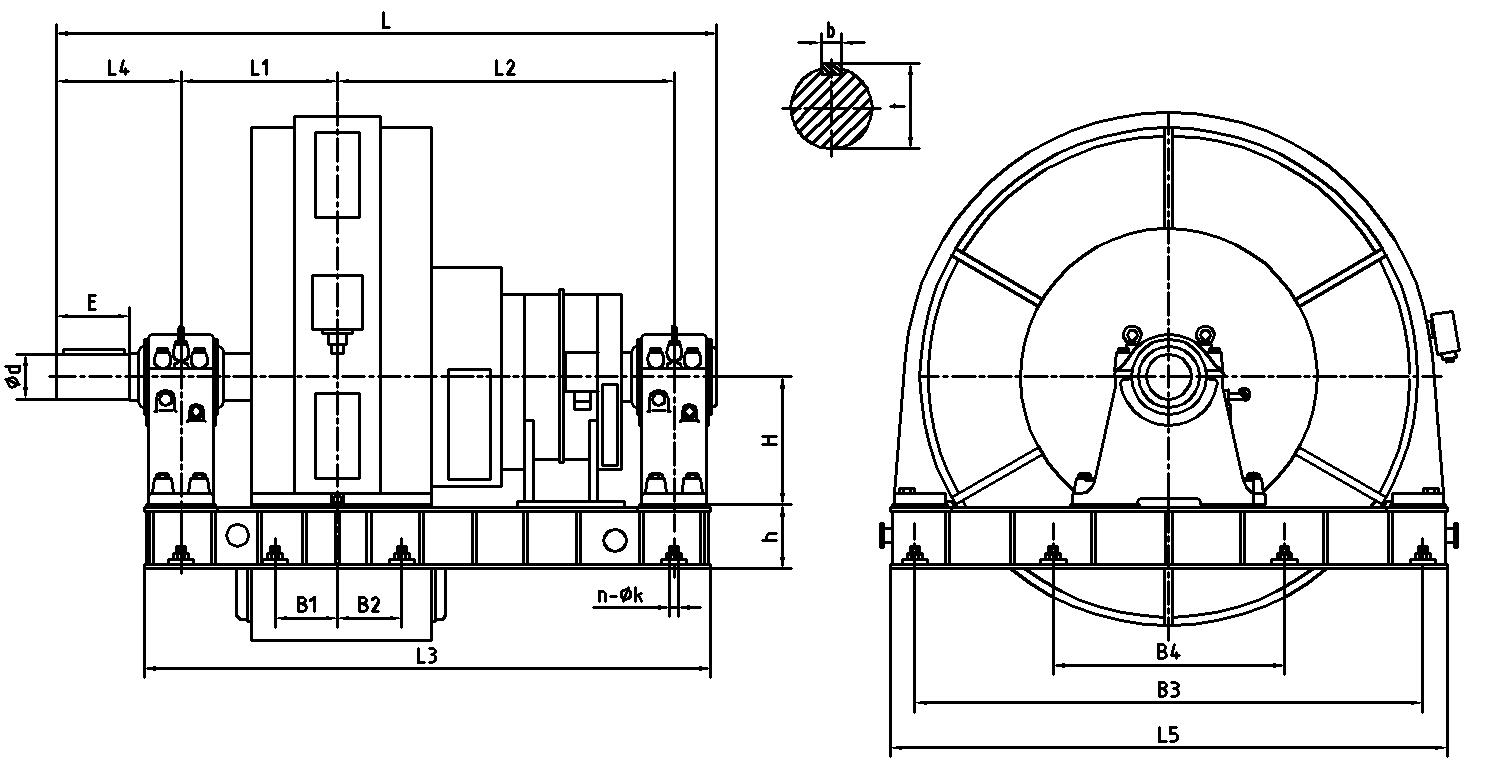

TMW Series Outline Drawings and Installation Dimensions

Type	B1	B2	B3	B4	b	t	Φd	E	H	h	L	L1	L2	L3	L4	L5	n	ΦK	Voltage (kV)
TMW1600-30/2600	/	/	3348	/	63	291	279	332	536	335	4462	953	1653	3610	650	3500	4	36	6
TMW1950-30/2600	500	500	3080	2200	70	334	320	624	630	400	3904	1310	1310	3110	954	3500	8	48	10
TMW2000-30/2900	450	450	3800	2000	70	334	320	470	630	350	3955	1750	1750	3345	825	4140	8	42	6
TMW2600-30/2900	420	420	3800	2200	70	324	310	430	630	350	3965	1800	1800	3395	785	4140	8	42	6
TMW2600-30/2900	450	450	3800	2200	70	324	310	430	630	350	4215	1950	1950	3645	785	4140	8	42	10
TMW3000-30/2900	420	500	3800	2200	70	324	310	430	630	350	3965	1800	1800	3395	785	4140	8	42	6
TMW3000-30/2900	450	450	3520	2000	70	324	310	430	630	350	4215	1950	1950	3645	785	3860	8	42	10
TMW4800-30/3250G	450	450	4230	2200	90	417	400	650	630	400	4440	1950	1950	3650	1005	4590	8	48	10

Note: Due to continuous technical improvements and updates to domestic/international standards, dimensions and technical parameters in this document are subject to change without prior notice. For orders, the final dimensions shall be based on the mutually confirmed outline drawings.
