TK Series - Synchronous Motors for Compressor Applications

Model：

TK250-10/990

Rated Speed：

600r/min

Rated Power：

250kW

Application Scope：

Chemical, metallurgy, scientific research, etc.

COLLECT

Shenyang Electric Machine Group Electric Machine Manufacture Co., Ltd.

Liaoning · Shenyang

Main Products：The company's main products include high-voltage, low-voltage, synchronous, asynchronous, 50 Hz, 60 Hz, standard, and special-environment motors with a center height of 315mm and above, covering 48 series, 176 varieties, and over 2,100 specifications. These include high-power energy-efficient motors, synchronous increased-safety motors, asynchronous increased-safety motors, explosion-proof motors, and small-to-medium-sized steam turbine generators.

Enter the store

︿

﹀

Details Parameters

Details Introduction

Product Structure: Horizontal

Standard Center Height: H630 mm

Standard Frame Size: φ990–φ3,250 mm

Power Range: 250–10,000 kW

Pole Range: 12P–24P

Rated Voltage: 3,000–10,000 V

Protection Class: IP20, IP23, IP44, IP54, IP55

Cooling Methods: IC01, IC81W, IC86W, IC91W, IC37

Mounting Types: IM7211, IM7311, IM7315

Excitation Systems:

Brushed Type – Paired with static excitation cabinet

Brushless Type – Paired with rotating rectifier and static excitation cabinet

Starting Methods: Full-voltage start, reduced-voltage start, variable-frequency start

Operation Modes: Line-frequency operation, variable-frequency operation

Insulation Class: Class F

Complete with baseplate and pedestal sleeve bearings

Applicable Industries

Chemical, metallurgy, scientific research, etc.

Suitable Environments

Non-explosive hazardous areas

TK series synchronous motor technical data (design values)

Type	Rated Power (kW)	Rated Voltage( kV)	Rated Current (A)	Rated Speed (r/min)	Power Factor (Leading)	Efficiency (%)	Locked-Rotor Current Multiple	Locked-Rotor Torque Multiple	Nominal Pull-In Torque Multiple	Pull-Out Torque Multiple	Load Flywheel Moment GD² (t·m²)	Weight(kg)	Rated excitation voltage (V)	Rated excitation current (A)	Protection Class	Notes
TK250-10/990	250	0.38	456	600	0.9	92.6	4.13	1.3	0.69	1.98	0.22	2400	30	178	IP00	Shaftless
TK250-10/990	250	6	29	600	0.9	92.51	4.54	1.373	0.773	2.096	0.205	1700	179.8	29.46	IP00	Shaftless
TK250-12/1180	250	0.38	456.3	500	0.9	92.9	3.64	0.8	0.7	2.115	2.7	2590	41	167	IP00	Shaftless
TK450-12/1430	450	6	52	500	0.9	92.92	5.72	1.62	1.02	2.68	1.02	5000	47	230	IP00	Shaftless
TK630-12/1430	630	10	43	500	0.9	93.2	4.08	0.83	0.83	2.13	0.9	4850	46	268	IPO0	Shaftless
TK280-14/1180	280	0.38	525	428	0.9	93.44	4.166	1.138	0.73	2.111	6	2940	33	253	IP00	Shaftless
TK550-14/1430	550	6	62.6	428	0.9	94.01	5.457	1.416	1.045	2.227	1.3	4920	52.3	173.3	IP00	Shaftless
TK250-16/1180	250	0.38	456	375	0.9	90	4.88	1.972	0.81	2.67	4.9	3210	45	166	IP00	Shaftless
TK500-16/1730	500	6	57	375	0.9	93.7	4.9	1.21	0.89	2.4	3.5	5800	40	237	IPO0	Shaftless
TK1000-18/1730	1000	6	113	333	0.9	95.1	4.86	0.959	0.998	2.29	4	7650	88	183	IP20	Shaftless
TK250-10/1180	250	10	18	600	0.9	90.67	5.26	1.15	1.02	2.24	0.3	5000	31	168	IPO0	Positive pressure ventilation
TK280-10/1180	280	10	20	600	0.9	91.7	5.37	1.06	1.103	2.17	0.42	4800	32	154	IP00	Non-positive pressure ventilation
TK280-12/1180	280	6	32	500	0.9	93	5.14	1.07	1.02	2.2	0.44	4500	39	151	IP00	Non-positive pressure ventilation
TK400-12/1430	400	10	28	500	0.9	91.6	3.88	1.03	0.72	2.26	0.8	5750	57	182	IP23	Non-positive pressure ventilation
TK710-12/1430	710	6	80	500	0.9	94.75	3.95	0.885	0.77	2.08	0.94	6980	46	263	IP00	Non-positive pressure ventilation
TK800-12/1430	800	10	55	500	0.9	93.8	4.36	0.86	0.9	2.11	1.35	8400	50	247	IP00	Non-positive pressure ventilation
TK1000-12/1730	1000	10	69	500	0.9	93.9	5.8	1.53	1.05	2.3	2.4	10140	75	262	IP23	Non-positive pressure ventilation
TK280-14/1180	280	6	33	428	0.9	91.83	4.57	1.57	0.77	2.7	0.48	4800	36	243	IP00	Non-positive pressure ventilation
TK350-14/1180	350	6	40	428	0.9	91	3.95	1.39	0.67	2.45	0.6	6380	34	272	IP23	Positive pressure ventilation
TK400-14/1430	400	6	46	428	0.9	93	5.11	1.4	0.96	2.25	1.07	6360	45	173	IP00	Positive pressure ventilation
TK630-14/1730	630	6	72	428	0.9	93.85	5.17	0.84	1.16	2.29	3.5	9140	44	252	IP00	Positive pressure ventilation
TK800-14/1430	800	6	91	428	0.9	94.7	5.14	1.32	0.99	2.29	1.5	11720	55	215	IP44	Duct ventilation
TK1000-14/1730	1000	10	68	428	0.9	92.5	4.6	0.937	0.95	2.01	4.5	10130	78	198	IPO0	Non-positive pressure ventilation
TK1250-14/1730	1250	10	85	428	0.9	94.5	4.46	0.74	1.04	1.93	5.6	11050	90	204	IP00	Non-positive pressure ventilation
TK1700-14/2150	1700	6	191	428	0.9	95.2	3.85	0.82	0.77	1.85	7	14600	69	269	IP20	Positive pressure ventilation, double shaft extension
TK280-16/1430	280	6	33	375	0.9	92	5.02	1.35	0.87	2.55	1.3	6300	48	165	IP00	Positive pressure ventilation
TK360-16/1430	360	6	42	375	0.9	92.2	5.2	1.11	0.98	2.47	0.8	6850	58	171	IP23	Positive pressure ventilation
TK500-16/1430	500	6	57	375	0.9	93.5	5.08	0.99	1.05	2.32	1.28	7150	64	163	IP00	Positive pressure ventilation
TK500-16/1730	500	6	58	375	0.9	92.87	4.96	1.26	0.89	2.53	3	8300	47	243	IPO0	Positive pressure ventilation
TK630-16/1730	630	6	72	375	0.9	93.35	4.17	0.82	0.83	2.28	1.82	7770	55	266	IP00	Positive pressure ventilation
TK800-16/1730	800	6	91	375	0.9	94.23	4.89	0.765	1.143	2.23	4.5	11950	60	230	IP23	Positive pressure ventilation, flange-mounted shaft
TK1100-16/1730	1100	10	75	375	0.9	94.25	4.3	0.83	0.89	2.13	3.1	10900	96	194	IP00	Positive pressure ventilation
TK1250-16/1730	1250	10	85	375	0.9	94.46	5.27	1.02	1.1	2.3	4.6	13000	106	179	IPO0	Positive pressure ventilation
TK1250-16/2150	1250	6	141	375	0.9	94.9	4.7	1.19	0.87	2.14	7.4	16100	75	242	IP00	Positive pressure ventilation
TK1500-16/2150	1500	6	169	375	0.9	95	4.25	0.85	0.87	2	6	14500	74	282	IP20	Positive pressure ventilation
TK1800-16/2150	1800	10	122	375	0.9	95.13	5.07	1.05	1.05	2	10.4	18480	68	271	IP23	Positive pressure ventilation
TK2000-16/2150	2000	6	224	375	0.9	95.7	5.24	0.89	1.22	2	9	18250	84	233	IP00	Positive pressure ventilation with flywheel, smooth shaft
TK2200-16/2150	2200	10	149	375	0.9	95.46	4.18	0.87	0.87	1.85	7.95	18600	82	284	IP00	Positive pressure ventilation, flange-mounted shaft
TK2500-16/2150	2500	10	168	375	0.9	95.54	4.46	0.92	0.93	1.87	8.5	20450	101	247	IPO0	Positive pressure ventilation, flange-mounted shaft
TK2800-16/2150	2800	6	312	375	0.9	96.4	4.9	1.29	0.89	1.92	10	23880	87	254	IP00	Positive pressure ventilation, flange-mounted shaft
TK3000-16/2600	3000	6	334	375	0.9	96	4.08	0.66	0.95	1.86	14.4	23290	99	269	IP20	Positive pressure ventilation, flange-mounted shaft
TK3200-16/2600	3200	6	356	375	0.9	96.1	3.77	0.71	0.81	1.81	21	23250	104	281	IP00	Positive pressure ventilation, flange-mounted shaft
TK3500-16/2600	3500	10	234	375	0.9	96.1	3.33	0.66	0.68	1.77	14	26630	94	349	IP00	Positive pressure ventilation, double shaft extension

TK series synchronous motor technical data (design values)

Type	Rated Power (kW)	Rated Voltage( kV)	Rated Current (A)	Rated Speed (r/min)	Power Factor (Leading)	Efficiency (%)	Locked-Rotor Current Multiple	Locked-Rotor Torque Multiple	Nominal Pull-In Torque Multiple	Pull-Out Torque Multiple	Load Flywheel Moment GD² (t·m²)	Weight(kg)	Rated excitation voltage (V)	Rated excitation current (A)	Protection Class	Notes
TK280-18/1430	280	0.38	511	333	0.9	92.9	3.77	1.13	0.63	2.34	1	5500	52	170	IP00	Positive pressure ventilation
TK355-18/1430	355	0.38	644	333	0.9	93	4.57	1.23	0.798	2.56	1	6700	61	165	IP00	Positive pressure ventilation, double shaft extension
TK355-18/1730G	355	6	41	333	0.9	90.7	5.65	1.18	1.07	2.74	3.5	8980	55	162	IP20	Positive pressure ventilation, with flywheel
TK550-18/1730	550	10	38	333	0.9	92.8	5.69	1.12	1.13	2.62	2.5	9440	82	158	IP23	Non-positive pressure ventilation
TK630-18/1730	630	10	44	333	0.9	92.8	4.91	0.97	0.98	2.41	2.5	9850	88	169	IP00	Positive pressure ventilation, flange-mounted shaft
TK800-18/1730	800	6	91	333	0.9	94.5	4.49	0.89	0.91	2.25	3	10000	85	170	IP23	Positive pressure ventilation
TK800-18/2150	800	10	56	333	0.9	93.5	4.91	1.11	0.91	2.29	7.5	12920	73	275	IP20	Positive pressure ventilation
TK1000-18/2150	1000	10	69	333	0.9	93.6	4.73	1.07	0.9	2.15	10	13670	104	177	IP20	Non-positive pressure ventilation
TK1250-18/2150	1250	6	141	333	0.9	95.2	4.68	1.3	0.82	2.14	9.8	16120	65	265	IP00	Positive pressure ventilation
TK1500-18/2150	1500	6	169	333	0.9	95	5.4	1.2	1.07	2.2	4.5	16160	100	213	IP00	Positive pressure ventilation, smooth shaft
TK1800-18/2150	1800	10	122	333	0.9	95.2	4.43	1.02	0.86	1.98	8	17600	93	243	IP00	Positive pressure ventilation
TK2000-18/2150	2000	6	225	333	0.9	95.4	4.75	0.86	1.05	2.02	8	17820	107	240	IP00	Positive pressure ventilation, flange-mounted shaft
TK2300-18/2150	2300	6	258	333	0.9	95.9	4.77	0.89	1.05	2	9	19050	105	264	IP00	Positive pressure ventilation
TK2500-18/2150	2500	10	168	333	0.9	95.5	4.77	1.1	0.93	2.01	9	22590	101	293	IP20	Positive pressure ventilation, flange-mounted shaft
TK2800-18/2600	2800	10	188	333	0.9	95.56	4.93	1.01	1.01	2.09	24	24950	120	269	IP20	Positive pressure ventilation, smooth shaft
TK3000-18/2600	3000	6	334	333	0.9	96.4	4.53	1.16	0.83	1.92	16	25840	99	263	IP00	Positive pressure ventilation, smooth shaft
TK3300-18/2600	3300	10	222	333	0.9	95.91	4.2	0.81	0.87	1.94	25	26860	110	253	IP23	Positive pressure ventilation, flange-mounted shaft
TK3600-18/2600	3600	6	401	333	0.9	96.3	3.7	0.76	0.75	1.81	26.5	28550	123	256	IP20	Positive pressure ventilation, flange-mounted shaft
TK3800-18/2600	3800	10	254	333	0.9	96.1	4.3	0.85	0.89	1.91	27	28350	120	246	IP00	Positive pressure ventilation, flange-mounted shaft
TK4000-18/2600	4000	6	446	333	0.9	96.31	4.25	0.803	0.9	1.94	25	28660	130	270	IP20	Positive pressure ventilation, smooth shaft
TK4200-18/2600	4200	6	468	333	0.9	96.4	3.48	0.75	0.69	1.78	25	26840	129	281	IP00	Positive pressure ventilation, flange-mounted shaft
TK4700-18/2600G	4700	6	523	333	0.9	96.38	3.48	0.62	0.75	1.8	35	28400	138	278	IP20	Positive pressure ventilation, flange-mounted shaft
TK5300-18/2600	5300	6	587	333	0.9	96.73	3.83	0.83	0.76	1.8	31	30710	148	274	IP20	Positive pressure ventilation, flange-mounted shaft
TK5500-18/2600G	5500	10	366	333	0.9	96.5	4.38	0.934	0.892	1.866	31	32700	152	265	IP20	Positive pressure ventilation, flange-mounted shaft
TK300-20/1430	300	10	21	300	0.9	91.5	5.81	1.43	1.02	2.89	2	11700	75	123	IP44	Duct ventilation, with flywheel
TK355-20/1730	355	0.38	655	300	0.9	91.88	3.68	0.83	0.63	2.39	3.5	8890	76	183	IP00	Positive pressure ventilation, with flywheel
TK350-20/1730	350	6	41	300	0.9	91.5	4.75	1.18	0.815	2.67	3	9020	68	177	IP00	Positive pressure ventilation, with flywheel
TK380-20/1430	380	10	27	300	0.9	91.4	4.51	1.11	0.79	2.49	3.7	9650	84	137	IP00	Non-positive pressure ventilation
TK400-20/1730	400	10	29	300	0.9	90.8	3.89	0.74	0.75	2.28	3.5	9670	84	172	IP00	Positive pressure ventilation, with flywheel
TK450-20/1730	450	10	32	300	0.9	91.46	3.7	0.71	0.73	2.2	3.5	9660	80	170	IP00	Positive pressure ventilation, with flywheel
TK450-20/1730	450	0.38	825	300	0.9	92.43	3.71	0.81	0.66	2.3	3.5	9500	85	176	IP00	Positive pressure ventilation, with flywheel
TK550-20/2150	550	6	63	300	0.9	93.03	4.97	1.25	0.91	2.54	10	11950	68	196	IP23	Positive pressure ventilation, with flywheel
TK630-20/1730	630	6	72	300	0.9	93.6	4.79	0.92	0.95	2.48	3.5	9600	62	224	IP00	Positive pressure ventilation
TK630-20/2150	630	10	44	300	0.9	92	5.11	1	0.97	2.6	6	12000	71	257	IP00	Positive pressure ventilation, with flywheel
TK710-20/1730	710	6	81	300	0.9	93.7	5.07	0.81	1.1	2.54	2.6	9860	67	232	IP00	Positive pressure ventilation
TK750-20/2150	750	10	52	300	0.9	93	5.2	1.03	1	2.54	6.5	13400	88	234	IP00	Positive pressure ventilation, with flywheel
TK1000-20/2150	1000	6	113	300	0.9	94.76	4.54	1.14	0.85	2.36	7.5	12000	63	242	IP00	Positive pressure ventilation, double shaft extension
TK1120-20/2150	1120	6	127	300	0.9	94.43	4.11	0.81	0.83	2.19	8	13610	100	248	IP00	Positive pressure ventilation, flange-mounted shaft, with flywheel
TK1500-20/2150	1500	10	102	300	0.9	94.9	4.56	0.89	0.91	2.25	8	17550	119	209	IP23	Non-positive pressure ventilation
TK1800-20/2150	1800	6	203	300	0.9	95.41	5.06	1.25	0.95	2.35	8.5	17600	117	217	IP23	Positive pressure ventilation
TK2000-20/2150	2000	6	223	300	0.9	95.99	5.16	1.258	0.946	2.34	14.7	16500	96	231	IP00	Non-positive pressure ventilation, flange-mounted shaft
TK2500-20/2600	2500	6	280	300	0.9	95.98	4.57	0.76	1.05	2.03	18	26600	101	265	IP44	Duct ventilation, flange-mounted shaft
TK2700-20/2600	2700	6	302	300	0.9	95.94	4.25	0.87	0.86	2.03	16.5	22950	104	269	IP20	Positive pressure ventilation, double shaft extension
TK3000-20/2600	3000	6	334	300	0.9	96.1	3.86	0.79	0.78	1.95	20	22950	116	293	IP20	Non-positive pressure ventilation
TK3500-20/2600	3500	6	390	300	0.9	96.2	4.35	0.89	0.89	2	28	26000	131	271	IP00	Positive pressure ventilation, double shaft extension

TK series synchronous motor technical data (design values)

Type	Rated Power (kW)	Rated Voltage( kV)	Rated Current (A)	Rated Speed (r/min)	Power Factor (Leading)	Efficiency (%)	Locked-Rotor Current Multiple	Locked-Rotor Torque Multiple	Nominal Pull-In Torque Multiple	Pull-Out Torque Multiple	Load Flywheel Moment GD² (t·m²)	Weight(kg)	Rated excitation voltage (V)	Rated excitation current (A)	Protection Class	Notes
TK3800-20/2600	3800	6	423	300	0.9	96.2	5.17	1.06	1.08	2.09	32	31200	136	261	IP00	Positive pressure ventilation, flange-mounted shaft
TK4600-20/2600	4600	10	307	300	0.9	96.4	4.17	0.86	0.85	1.89	34	32750	138	266	IP20	Positive pressure ventilation, flange-mounted shaft
TK5000-20/2600	5000	6	554	300	0.9	96.7	4	0.706	0.89	1.94	31	30500	153	266	IP20	Positive pressure ventilation, flange-mounted shaft
TK5200-20/2600	5200	6	576	300	0.9	96.7	3.85	0.68	0.86	1.9	35	31620	156	283	IP20	Positive pressure ventilation, flange-mounted shaft
TK4800-22/3250	4800	10	321	273	0.9	96	5.35	1.14	1.14	2	60	41000	161	255	IP00	Positive pressure ventilation, smooth shaft
TK2500-24/2900	2500	10	168	250	0.9	95.53	5.51	1.11	1.13	2.25	40	27000	127	248	IP00	Positive pressure ventilation, double shaft extension

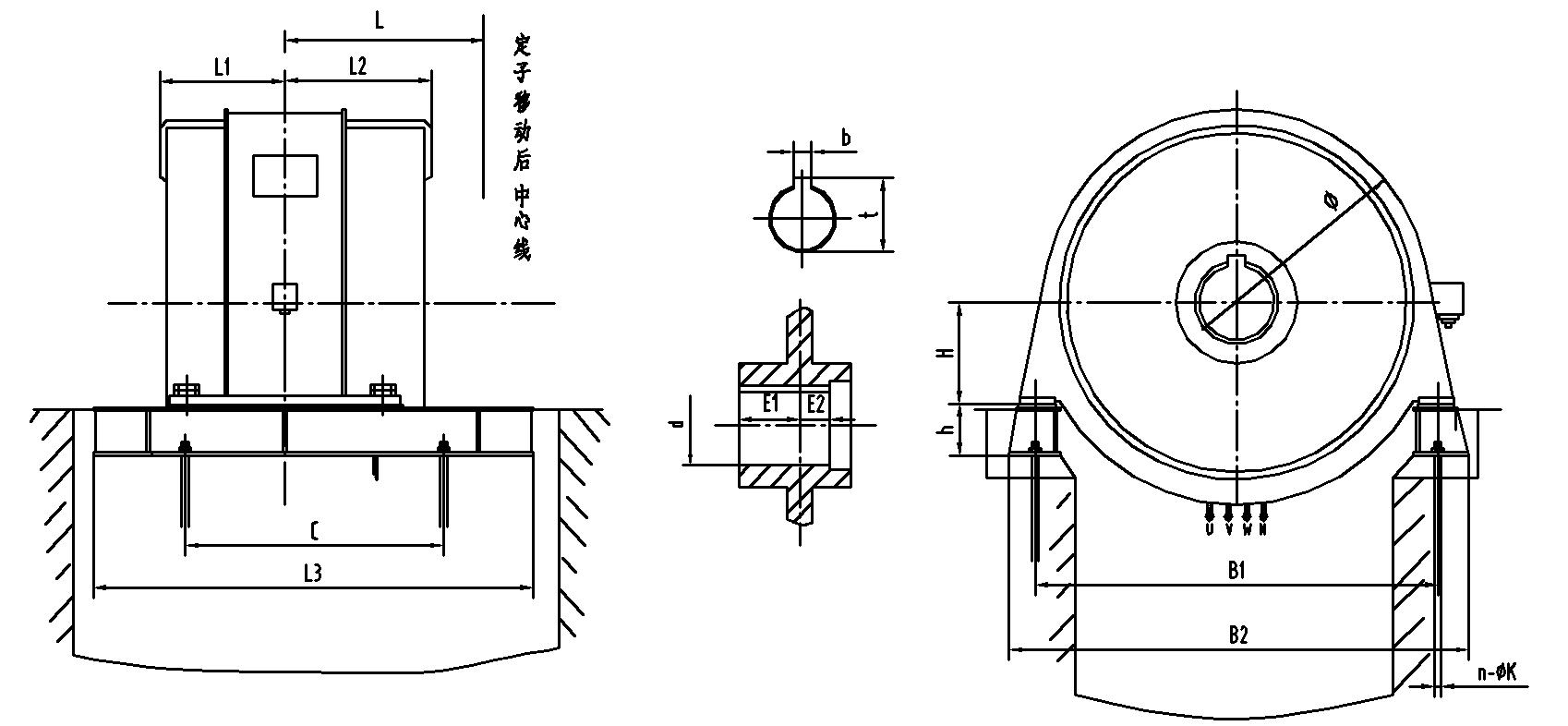

TK shaftless series synchronous motor outline drawing and installation dimensions

Type	B1	B2	b	d	E1	E2	H	h	L	L1	L2	L3	C	Φ	t	n	Φk	Notes
TK250-10/990	1040	1340	36	125	120	122	630	100	550	379	460	1300	630	1220	133.9	8	GB/T799 M30	Shaftless, 380V
TK250-10/990	1110	1430	36	125	145	75	630	150	845	420	500	1580	760	1280	135.2	8	GB/T799 M30	Shaftless, 6000V
TK250-12/1180	1530	1780	36	135	125	125	500	260	650	290	360	1450	650	1500	145.2	4	M36×1600	Shaftless, 380V
TK450-12/1430	1700	1970	45	195	117.5	117.5	630	280	620	380	480	1430	760	1750	204.5	4	M36×1300	Shaftless, 6000V
TK630-12/1430	1700	1970	45	195	130	105	630	280	720	515	610	1650	1000	1750	204.5	4	M36×1300	Shaftless, 10000V
TK280-14/1180	1740	2030	40	165	122	122	630	300	700	410	460	1520	700	1500	174.4	4	M36×1600	Shaftless, 380V
TK550-14/1430	1650	1890	50	220	175	175	630	300	700	400	400	1740	1520	1800	229.7	4	M36×1200	Shaftless, 6000V
TK250-16/1180	1740	2030	40	165	122	122	630	300	670	385	445	1520	700	1500	174.7	4	M36×1600	Shaftless, 380V
TK500-16/1730	2100	2370	50	220	130	130	630	300	600	450	420	1500	860	2100	221.4	4	M36×1600	Shaftless, 6000V
TK1000-18/1730	2100	2520	50	220	220	220	550	300	770	495	495	2000	1000	2100	232.4	6	M36×1300	Shaftless, 6000V

Note: Due to continuous technical improvements and updates to domestic/international standards, dimensions and technical parameters in this document are subject to change without prior notice. For orders, the final dimensions shall be based on the mutually confirmed outline drawings.

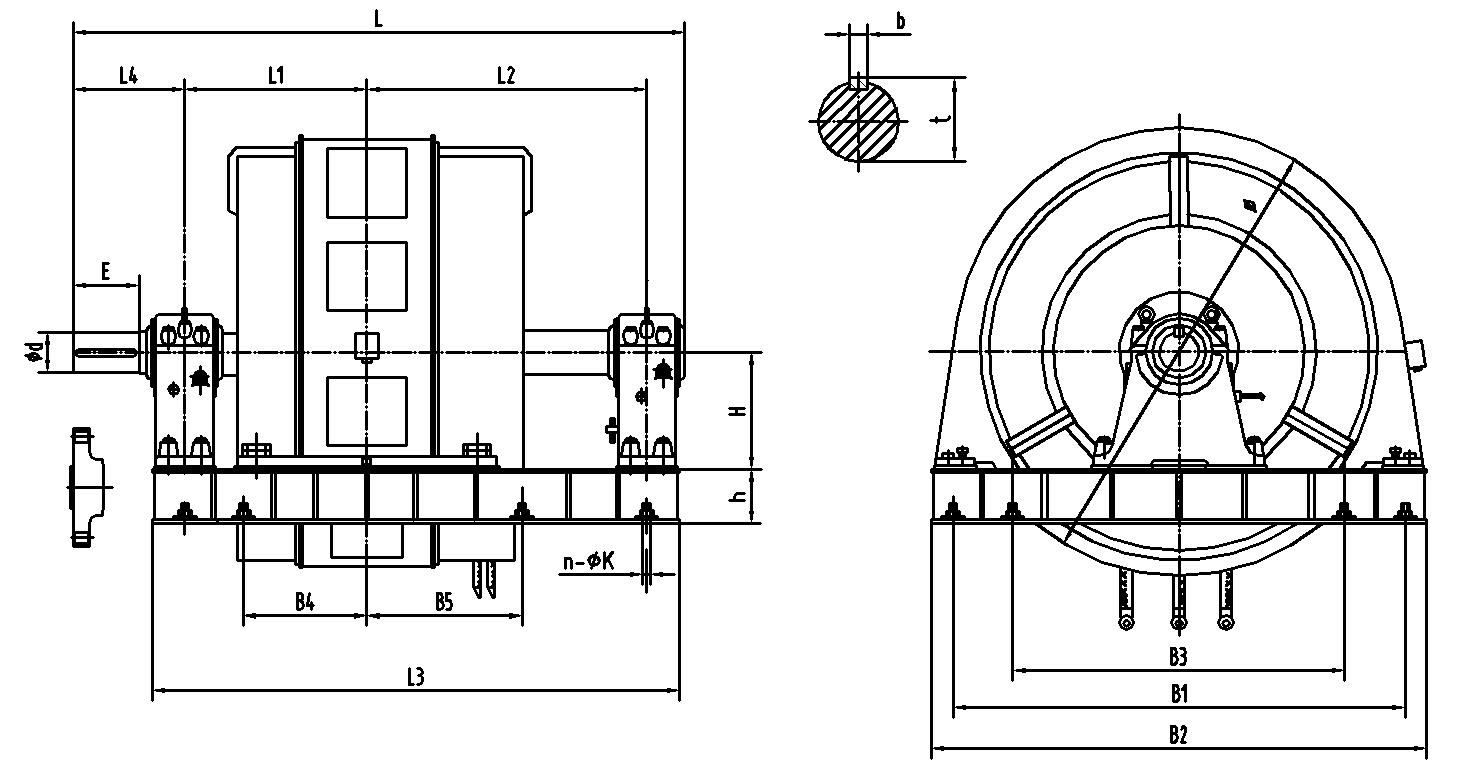

TK shafted series synchronous motor outline drawing and installation dimensions

Type	B1	B2	B4	B5	b	d	t	E	H	h	L	L1	L2	L3	L4	Φ	n	Φk	Notes
TK250-10/1180	1400	1620	480	980	32	130	137	210	630	250	2370	650	1150	2100	400	1500	4	42	Slip ring positive pressure ventilation, 10000V
TK280-10/1180	1400	1620	490	630	32	120	127	210	630	250	2030	660	800	1760	400	1500	4	42	10000V
TK280-12/1180	1400	1620	450	600	32	120	127	210	630	250	1960	620	770	1690	400	1500	4	42	6000V
TK400-12/1430	1650	1820	560	710	36	140	148	250	630	300	2280	750	900	1970	450	1750	4	42	10000V
TK710-12/1430	2100	2450	620	945	40	160	169	300	630	300	2605	800	1125	2245	500	1750	4	42	6000V
TK800-12/1430	1650	1890	640	790	45	180	190	300	630	300	2590	850	1000	2210	530	1750	4	42	10000V
TK1000-12/1730	2000	2320	590	740	45	180	190	300	630	300	2490	800	950	2110	530	2100	4	42	10000V, square frame
TK280-14/1180	1400	1620	480	630	36	130	138	250	630	250	2060	650	800	1750	440	1500	4	42	6000V
TK350-14/1180	1400	1620	460	1010	36	140	148	250	630	300	2480	650	1200	2170	450	1500	4	42	Slip ring positive pressure ventilation, square frame, 6000V
TK400-14/1430	1650	1890	460	1010	40	160	169	300	630	300	2530	650	1200	2170	500	1750	4	42	Slip ring positive pressure ventilation, 6000V
TK630-14/1730	2120	2380	500	650	45	200	210	350	630	350	2350	700	850	1910	590	2200	4	42	Slip ring positive pressure ventilation, 6000V
TK800-14/1430	4320	4800	720	1130	45	200	210	350	630	300	3460	950	1350	2660	580	1750	4	48	Duct Ventilation, 6000V
TK1000-14/1730	2030	2290	650	800	45	200	210	350	630	300	2640	850	1000	2210	580	2100	4	48	10000V
TK1250-14/1730	2030	2290	700	850	45	200	210	350	630	300	2740	900	1050	2310	580	2100	4	48	10000V
TK1700-14/1730	2750	3030	600	1180	45	200	210	350	630	350	3490	830	1410	2680	650	2700	4	48	Slip ring positive pressure ventilation, double shaft extension, 6000V

TK shafted series synchronous motor installation dimensions

Type	B1	B2	B3	B4	B5	b	d	t	E	H	h	L	L1	L2	L3	L4	Φ	n	Φk	d1	d2	d3	n1	Notes
TK280-16/1430	1650	1890	/	410	960	36	140	148	250	630	300	2380	600	1150	2070	450	1750	4	42	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK360-16/1430	1650	1890	/	510	1010	36	140	148	250	630	300	2530	700	1200	2220	450	1750	4	42	/	/	/	/	Slip ring positive pressure ventilation, square frame, 6000V
TK500-16/1430	1850	1910	/	470	970	40	160	169	300	630	300	2490	650	1150	2120	510	1750	4	48	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK500-16/1730	2000	2290	/	470	1020	45	180	190	300	630	300	2590	650	1200	2210	530	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK630-16/1730	2030	2290	/	470	1020	40	160	169	300	630	300	2530	650	1200	2170	500	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK800-16/1730	2030	2290	/	570	1020	/	/	/	/	630	300	2870	800	1250	2440	610	2100	4	48	400	500	436	8	Slip ring positive pressure ventilation, square frame, flange-mounted shaft, 6000V
TK1100-16/1730	2030	2290	/	600	1150	45	200	210	350	630	300	2940	800	1350	2510	580	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, 10000V
TK1250-16/1730	4480	5000	/	560	1170	56	250	262.4	410	630	370	3110	810	1420	2590	670	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, 10000V
TK1250-16/2150	2980	3240	/	565	1365	56	250	262	410	630	350	3310	800	1600	2820	670	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK1500-16/2150	2730	3020	/	510	1160	56	250	262	410	630	350	3060	750	1400	2570	670	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK1800-16/2150	2750	3030	/	660	1350	56	250	262	410	630	350	3420	910	1600	2950	670	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, square frame10000V
TK2000-16/2150	2750	3040	/	690	1170	/	/	/	410	630	350	3230	920	1400	2740	670	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, smooth shaft, with flywheel, 6000V
TK2200-16/2150	2750	3030	/	840	1270	/	/	/	550	630	350	3600	1070	1500	2990	790	2700	8	48	570	690	56	12	Slip ring positive pressure ventilation, flange-Mounted Shaft, differential Pressure Controller, 10000V
TK2500-16/2150	2750	3040	/	070	1270	/	/	/	540	630	350	3840	1300	1500	3220	800	2700	8	48	460	550	52	10	Slip ring positive pressure ventilation, flange-mounted shaft, 10000V
TK2800-16/2150	2980	3240	1200	720	1320	/	/	/	/	630	350	3750	1000	1600	3110	870	2700	12	48	570	660	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK3000-16/2600	3360	3680	1600	625	1175	/	/	/	/	630	370	3430	900	1450	2840	800	3200	8	56	570	690	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK3200-16/2600	3360	3680	1600	730	1280	/	/	/	520	630	370	3630	1000	1550	3040	800	3200	8	48	570	660	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK3500-16/2600	3360	3680	1600	785	1385	70	320	334	470	630	370	4240	1050	1650	3190	770	3200	8	56	/	/	/	/	Slip ring positive pressure ventilation, flange-mounted shaft, 10000V
TK280-18/1430	1650	1910	/	370	920	36	150	158	250	630	250	2280	550	1100	1970	450	1750	4	48	/	/	/	/	Slip ring positive pressure ventilation，380V
TK355-18/1430	1650	1910	/	670	1020	36	140	148	250	630	300	2910	750	1200	2270	510	1750	4	48	/	/	/	/	Slip ring positive pressure ventilation, double shaft extension, 380V
TK355-18/1730G	2000	2290	/	460	1010	45	200	210	250	630	325	2560	650	1200	2170	480	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 6000V
TK550-18/1730	2030	2290	/	650	700	45	200	210	450	630	300	2770	850	900	2110	810	2100	4	48	/	/	/	/	Square frame, 10000V
TK630-18/1730	2030	2290	/	550	1100	/	/	/	350	630	300	2840	750	1300	2410	580	2100	4	48	480	555	45	10	Slip ring positive pressure ventilation, flange-mounted shaft,10000V
TK800-18/1730	2000	2290	/	550	1050	45	200	210	430	630	300	2870	750	1250	2360	660	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation,square frame, 6000V
TK800-18/2150	2750	3040	/	560	1060	50	220	231	330	630	350	2930	800	1300	2520	590	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation，10000V
TK1000-18/2150	2750	3040	/	590	1190	50	210	221	340	630	320	3000	800	1400	2560	590	2700	4	48	/	/	/	/	10000V
TK1250-18/2150	2780	3070	/	570	1070	56	250	262	410	630	350	3010	80c	1300	2520	670	2700	6	48	/	/	/	/	Slip ring positive pressure ventilation，6000V
TK1500-18/2150	2750	3040	/	610	1370	/	250	/	250	630	335	3190	840	1600	2860	510	2700	6	48	/	/	/	/	Slip ring positive pressure ventilation,smooth shaft, 6000V
TK1800-18/2150	2750	3040	/	660	1210	56	250	262	410	630	350	3260	900	1450	2770	670	2700	6	48	/	/	/	/	Slip ring positive pressure ventilation,10000V
TK2000-18/2150	2780	3040	/	670	1120	/	/	/	/	630	350	3310	900	1350	2670	820	2700	6	48	570	680	43.8	16	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK2300-18/2150	2780	3040	1200	620	1170	56	250	262	410	630	350	3160	850	1400	2670	670	2700	8	48	/	/	/	/	Slip ring positive pressure ventilation,6000V
TK2500-18/2150	2750	3040	/	725	1275	/	/	/	/	630	350	3630	1000	1550	3040	800	2700	4	48	570	690	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 10000V
TK2800-18/2600	3360	3680	1600	725	1270	/	300	/	470	630	370	3600	1000	1550	3040	770	3200	8	48	/	/	/	/	Slip ring positive pressure ventilation, smooth shaft, 10000V
TK3000-18/2600	3460	3700	/	775	1795	/	280	/	410	630	360	4090	1040	2060	3590	710	3200	6	56	/	/	/	/	Slip ring positive pressure ventilation, smooth shaft, 6000V
TK3300-18/2600	3200	3600	1500	775	1375	/		/	/	630	360	3780	1050	1650	3190	800	3200	8	56	570	660	56	12	Slip ring positive pressure ventilation, flange-mounted shaft,square frame, 10000V

TK shafted series synchronous motor installation dimensions

Type	B1	B2	B3	B4	B5	b	d	t	E	H	h	L	L1	L2	L3	L4	Φ	n	Φk	d1	d2	d3	n1	Notes
TK3600-18/2600	3480	3820	1600	835	1415	/	/	/	/	630	350	3760	1100	1680	3250	700	3200	8	56	570	700	58	12	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK3800-18/2600	3200	3600	1500	785	1385	/	/	/	/	630	350	3780	1050	1650	3190	800	3200	8	56	570	660	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 10000V
TK4000-18/2600	3360	3680	1600	670	1310	/	320	/	300	630	350	3400	940	1580	3000	600	3200	8	56	/	/	/	/	Slip ring positive pressure ventilation, smooth shaft, 6000V
TK4200-18/2600	3200	3600	1500	685	1235	/	/	/	570	630	400	3580	950	1500	2940	850	3200	8	66	570	660	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK4700-18/2600G	3360	3680	2240	710	1350	/	/	/	/	630	400	3245	/	1625	2870	/	3200	8	62	498	582	47.5	16	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK5300-18/2600	3360	3680	2240	790	1360	/	/	/	/	630	400	3637.5	1050	1620	3150	687.5	3200	8	56	498	582	47.5	16	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK5500-18/2600G	3200	3600	1500	830	1430	/	/	/	/	630	400	3880	1100	1700	3290	800	3200	8	66	650	760	70	10	Slip ring positive pressure ventilation, flange-mounted shaft, 10000V
TK300-20/1430	2120	2400	/	700	1090	45	200	210	460	630	300	3110	910	1300	2570	690	2000	4	48	/	/	/	/	Duct ventilation, with flywheel, 10000V
TK355-20/1730	2000	2290	/	450	950	45	180	190	245	630	325	2485	650	1150	2160	475	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 380V
TK350-20/1730	2000	2290	/	440	940	45	180	190	300	630	300	2540	650	1150	2160	530	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel,6000V
TK380-20/1430	1650	1895	/	750	750	45	200	210	370	630	300	2730	950	950	2260	620	1750	4	55	/	/	/	/	10000V
TK400-20/1730	2000	2290	/	540	1090	45	180	190	245	630	325	2735	750	1300	2410	475	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 10000V
TK450-20/1730	20002	2290	/	540	1090	45	180	190	245	630	325	2735	750	1300	2410	475	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 10000V
TK450-20/1730	2000	2290	/	450	950	45	180	190	245	630	325	2485	650	1150	2160	475	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 380V
TK550-20/2150	2750	3040	/	540	990	45	180	190	300	630	350	2690	750	1200	2310	530	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, square frame,6000V
TK630-20/1730	2000	2290	/	500	1000	50	220	231	350	630	300	2690	700	1200	2260	580	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation,6000V
TK630-20/2150	2750	3040	/	570	1120	50	220	231	330	630	335	2980	800	1350	2570	590	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 10000V
TK710-20/1730	2000	2290	/	460	1010	45	200	210	350	630	300	2740	700	1250	2310	580	2100	4	48	/	/	/	/	Slip ring positive pressure ventilation, 6000V
TK750-20/2150	2750	3040	/	570	1120	50	210	221	350	630	350	3000	800	1350	2570	610	2700	6	48	/	/	/	/	Slip ring positive pressure ventilation, with flywheel, 10000V
TK1000-20/2150	2750	3040	/	500	750	45	200	210	350	630	300	3130	700	1250	2310	590	2700	4	48	/	/	/	/	Slip ring positive pressure ventilation, double shaft extension, 6000V
TK1120-20/2150	2780	3040	/	510	1010	/	/	/	/	630	350	2940	750	1250	2420	700	2700	6	48	460	550	52	10	Slip ring positive pressure ventilation, with flywheel, flange-mounted shaft, 6000V
TK1500-20/2150	2750	3030	/	710	1270	56	250	262	410	630	300	3350	940	1500	2860	670	2600	6	56	/	/	/	/	Square frame, 10000V
TK1800-20/2150	2750	3040	/	610	1370	56	250	262	410	630	335	3350	840	1600	2860	670	2700	6	42	/	/	/	/	Slip ring positive pressure ventilation, square frame, 6000V
TK2000-20/2150	2750	3040	/	850	1000	/	/	/	410	630	335	2760	850	1000	2270	670	2700	6	48	540	620	48	12	Flange-mounted shaft, 6000V
TK2500-20/2600	3620	3920	2330	795	1245	/	/	/	/	630	350	3680	1050	1500	3040	850	3400	8	48	570	660	56	12	Duct ventilation, flange-mounted shaft, 6000V
TK2700-20/2600	3360	3680	1600	640	1190	63	280	292	470	630	370	3890	900	1450	2830	770	3300	8	56	/	/	/	/	Slip ring positive pressure ventilation, double shaft extension, 6000V
TK3000-20/2600	3360	3680	2240	575	1075	/	I	/	/	630	370	3340	850	1350	2690	860	3200	8	56	/	/	/	I	6000V
TK3500-20/2600	3360	3680	1600	735	1435	56	280	292	410	630	370	4120	1000	1700	3190	710	3200	8	56	/	/	/	/	Slip ring positive pressure ventilation, double shaft extension, 6000V
TK3800-20/2600	3360	3680	2240	735	1285	/	/	/	/	630	370	3830	1000	1550	3040	1000	3200	8	56	570	660	56	12	Slip ring positive pressure ventilation, flange-mounted shaft, 6000V
TK4600-20/2600	3600	4000	2360	830	1380	/	/	/	/	630	370	3830	1100	1650	3240	800	3450	8	56	650	760	70	10	Slip ring positive pressure ventilation, flange-mounted shaft, 6001V
TK5000-20/2600	3200	3600	2000	670	1520	/	/	/	/	630	370	3830	950	1800	3240	800	3200	8	56	650	760	70	10	Slip ring positive pressure ventilation, flange-mounted shaft, 6002V
TK5200-20/2600	3360	3680	2240	780	1350	/	/	/	/	630	400	3638	1050	1620	3150	687.5	3200	8	62	498	582	47.5	16	Slip ring positive pressure ventilation, flange-mounted shaft, 6003V
TK4800-22/3250	4250	4650	2400	750	1295	/	340	/	350	630	400	3640	1080	1570	3195	710	4000	8	56	/	/	/	/	Slip ring positive pressure ventilation, smooth shaft, 10000V
TK2500-24/2900	3800	4140	2200	635	1235	63	280	292	470	630	370	4000	900	1500	2890	800	3600	8	56	/	/	/	/	Slip ring positive pressure ventilation, double shaft extension, 10000V
