Liaoning · Shenyang
Product Structure: Vertical
Standard Frame Size: φ1180–φ4250 mm
Power Range: 250–10000 kW
Pole Range: 8P–60P
Rated Voltage: 380–13800 V
Protection Class: IP20, IP23, IP44, IP54, IP55
Cooling Methods: IC01, IC81W, IC86W
Mounting Types: IM 8421, IM8425
Excitation System: Brushed - with static excitation cabinet
Starting Methods: Full-voltage start, reduced-voltage start, variable-frequency start
Operation Modes: Power-frequency operation, variable-frequency operation
Insulation Class: Class F
Can be equipped with different specifications of top thrust sliding bearings, bottom rolling guide bearings, or guide shoe bearings according to load characteristics.
Applicable Industries
Power generation, mining, water conservancy, municipal engineering, etc.
Suitable Environments
Suitable for various non-explosive environments

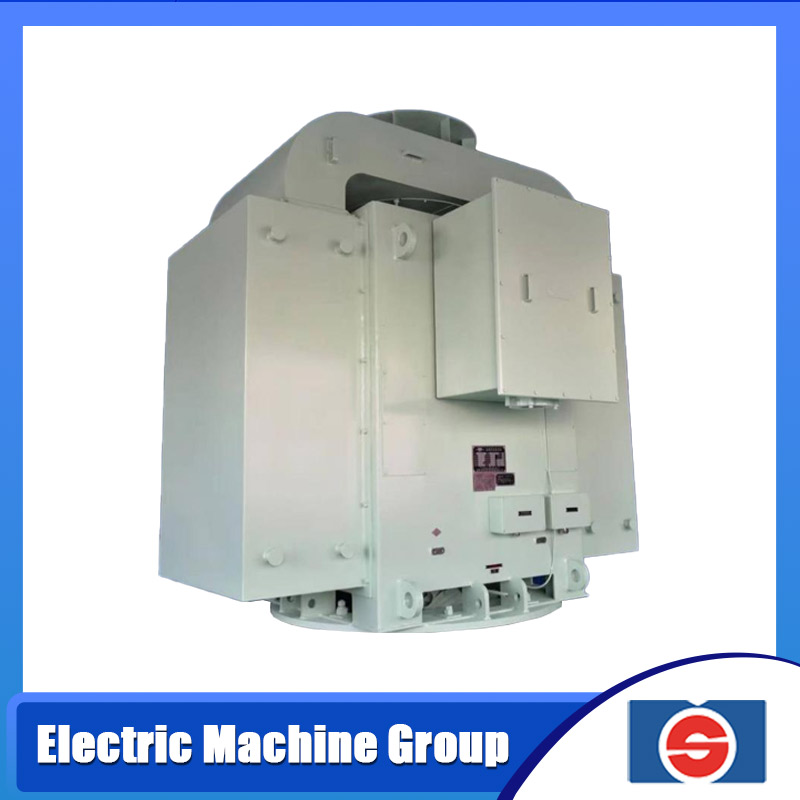

TL Series Large Vertical AC Three-Phase Synchronous Motors (Design Values)
| Type | Rated Power (kW) |
Rated Voltage( kV) | Rated Current (A) |
Rated Speed (r/min) |
Power Factor (Leading) | Efficiency (%) |
Locked-Rotor Current Multiple | Locked-Rotor Torque Multiple | Nominal Pull-In Torque Multiple | Pull-Out Torque Multiple | Load Flywheel Moment GD² (t·m²) | Weight(kg) | Rated excitation voltage (V) |
Rated excitation current (A) |
Protection Class | Notes |
| TL500-16/1730 | 500 | 6 | 58 | 375 | 0.9 | 92.87 | 4.96 | 1.26 | 0.89 | 2.53 | 3 | 10500 | 47 | 243 | IP23 | |
| TL630-16/1730 | 630 | 6 | 72 | 375 | 0.9 | 93.35 | 4.17 | 0.82 | 0.83 | 2.28 | 1.82 | 11210 | 55 | 266 | IP20 | |
| TL2800-18/2600 | 2800 | 10 | 188 | 333 | 0.9 | 95.56 | 4.93 | 1.01 | 1.01 | 2.09 | 24 | 27500 | 120 | 269 | IP23 | |
| TL630-20/2150 | 630 | 10 | 44 | 300 | 0.9 | 92 | 5.11 | 1 | 0.97 | 2.6 | 6.0 | 14400 | 71 | 257 | IP20 | |
| TLKS 1120-20/2150 |
1120 | 6 | 127 | 300 | 0.9 | 94.43 | 4.11 | 0.81 | 0.83 | 2.19 | 8.0 | 22610 | 100 | 248 | IP54 | Double-side water cooling |
| TL1500-20/2150 | 1500 | 10 | 102 | 300 | 0.9 | 94.9 | 4.56 | 0.89 | 0.91 | 2.25 | 8.5 | 22550 | 119 | 209 | IP23 | |
| TLKS 1600-20/2150 |
1600 | 10 | 109 | 300 | 0.9 | 94.5 | 3.66 | 0.69 | 1.0 | 2.06 | 8.8 | 27550 | 116 | 227 | IP4 | Double-side water cooling |
| TL2500-24/2900 | 2500 | 10 | 168 | 250 | 0.9 | 95.53 | 5.51 | 1.11 | 1.13 | 2.25 | 40 | 35000 | 127 | 248 | IP00 | |
| TLKS 1250-40/3250 |
1250 | 10 | 86 | 150 | 0.9 | 93.55 | 4.3 | 0.98 | 0.81 | 2.57 | 59.5 | 41200 | 101 | 281 | IP44 | Forced circulating water cooling |
| TL2500-40/3250 | 2500 | 6 | 281 | 150 | 0.9 | 95.1 | 6.1 | 1.24 | 1.11 | 3.41 | 69.7 | 45000 | 163 | 266 | IP23 |

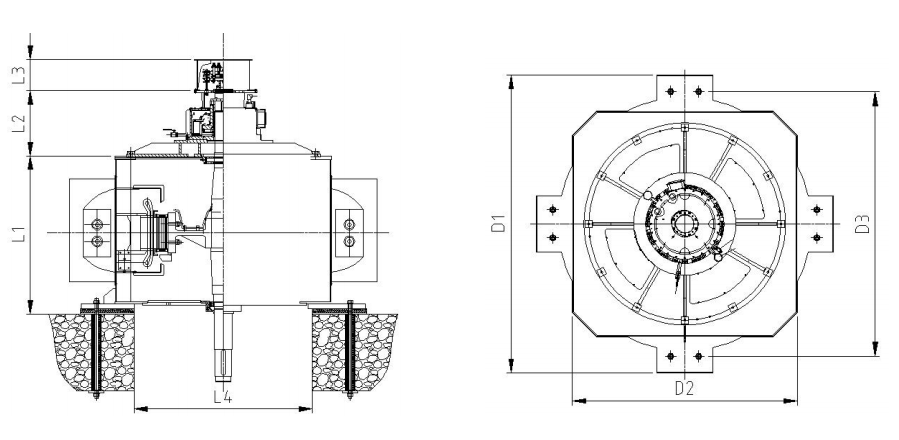

TL Series Large Vertical AC Three-Phase Synchronous Motors Outline Drawings
