YJK Series - Squirrel-Cage Enclosed Rib-Cooled High-Efficiency Asynchronous Motors

Model：

YJK500-8

Rated Speed：

Rated Power：

400-560kW

Application Scope：

Power, Metallurgy, Mining, Petrochemical, etc.

COLLECT

Shenyang Electric Machine Group Electric Machine Manufacture Co., Ltd.

Liaoning · Shenyang

Main Products：The company's main products include high-voltage, low-voltage, synchronous, asynchronous, 50 Hz, 60 Hz, standard, and special-environment motors with a center height of 315mm and above, covering 48 series, 176 varieties, and over 2,100 specifications. These include high-power energy-efficient motors, synchronous increased-safety motors, asynchronous increased-safety motors, explosion-proof motors, and small-to-medium-sized steam turbine generators.

Enter the store

︿

﹀

Details Parameters

Details Introduction

Product Structure: Horizontal

Standard Center Height: H355–H630 mm

Power Range: 180–2500 kW

Pole Range: 2P–8P

Rated Voltage: 380–10000 V

Protection Class: IP55

Cooling Methods:IC411、IC416

Mounting Type: IM B3

Starting Methods: Full-voltage start, reduced-voltage start, variable-frequency start

Operation Modes: Power-frequency operation, variable-frequency operation

Insulation Thermal Class: Class F, H, C

Suitable Industries

Power, Metallurgy, Mining, Petrochemical, etc.

Applicable Environments

Non-explosive atmospheres with ambient temperature not exceeding 40°C.

Advantages & Features

1. The frame and end shields are made of high-grade cast iron, providing high strength and rigidity. The compact design with small size is particularly suitable for confined installation spaces.

2. The windings can use different thermal class insulation materials (Class F, H, or C). After VPI (Vacuum Pressure Impregnation) treatment, they exhibit excellent electrical and mechanical properties to meet various environmental requirements.

3. The motor rotor has two structures: die-cast aluminum and copper bar. The die-cast aluminum rotor cage can drive high-inertia loads and has good electrical performance. The copper bar rotor offers higher efficiency and thermal capacity, and the motor adopts "medium-frequency welding" technology to ensure reliable operation.

4. The internal and external fans are optimized in design, ensuring effective heat dissipation while maintaining low ventilation noise to meet user requirements for quiet operation.

5. The motor's power supply and temperature-sensing protection signal interfaces can be adjusted in multiple directions to accommodate on-site wiring needs.

6. The fully enclosed structure provides high adaptability to harsh environments.

YJK/YBJK Series Three-Phase Asynchronous Motor Capacity Chart (6kV)

Frame Size	Synchronous Speed(r/min)
	3000	1500	1000	750
	Power(kW)
355	185	185	—	一
	200	200	—	—
	220	220	160	—
	250	250	185	—
	280	280	200	—
400	315	315	220	160
	355	355	250	185
	400	400	280	200
	450	450	315	220
450	500	500	355	250
	560	560	400	280
	630	630	450	315
	710	710	500	355
500	800	800	560	400
	900	900	630	450
	1000	1000	710	500
	1120	1120	800	560
560	1250	1250	900	630
	1400	1400	1000	710
	1600	1600	1120	800
	一	—	1250	900

YJK/YBJK Series Three-Phase Asynchronous Motor Capacity Chart (10kV)

Frame Size	Synchronous Speed(r/min)
	3000	1500	1000	750
	Power(kW)
450	220	220	一	一
	250	250	一	一
	280	280	—	—
	315	315	220	—
	355	355	250	一
	400	400	280	220
	450	450	315	250
	500	500	355	280
500	560	560	400	—
	630	630	450	315
	710	710	500	355
	800	800	560	400
	900	900	630	450
560	1000	1000	710	500
	1120	1120	800	560
	1250	1250	900	630
	1400	1400	1000	710
	-	-	1120	800

YJK/YBJK Series Three-Phase Asynchronous Motor Technical Data (6kV)

Type	Rated Power (kW)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Vibration (mm/s)	Noise dB(A)	Flywheel Torque (kg·m²)	Weight(kg)
YJK/YBJK 355-2	185	23	2985	94.7	0.84	0.7	7.0	2.0	2.8	109	9	2180
	200	25		94.9							10	2225
	220	27		95.1							11	2260
	250	31		95.5						111	15	2325
	280	33		95.7	0.86						17	2390
YJK/YBJK 400-2	315	37		95.9							19	2800
	355	41		96.1							20	2950
	400	47		96.2							21	3080
	450	52		96.4							22	3195
YJK/YBJK 450-2	500	58		96.6	0.87						27	3350
	560	64		96.7						112	29	3500
	630	73		96.8							30	3680
	710	82		96.9							35	3920
YJK/YBJK 500-2	800	91		97.0	0.88						65	5590
	900	102		97.1							69	5850
	1000	114		97.2							75	6040
	1120	127		97.2						113	80	6290
YJK/YBJK 560-2	1250	140	2988	97.3	0.89	0.7	7.0	2.0	2.8	113	120	5980
	1400	157		97.3							130	6160
	1600	179		97.4							135	6330
YJK/YBJK 355-4	185	22	1488	94.1	0.84	0.8	6.5	2.0	2.8	106	22	2350
	200	24		94.3							23	2520
	220	26		94.6							25	2690
	250	30		94.8						108	27	2840
	280	33		95.1							30	3080
YJK/YBJK 400-4	315	37		95.3	0.85						34	3190
	355	42		95.8							37	3380
	400	47		95.9							39	3570
	450	53		96.1							42	3750
YJK/YBJK 450-4	500	58		96.2	0.86						60	3900
	560	65		96.3						111	65	4170
	630	73		96.4							73	4450
	710	83		96.5							130	4620
YJK/YBJK 500-4	800	93		96.6							141	5530
	900	105		96.7							148	5670
	1000	116		96.8							156	5830
	1120	130		96.9						113	160	5950
YJK/YBJK 560-4	1250	143		96.9	0.87	0.7					272	6240
	1400	161		97.0							305	6450
	1600	183		97.0							326	6620
YJK/YBJK 355-6	160	20	987	94.0	0.80	0.8	6.0	2.0	2.8	102	28	2355
	185	23		94.1							31	2450
	200	25		94.3							47	2550
YJK/YBJK 400-6	220	27		94.6	0.82						50	3150
	250	31		94.7						105	53	3260
	280	34		94.8							57	3350
	315	39		94.9							64	3470
YJK/YBJK 450-6	355	43		95.5	0.83					105	73	3800
	400	49		95.7							81	4000
	450	55		95.8							90	4200
	500	61		95.9							97	4400
YJK/YBJK 500-6	560	68		96.0						108	184	5500
	630	76		96.2							191	5700
	710	86		96.3							202	5950
	800	97		96.4							218	6230
YJK/YBJK 560-6	900	107		96.5	0.84	0.7					402	6150
	1000	119		96.6							423	6370
	1120	134		96.7						110	450	6590
	1250	149		96.8						110	475	6850
YJK/YBJK 400-8	160	21	742	94.0	0.76	0.8	5.5	2.0	2.8	99	52	3150
	185	25		94.1							56	3390
	200	26		94.2							61	3550
	220	29		94.4							65	3760
YJK/YBJK 450-8	250	32	742	94.6	0.78	0.8	5.5	2.0	2.8	102	70	3750
	280	32		94.7							75	3900
	315	40		94.9							85	4170
	355	46		95.0							97	4350
YJK/YBJK 500-8	400	51		95.3	0.79						187	5450
	450	57		95.4	0.79						194	5570
	500	63		95.7	0.8						201	5740
	560	71		95.8	0.8					105	212	5950
YJK/YBJK 560-8	630	78		95.9	0.81	0.7					490	6340
	710	88		96.1							525	6470
	800	99		96.2							550	6620
	900	111		96.3							570	6800

YJK/YBJK Series Three-Phase Asynchronous Motor Technical Data (10kV)

Type	Rated Power (kW)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Locked-Rotor Torque / Rated Torque (Ts/Tn)	Locked-Rotor Current / Rated Current (Is/In)	Maximum Torque / Rated Torque (Tmax/Tn)	Vibration (mm/s)	Noise dB(A)	Flywheel Torque (kg·m²)	Weight(kg)
YJK/YBJK 450-2	220	16	2985	95.0	0.84	0.7	7.0	2.0	2.8	111	18	2950
	250	18		95.1	0.84						20	3000
	280	20		95.2	0.86						21	3150
	315	22		95.3							22	3340
	355	25		95.5							24	3440
	400	28		95.7							27	3520
	450	32		95.8							30	3750
	500	35		95.9	0.87						33	3800
YJK/YBJK 500-2	560	39		96.0						112	55	5250
	630	44		96.1							63	5400
	710	49		96.4							67	5580
	800	55		96.5	0.88						70	5700
	900	62		96.6							74	5940
YJK/YBJK 560-2	1000	69		96.7							105	2900
	1120	76		96.8	0.89						115	6050
	1250	84		96.9							122	6040
	1400	94		97.0							130	6180
YJK/YBJK 450-4	220	16	1488	94.6	0.84	0.8	6.5	2.0	2.8	108	34	3020
	250	18		94.8							38	3240
	280	20		95.1							43	3360
	315	22		95.3	0.85						52	3570
	355	25		95.4							58	3750
	400	29		95.6							65	3930
	450	32		95.7							73	4150
	500	35		95.9	0.86						79	4400
YJK/YBJK 500-4	560	39		96.3						111	135	5350
	630	44		96.4							147	5550
	710	50		96.5							152	5700
	800	56		96.6	0.87						165	5940
	900	62		96.7							175	6020
YJK/YBJK 560-4	1000	69		96.7							252	6530
	1120	77		96.8	0.88						272	6100
	1250	85		96.9						113	305	6150
	1400	96		96.9						113	335	6220
YJK/YBJK 450-6	220	16	987	94.6	0.82	0.8	6.0	2.0	2.8	105	65	3550
	250	18		94.7							75	3820
	280	21		94.8							83	4000
	315	23		95.3							94	4100
	355	26		95.4							99	4200
YJK/YBJK 500-6	400	30		95.6							170	5350
	450	33		95.7	0.83						177	5490
	500	37		95.8							184	5590
	560	41		95.9						108	191	5730
	630	46		96.0							202	5850
YJK/YBJK 560-6	710	52		96.4							370	6040
	800	58		96.5							388	6130
	900	65		96.6	0.84	0.7					402	6250
	1000	72		96.7							423	6370
	1120	80		96.8							450	6450
YJK/YBJK 450-8	220	18	742	94.3	0.75	0.8	5.5	2.0	2.8	102	73	3950
	250	20		94.4	0.75						82	4100
	280	22		94.5	0.77						91	4300
YJK/YBJK 500-8	315	25		94.6							170	5400
	355	28		94.7							177	5480
	400	31		95.0	0.79						184	5610
	450	35		95.0							191	5850
YJK/YBJK 560-8	500	38		95.4						105	485	6180
	560	43		95.8							514	6300
	630	48		95.8	0.80	0.7					535	6450
	710	54		96.0							560	6570
	800	61		96.1							585	6700

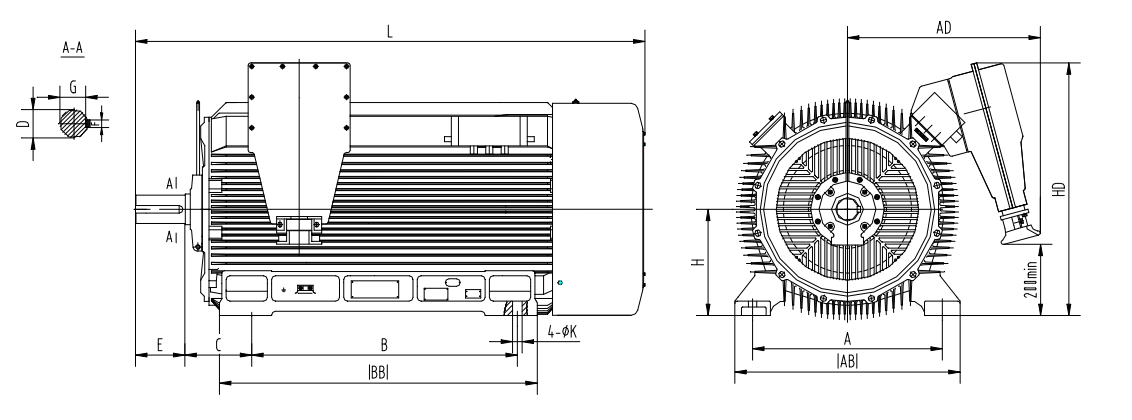

YJK/YBJK Series Three-Phase Asynchronous Motor Outline and Installation Dimensions (6kV)

Unit：mm

Frame Size	Poles	Mounting Dimensions and Tolerances																		Overall Dimensions(Limit Values)
		A		B		C		D		E		F		G		H		K		AB	AD	BB	HB	HD	L
		Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance
355	2	630	±1.40	900	±1.40	254	±4.0	75	+0.035 +0.013	140	±0.50	20	0 -0.052	67.5	0 -0.2	355	0 -1.0	28	+0.520	790	860	1110	210	1060	2000
	4-6							100		210	±0.57	28		90
400	2	710	±1.75	1000	±1.75	280		85		170	±0.50	22		76		400		35	+0.620	870		1200	290	1140	2200
	4-8							110		210	±0.57	28		100
450	2	800		1120				95		170	±0.50	25		86		450				950	930	1340	390	1250	2310
	4							120		210	±0.57	32	0 -0.062	109
	6-8							130	+0.040 +0.015	250				119
500	2	900	±2.10	1250	±2.10	425*		110	+0.035 +0.013	210		28	0 -0.052	100		500		42		1080	970	1490	470	1320	2600
	4					315		130	+0.040 +0.015	250		32	0 -0.062	119
	6-8							140				36		128	0-0.3
560	2	1000		1400		530*		130				32		119	0-0.2	560				1180	1030	1680	590	1450	2900
	4					355		150				36		138	0 -0.3
	6-8							160		300	±0.65	40		147
Note: *Dimension C applies to motors equipped with sleeve bearings. The specified tolerance does not include axial endplay.

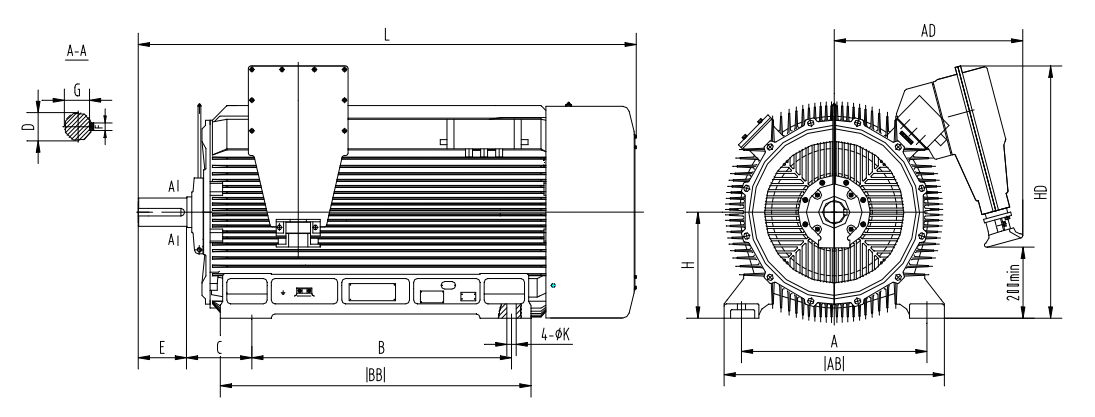

YJK/YBJK Series Three-Phase Asynchronous Motor Outline and Installation Dimensions (10kV)

Unit：mm

Frame Size	Poles	Mounting Dimensions and Tolerances																		Overall Dimensions(Limit Values)
		A		B		C		D		E		F		G		H		K		AB	AD	BB	HB	HD	L
		Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance	Basic Dimension	Tolerance
450	2	800	±1.75	1120	±1.75	280	±4.0	95	+0.035 +0.013	170	±0.50	25	0 -0.052	86	0 -0.2	450	0 -1.0	35	+0.620	950	930	1340	390	1250	2310
	4							120		210	±0.57	32	0 -0.062	109
	6-8							130	+0.040 +0.015	250				119
500	2	900	±2.10	1250	±2.10	425*		110	+0.035 +0.013	210		28	0 -0.052	100		500		42		1080	970	1490	470	1320	2600
	4					315		130	+0.040 +0.015	250		32	0 -0.062	119											2400
	6-8							140				36		128	0-0.3										2500
560	2	1000		1400		530*		130				32		119	0-0.2	560				1180	1030	1680	590	1450	2900
	4					355		150				36		138	0 -0.3										2600
	6-8							160		300	±0.65	40		147											2800
Note: *Dimension C applies to motors equipped with sleeve bearings. The specified tolerance does not include axial endplay.
