YRKK/KS Series - Wound Rotor Totally Enclosed Air-to-Air/Water-Cooled Asynchronous Motors-【价格，厂家，求购，使用说明】-矿采网，Shenyang Electric Machine Group Electric Machine Manufacture Co., Ltd.

YRKK/KS Series - Wound Rotor Totally Enclosed Air-to-Air/Water-Cooled Asynchronous Motors

Model：

YRKK900-16

Rated Speed：

Rated Power：

1120-1400kW

Application Scope：

Metallurgy, Mining, Building Materials, etc.

COLLECT

Shenyang Electric Machine Group Electric Machine Manufacture Co., Ltd.

Liaoning · Shenyang

Main Products：The company's main products include high-voltage, low-voltage, synchronous, asynchronous, 50 Hz, 60 Hz, standard, and special-environment motors with a center height of 315mm and above, covering 48 series, 176 varieties, and over 2,100 specifications. These include high-power energy-efficient motors, synchronous increased-safety motors, asynchronous increased-safety motors, explosion-proof motors, and small-to-medium-sized steam turbine generators.

Enter the store

︿

﹀

Details Parameters

Details Introduction

Product Structure: Horizontal

Standard Center Height: H355–H900 mm

Power Range: 180–5000 kW

Pole Range: 4P–16P

Rated Voltage: 380–10,000 V

Protection Class: IP44, IP54, IP55

Cooling Methods: IC511, IC611, IC616, IC666, IC81W, IC86W

Mounting Type: IM B3

Starting Method: External rotor water resistance starting, brushless liquid resistance vacuum starter starting

Operation Mode: Power-frequency operation

Insulation Class: Class F

Suitable Industries

Metallurgy, Mining, Building Materials, etc.

Applicable Environments

Suitable for various non-explosive environments.

YRKK Series (6kV) Wound Rotor Asynchronous Motor Technical Data (Design Values)

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK355-4	185	23.1	1500	92.9	0.83	2.5	295	385	3090
	200	24.9	1500	93.0	0.83	2.5	325	390	3150
	220	27.4	1500	93.2	0.83	2.5	350	395	3200
YRKK400-4	250	30.7	1500	93.4	0.84	3.3	347	435	3690
	280	33.9	1500	93.5	0.85	3.2	376	448	3800
	315	38.1	1500	93.6	0.85	3.2	410	461	3920
	355	42.4	1500	93.7	0.86	3.2	452	471	4010
	400	47.1	1500	93.9	0.87	3.2	504	476	4130
YRKK450-4	450	54.1	1500	94.1	0.85	3.5	523	523	4960
	500	60.1	1500	94.2	0.85	3.5	571	531	5050
	560	67.1	1500	94.5	0.85	3.5	609	558	5150
	630	75.3	1500	94.7	0.85	3.5	654	585	5250
YRKK500-4	710	83.8	1500	94.8	0.86	3.0	1005	442	6200
	800	94.3	1500	94.9	0.86	3.0	1082	463	6300
	900	104.8	1500	95.0	0.87	3.0	1171	482	6420
	1000	115.0	1500	95.1	0.88	3.0	1278	490	6550
YRKK560-4	1120	125.8	1500	95.2	0.90	3.1	1172	580	7350
	1250	140.2	1500	95.3	0.90	3.1	1279	592	7450
	1400	156.9	1500	95.4	0.90	3.1	1409	602	7550
YRKK630-4	1600	179.1	1500	95.5	0.90	3.0	1380	689	8620
	1800	201.3	1500	95.6	0.90	3.1	1538	695	8960
	2000	223.4	1500	95.7	0.90	3.1	1734	684	9450
YRKK710-4	2240	261.9	1500	95.7	0.86	2.0	1765	775	1220
	2500	292.0	1500	95.8	0.86	2.0	1885	830	12760
	2800	326.7	1500	95.9	0.86	2.2	2012	847	13130
	3150	367.1	1500	96.0	0.86	2.5	2175	885	14500
YRKK800-4	3550	413.3	1500	96.1	0.86	2.5	1980	975	15650
	4000	459.9	1500	96.2	0.87	2.0	2200	1056	16000
	4500	516.9	1500	96.3	0.87	2.2	2465	1093	16780

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK400-6	185	21.1	1000	92.7	0.91	2.8	282	396	3370
	200	25.3	1000	92.9	0.82	2.8	303	398	3480
	220	27.7	1000	93.1	0.82	2.8	327	406	3600
	250	31.5	1000	93.2	0.82	2.8	353	425	3770
	280	35.2	1000	93.3	0.82	2.8	386	435	3920
YRKK450-6	315	40.5	1000	93.5	0.80	3.2	408	474	4830
	355	45.0	1000	93.7	0.81	3.2	429	507	4910
	400	50.6	1000	94.0	0.81	3.0	478	513	5000
	450	56.1	1000	94.1	0.82	3.0	523	527	5100
YRKK500-6	500	61.5	1000	94.2	0.83	2.8	920	340	6650
	560	68.8	1000	94.4	0.83	2.8	955	367	6800
	630	76.2	1000	94.7	0.84	2.8	1050	375	6950
	710	85.7	1000	94.9	0.84	2.8	1185	376	7100
YRKK560-6	800	94.2	1000	95.0	0.86	2.8	1135	429	7770
	900	105.9	1000	95.1	0.86	2.8	1235	446	7870
	1000	117.4	1000	95.3	0.86	2.8	1345	453	8000
YRKK630-6	1120	131.2	1000	95.5	0.86	3.2	1322	506	9090
	1250	146.3	1000	95.6	0.86	3.2	1455	512	9810
	1400	160.0	1000	95.7	0.88	3.2	1620	514	10500
YRKK710-6	1600	189.7	1000	95.5	0.85	2.0	1241	811	11000
	1800	213.2	1000	95.6	0.85	2.0	1488	751	11500
	2000	236.6	1000	95.7	0.85	2.0	1596	779	12000
	2240	264.7	1000	95.8	0.85	2.0	1864	742	12500
YRKK800-6	2500	295.1	1000	95.9	0.85	2.2	1815	831	16500
	2800	326.4	1000	96.0	0.86	2.2	1921	910	17200
	3150	366.8	1000	96.1	0.86	2.2	2116	928	18500
	3550	412.9	1000	96.2	0.86	2.2	2352	937	19230
YRKK900-6	4000	464.8	1000	96.3	0.86	2.2	1420	1735	22500
YRKK900-6	4500	522.3	1000	96.4	0.86	2.2	1522	1824	23500

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK900-6	5000	579.8	1000	96.5	0.86	2.2	1639	1880	24600
YRKK400-8	185	24.6	750	92.6	0.78	2.4	395	283	3790
YRKK400-8	200	26.6	750	92.8	0.78	2.4	421	287	3900
YRKK450-8	220	29.2	750	93.0	0.78	3.2	530	258	4660
	250	33.1	750	93.1	0.78	3.2	580	266	4730
	280	37.1	750	93.2	0.78	3.2	630	274	4780
	315	41.7	750	93.3	0.78	3.0	687	282	4850
YRKK500-8	355	46.9	750	93.4	0.78	3.0	722	308	5750
	400	52.7	750	93.7	0.78	3.0	796	315	5860
	450	59.2	750	93.8	0.78	3.0	846	333	5990
	500	64.7	750	94.2	0.79	3.0	946	334	6120
YRKK560-8	560	71.4	750	94.3	0.80	3.0	960	359	6800
	630	79.3	750	94.4	0.81	3.0	1020	379	6900
	710	88.1	750	94.6	0.82	3.0	1094	399	7000
	800	97.8	750	94.8	0.83	3.0	1179	417	7100
YRKK630-8	900	112.7	750	94.9	0.81	2.8	1150	467	8600
	1000	125.1	750	95.0	0.81	2.8	1247	478	9000
	1120	139.9	750	95.1	0.81	2.8	1361	490	9300
	1250	156.0	750	95.2	0.81	2.8	1500	496	9550
YRKK710-8	1400	170.9	750	95.0	0.83	2.0	1182	749	11200
	1600	195.3	750	95.0	0.83	2.0	1282	793	11500
	1800	219.4	750	95.1	0.83	2.0	1399	818	11900
	2000	243.6	750	95.2	0.83	2.0	1538	823	12200
YRKK800-8	2240	269.3	750	95.3	0.84	2.0	1842	760	16300
	2500	300.2	750	95.4	0.84	2.0	2106	738	17000
	2800	335.9	750	95.5	0.84	2.0	2270	768	17700
YRKK900-8	3150	377.5	750	95.6	0.84	2.0	1325	1481	22900
	3550	420.0	750	95.7	0.85	2.0	1450	1537	23450
	4000	472.7	750	95.8	0.85	2.0	2800	950	24630

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK450-10	185	25.9	600	91.8	0.75	2.8	531	218	4570
	200	27.9	600	92.0	0.75	2.8	573	219	4640
	220	30.6	600	92.2	0.75	2.8	620	221	4710
	250	34.8	600	92.3	0.75	2.8	675	231	4780
YRKK500-10	280	38.8	600	92.6	0.75	2.8	716	245	5590
	315	43.0	600	92.7	0.76	2.8	790	250	5700
	355	47.8	600	92.9	0.77	2.8	875	255	5900
	400	53.1	600	93.0	0.78	2.8	940	268	6200
YRKK560-10	450	58.4	600	93.8	0.79	2.8	830	335	6650
	500	64.8	600	94.0	0.79	2.8	883	349	6750
	560	72.5	600	94.1	0.79	2.8	947	364	6850
	630	80.4	600	94.2	0.80	2.8	1020	381	6950
YRKK630-10	710	91.7	600	94.3	0.79	2.8	1240	343	10310
	800	103.2	600	94.4	0.79	2.8	1353	354	10430
	900	116.0	600	94.5	0.79	2.8	1488	361	10580
	1000	128.6	600	94.7	0.79	2.8	1653	361	10700
YRKK710-10	1120	137.7	600	94.3	0.83	2.8	1601	482	11300
	1250	153.5	600	94.4	0.83	2.2	1602	543	11600
	1400	171.8	600	94.5	0.83	2.2	1778	556	12000
	1600	196.1	600	94.6	0.83	2.2	1796	632	12500
YRKK800-10	1800	217.7	600	94.7	0.84	2.2	1526	632	16500
	2000	241.7	600	94.8	0.84	2.2	1697	741	17200
	2240	270.4	600	94.9	0.84	2.2	1910	825	18210
YRKK900-10	2500	301.5	600	95.0	0.84	2.2	1912	811	23500
	2800	336.9	600	95.2	0.84	2.2	2186	904	24020
	3150	379.0	600	95.2	0.84	2.2	2184	882	25980
	3550	421.7	600	95.3	0.85	2.2	2549	1007	26050
YRKK450-12	185	28.6	500	91.5	0.68	2.8	505	231	4770
YRKK450-12	200	30.4	500	91.7	0.69	2.8	549	230	4850

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK500-12	220	32.9	500	91.9	0.70	2.8	533	259	5650
	250	37.3	500	92.2	0.70	2.8	580	270	5750
	280	41.6	500	92.5	0.70	2.8	630	280	5860
	315	46.0	500	92.8	0.71	2.8	696	281	5990
YRKK560-12	355	50.4	500	92.9	0.73	2.8	820	267	6430
	400	55.9	500	93.1	0.74	2.8	878	283	6530
	450	61.9	500	93.3	0.75	2.8	937	299	6630
YRKK630-12	500	68.7	500	93.4	0.75	2.8	1062	283	8480
	560	76.8	500	93.5	0.75	2.8	1136	295	9250
	630	86.4	500	93.6	0.75	2.8	1223	308	9550
	710	95.9	500	93.7	0.76	2.8	1323	321	9900
YRKK710-12	800	105.3	500	93.7	0.78	2.2	1283	451	11500
	900	118.4	500	93.8	0.78	2.2	1283	465	12000
	1000	131.4	500	93.9	0.78	2.2	1411	481	13020
	1120	147.0	500	94.0	0.78	2.2	1412	543	13560
YRKK800-12	1250	163.9	500	94.1	0.78	2.2	1100	548	16500
	1400	181.0	500	94.2	0.79	2.2	1259	621	17000
	1600	206.7	500	94.3	0.79	2.2	1362	580	18560
	1800	232.3	500	94.4	0.79	2.2	1475	660	18950
YRKK900-12	2000	257.8	500	94.5	0.79	2.2	1475	740	22500
	2240	288.4	500	94.6	0.79	2.2	1650	820	23120
	2500	317.5	500	94.7	0.80	2.2	1758	958	24600
YRKK710-16	500	71.4	375	92.3	0.73	2.2	1075	292	11500
	560	79.9	375	92.4	0.73	2.2	1257	278	12000
	630	89.6	375	92.7	0.73	2.2	1518	248	12560
	710	100.9	375	92.8	0.73	2.2	1513	295	13120
YRKK800-16	800	112.0	375	92.9	0.74	2.2	1020	502	16560
	900	125.8	375	93.0	0.74	2.2	1113	531	16660
	1000	139.7	375	93.1	0.74	2.2	1329	476	17050
	1120	156.3	375	93.2	0.74	2.2	1360	570	18230
YRKK900-16	1250	174.2	375	93.3	0.74	2.2	1274	615	24240
	1400	194.9	375	93.4	0.74	2.2	1401	632	25030
	1600	222.5	375	93.5	0.74	2.2	1557	641	26980

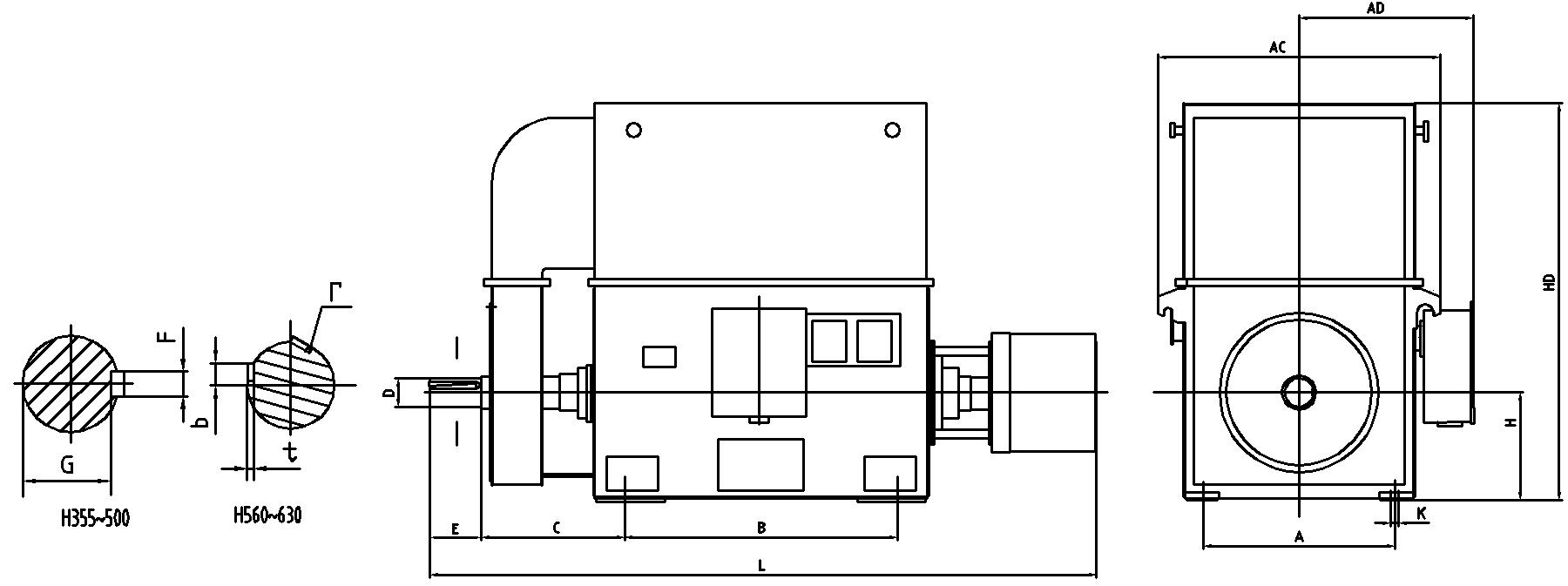

YRKK Series H355–H630 (6kV) Three-Phase Asynchronous Motor Outline and Installation Dimensions

Frame Size	Poles	Mounting Dimensions												Overall Dimensions(Limit Values)
Frame Size	Poles	A	B	C	D	E	F	G	t	b	r	H	K	AC	AD	HD	L
355	4	630	900	560	100	210	28	90	/	/	/	355	28	1120	1000	1500	2550
400	4-8	710	1000	630	110	210	28	100	/	/	/	400	35	1260	1050	1700	2750
450	4	800	1120	670	120	210	32	109	/	/	/	450	35	1420	1100	1900	3000
450	6-12	800	1120	670	130	250	32	119	/	/	/	450	35	1420	1100	1900	3000
500	4	900	1250	710	130	250	32	119	/	/	/	500	42	1600	1150	2200	3250
500	6-12	900	1250	710	140	250	36	128	/	/	/	500	42	1600	1150	2200	3250
560	4	1000	1400	800	150	250	/	/	11.4	39.7	0.7-1.0	560	42	1800	1250	2400	3850
560	6-12	1000	1400	800	160	300	/	/	12.4	42.8	0.7-1.0	560	42	1800	1250	2400	3850
630	4	1120	1600	900	170	300	/	/	12.4	44.2	0.7-1.0	630	48	2000	1300	2700	4100
630	6-12	1120	1600	900	180	300	/	/	12.4	45.6	0.7-1.0	630	48	2000	1300	2700	4100

Note: Due to continuous technical improvements and updates to domestic/international standards, dimensions and technical parameters in this document are subject to change without prior notice. For orders, the final dimensions shall be based on the mutually confirmed outline drawings.

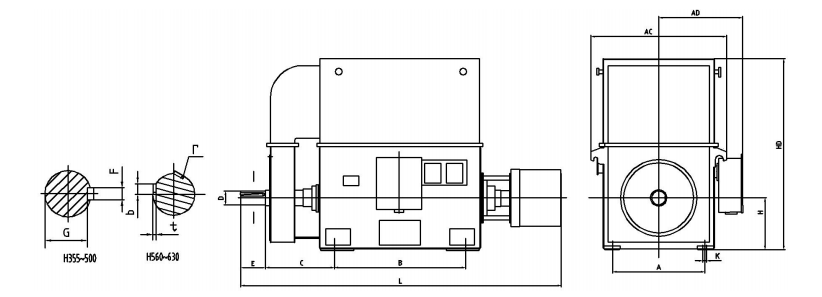

YRKK Series H710–H1000 (6kV) Three-Phase Asynchronous Motor Outline and Installation Dimensions

Frame Size	Mounting Dimensions										Overall Dimensions(Limit Values)
Frame Size	A	B	C	D	E	t	b	r	H	K	AC	HD	L
710	1400	1800	530	200	350	14	51	0.7-1.0	710	56	2600	3000	4200
800	1600	2000	530	220	350	16	57.1	1.2-1.6	800	56	2800	3100	4800
900	1800	2400	600	250	410	18	64.6	1.2-1.6	900	66	3000	3600	4900
1000	2000	2500	600	280	470	20	72.1	2.0-2.5	1000	66	3300	3900	5400

YRKK Series (10kV) Wound Rotor Asynchronous Motor Technical Data (Design Values)

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK450-4	250	18.7	1500	93.1	0.83	2.8	390	410	4590
	280	20.9	1500	93.3	0.83	2.8	418	420	4680
	315	23.1	1500	93.6	0.84	2.8	454	435	4780
	355	26.0	1500	93.8	0.84	2.8	497	448	4870
	400	29.2	1500	94.1	0.84	2.8	546	457	4960
	450	32.8	1500	94.2	0.84	2.8	624	449	5080
YRKK500-4	500	36.3	1500	94.6	0.84	2.8	686	443	5800
	560	40.6	1500	94.9	0.84	2.8	766	447	6230
	630	45.0	1500	95.0	0.85	2.8	785	488	6370
	710	50.7	1500	95.1	0.85	2.8	785	555	6325
	800	57.1	1500	95.2	0.85	2.8	915	535	6700
YRKK560-4	900	63.3	1500	95.4	0.86	2.8	1024	550	7150
	1000	70.3	1500	95.5	0.86	2.8	1128	555	7320
	1120	78.7	1500	95.6	0.86	2.8	1235	568	7500
	1250	86.7	1500	95.7	0.87	2.8	1462	516	8500
YRKK630-4	1400	97.0	1500	95.8	0.87	2.8	1554	564	8800
	1600	110.7	1500	95.9	0.87	2.8	1786	570	9100
	1800	124.6	1500	95.9	0.87	2.8	1895	585	9400
YRKK710-4	2000	140.6	1500	95.5	0.86	2.2	1581	780	11800
	2240	157.5	1500	95.5	0.86	2.2	1674	815	12500
	2500	173.5	1500	95.6	0.87	2.2	1802	846	13200
	2800	194.4	1500	95.6	0.87	2.2	1953	874	13900
YRKK800-4	3150	218.4	1500	95.7	0.87	2.2	1530	1046	15800
	3550	245.9	1500	95.8	0.87	2.2	1609	1334	16600
	4000	276.8	1500	95.9	0.87	2.2	1787	1353	17500
	4500	311.1	1500	96.0	0.87	2.2	2010	1345	18400
YRKK450-6	220	17.1	1000	92.8	0.80	2.8	498	277	4690
	250	19.4	1000	93.0	0.80	2.8	525	295	4800
	280	21.7	1000	93.2	0.80	2.8	573	303	4980

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK450-6	315	24.3	1000	93.3	0.80	2.8	630	308	5200
YRKK500-6	355	27.3	1000	93.6	0.80	2.8	610	365	6010
	400	30.7	1000	93.9	0.80	2.8	632	397	6130
	450	34.5	1000	94.1	0.80	2.8	705	397	6210
	500	37.8	1000	94.2	0.81	2.8	781	392	6330
	560	42.2	1000	94.4	0.81	2.8	835	413	6440
YRKK560-6	630	46.7	1000	94.7	0.82	2.8	1015	380	6960
	710	52.6	1000	94.9	0.82	2.8	1088	390	7130
	800	58.5	1000	95.1	0.83	2.8	1221	400	7300
	900	65.6	1000	95.2	0.83	2.8	1367	401	8140
YRKK630-6	1000	71.9	1000	95.4	0.84	2.8	1163	538	9520
	1120	80.4	1000	95.6	0.84	2.8	1282	547	9700
	1250	90.2	1000	95.7	0.84	2.8	1428	550	10500
YRKK710-6	1400	99.8	1000	95.2	0.85	2.8	1376	631	11500
	1600	113.9	1000	95.3	0.85	2.8	1533	637	12200
	1800	128.0	1000	95.4	0.85	2.8	1753	660	12900
	2000	142.1	1000	95.5	0.85	2.2	2046	592	13600
YRKK800-6	2240	159.0	1000	95.6	0.85	2.2	1855	754	16500
	2500	175.2	1000	95.7	0.86	2.2	2013	774	16900
	2800	196.0	1000	95.8	0.86	2.2	2199	793	17400
	3150	220.3	1000	95.9	0.86	2.2	2420	808	17900
YRKK900-6	3550	248.0	1000	96.0	0.86	2.2	1354	1622	22500
	4000	279.2	1000	96.1	0.86	2.2	1468	1684	23800
	4500	314.0	1000	96.2	0.86	2.2	1680	1721	25200
YRKK500-8	220	18.5	750	92.8	0.74	2.5	610	226	5520
	250	21.0	750	92.9	0.74	2.5	660	235	5690
	280	23.5	750	93.1	0.74	2.5	733	240	5870
	315	26.3	750	93.3	0.74	2.5	794	248	6040
	355	28.8	750	93.6	0.76	2.5	840	265	6230

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK500-8	400	32.4	750	93.8	0.76	2.5	901	276	6450
YRKK560-8	450	35.9	750	94.1	0.77	2.6	901	309	6790
	500	39.8	750	94.2	0.77	2.6	975	315	7070
	560	43.9	750	94.4	0.78	2.6	1057	325	7250
	630	49.3	750	94.6	0.78	2.6	1151	336	7590
YRKK630-8	710	54.7	750	94.8	0.79	2.7	900	494	8000
	800	60.8	750	95.0	0.80	2.7	966	519	8200
	900	67.5	750	95.1	0.81	2.7	1042	541	8420
	1000	74.0	750	95.2	0.82	2.0	1095	572	8720
YRKK710-8	1120	83.4	750	94.5	0.82	2.0	1103	603	11200
	1250	93.0	750	94.6	0.82	2.0	1159	686	11500
	1400	104.2	750	94.6	0.82	2.0	1276	696	12000
	1600	118.8	750	94.8	0.82	2.0	1418	713	12500
YRKK800-8	1800	131.9	750	94.9	0.83	2.0	1879	593	16700
	2000	146.6	750	94.9	0.83	2.0	2024	608	17600
	2240	163.7	750	95.2	0.83	2.0	2229	623	18500
YRKK900-8	2500	180.5	750	95.2	0.84	2.0	1201	1295	25000
	2800	202.2	750	95.2	0.84	2.0	1325	1315	26000
	3150	227.4	750	95.2	0.84	2.0	1474	1325	27000
YRKK500-10	200	17.7	600	91.8	0.71	2.8	681	203	5820
	220	19.4	600	92.1	0.71	2.8	747	211	6120
	250	22.0	600	92.4	0.71	2.8	826	213	6380
	280	24.6	600	92.7	0.71	2.8	885	223	6440
YRKK560-10	315	27.2	600	92.8	0.72	2.9	831	260	6480
	355	30.1	600	93.3	0.73	2.9	831	259	6530
	400	33.4	600	93.5	0.74	2.9	875	285	6650
	450	37.0	600	93.7	0.75	2.9	875	313	6800
	500	41.0	600	93.9	0.75	2.9	968	321	7130
YRKK630-10	560	45.2	600	94.1	0.76	3.0	1141	301	9930

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK630-10	630	50.8	600	94.2	0.76	3.0	1252	315	10400
	710	56.5	600	94.3	0.77	3.0	1380	322	11000
	800	63.5	600	94.5	0.77	3.0	1565	314	11600
	900	70.5	600	94.5	0.78	3.0	1742	317	12000
YRKK710-10	1000	76.6	600	94.2	0.80	2.0	1280	487	12250
	1120	85.7	600	94.3	0.80	2.0	1425	489	12850
	1250	94.4	600	94.4	0.81	2.0	1597	485	13500
	1400	106.9	600	94.5	0.80	2.0	1829	472	14200
YRKK800-10	1600	120.7	600	94.5	0.81	2.0	1572	638	16500
	1800	135.8	600	94.5	0.81	2.0	1798	624	17400
	2000	148.9	600	94.6	0.82	2.0	1938	644	18400
YRKK900-10	2240	166.5	600	94.7	0.82	2.0	1957	702	24000
YRKK900-10	2500	185.1	600	95.1	0.82	2.0	2120	723	26500
YRKK560-12	220	19.4	500	92.1	0.71	2.5	582	237	7100
	250	22.0	500	92.2	0.71	2.5	641	244	7320
	280	24.7	500	92.3	0.71	2.5	714	245	7640
	315	27.7	500	92.4	0.71	2.5	831	236	7890
	355	31.1	500	92.8	0.71	2.5	943	236	8300
YRKK630-12	400	34.5	500	93.0	0.72	2.5	766	311	9710
	450	38.7	500	93.3	0.72	2.5	841	335	9880
	500	42.2	500	93.6	0.73	2.5	965	325	10020
	560	47.2	500	93.9	0.73	2.5	1111	316	10200
	630	52.3	500	94.0	0.74	2.5	1195	325	10900
YRKK710-12	710	58.5	500	93.5	0.75	2.0	823	536	12400
	800	64.9	500	93.6	0.76	2.0	905	548	13200
	900	71.9	500	93.8	0.77	2.0	1005	556	13900
	1000	79.7	500	94.1	0.77	2.0	1150	540	14500
YRKK800-12	1120	88.0	500	94.2	0.78	2.0	913	764	16650
YRKK800-12	1250	98.1	500	94.3	0.78	2.0	1050	738	17500

Type	Rated Power (kW)	Rated Current (A)	Synchronous Speed (r/min)	Efficiency (%)	Power Factor (cosφ)	Maximum Torque / Rated Torque (Tmax/Tn)	Rotor Voltage (V)	Rotor Current (A)	Weight(kg)
YRKK800-12	1400	109.9	500	94.3	0.78	2.0	1225	722	18300
YRKK900-12	1600	123.9	500	94.4	0.79	2.0	1337	525	21500
	1800	139.2	500	94.5	0.79	2.0	1486	532	22700
	2000	154.7	500	94.5	0.79	2.0	1650	532	24000
YRKK710-16	500	43.2	375	92.8	0.72	2.0	1061	300	14500
	560	48.4	375	92.8	0.72	2.0	1156	308	15200
	630	54.4	375	92.9	0.72	2.0	1273	315	15850
YRKK800-16	710	60.4	375	92.9	0.73	2.0	874	508	6250
	800	68.0	375	93.1	0.73	2.0	973	515	17100
	900	76.4	375	93.2	0.73	2.0	1095	514	18000
	1000	84.7	375	93.4	0.73	2.0	1254	498	18900
YRKK900-16	1120	94.7	375	93.5	0.73	2.0	1410	488	19850
	1250	105.6	375	93.6	0.73	2.0	1550	496	21450
	1400	118.3	375	93.6	0.73	2.0	1723	500	22800

YRKK Series H355–H630 (10kV) Three-Phase Asynchronous Motor Outline and Installation Dimensions

Frame Size	Poles	Mounting Dimensions												Overall Dimensions(Limit Values)
Frame Size	Poles	A	B	C	D	E	F	G	t	b	r	H	K	AC	AD	HD	L
450	4	630	900	315	100	210	28	90	/	/	/	355	28	1100	800	1170	2400
450	4-8	710	1000	335	110	210	28	100	/	/	/	400	35	1150	850	1330	2420
450	4	800	1120	355	120	210	32	109	/	/	/	450	35	1300	900	1475	2640
450	6-12	800	1120	355	130	250	32	119	/	/	/	450	35	1300	900	1475	2640
500	4	900	1250	475	130	250	32	119	/	/	/	500	42	1420	965	1655	2920
500	6-12	900	1250	475	140	250	36	128	/	/	/	500	42	1420	965	1655	2920
560	4	1000	1400	500	150	250	/	/	11.4	39.7	0.7	560	42	1600	1100	1850	3200
560	6-12	1000	1400	500	160	300	/	/	12.4	42.8	0.7	560	42	1600	1100	1850	3200
630	4	1120	1600	530	170	300	/	/	12.4	44.2	0.7	630	48	1800	1200	2050	3460
630	6-12	1120	1600	530	180	300	/	/	12.4	45.6	0.7	630	48	1800	1200	2050	3460

YRKK Series H710–H1000 (10kV) Three-Phase Asynchronous Motor Outline and Installation Dimensions

Frame Size	Mounting Dimensions										Overall Dimensions(Limit Values)
Frame Size	A	B	C	D	E	t	b	r	H	K	AC	HD	L
710	1400	1800	530	200	350	14	51	0.7-1.0	710	56	2600	3000	4200
800	1600	2000	530	220	350	16	57.1	1.2-1.6	800	56	2800	3100	4800
900	1800	2400	600	250	410	18	64.6	1.2-1.6	900	66	3000	3600	4900
1000	2000	2500	600	280	470	20	72.1	2.0-2.5	1000	66	3300	3900	5400
