I.Product Introduction
PY Series Spring Cone Crusher, is one of the earliest conical crusher, which is made by digestion and absorption of various types of taper technology in the world with advanced international levels in 80s. It is suitable for metallurgical industry, construction industry, road construction industry,chemical industry and phosphate industry. Suitable materials: iron ore, copper ore, limestone, quartz, granite, diabase and so on.
II.Product advantage
1. The particle size of the material is good
2. The rolling mortar wall has uniform wear and long service life
3. Low cost of product maintenance
4. The product runs stably with high reliability.

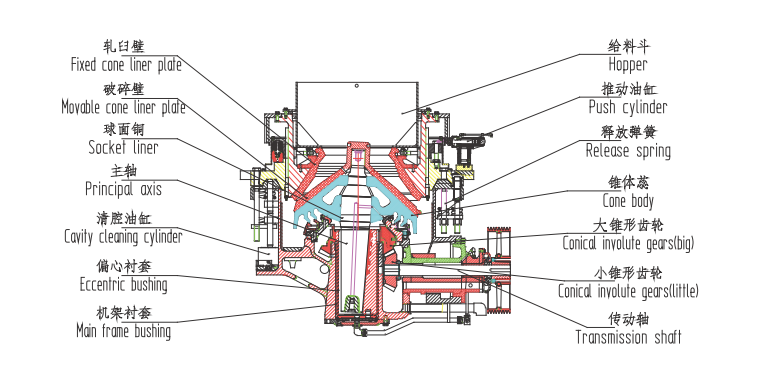

III.Main Structure
IV.Specifications
|
Model |
Cone Diameter (mm) |
Maximum feeding size (mm) |
Adjusting range (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Overall dimension (mm) |
|
PYB900 |
900 |
115 |
15-50 |
50-90 |
55 |
2692×1640×2350 |
|
PYZ900 |
900 |
60 |
5-20 |
20-65 |
55 |
2692×1640×2350 |
|
PYD900 |
900 |
45 |
3-13 |
15-50 |
55 |
2692×1640×2350 |
|
PYB1200 |
1200 |
145 |
20-50 |
110-168 |
110 |
2790×1878×2844 |
|
PYZ1200 |
1200 |
100 |
8-25 |
42-135 |
110 |
2790×1878×2844 |
|
PYD1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
2790×1878×2844 |
|
PYB1750 |
1750 |
215 |
25-60 |
280-480 |
160/185 |
3910×2894×3809 |
|
PYZ1750 |
1750 |
185 |
10-30 |
115-320 |
160/185 |
3910×2894×3809 |
|
PYD1750 |
1750 |
85 |
5-15 |
75-230 |
160/185 |
3910×2894×3809 |
|
PYB2200 |
2200 |
300 |
30-60 |
490-800 |
250/315 |
4622×3302×4470 |
|
PYZ2200 |
2200 |
230 |
10-30 |
200-580 |
250/315 |
4622×3302×4470 |
|
PYD2200 |
2200 |
100 |
5-15 |
120-340 |
250/315 |
4622×3302×4470 |
