PFC SERIES IMPACT CRUSHER
Model：
PFC1010
Size of Feeding Port：
Maximum Feed Particle Size：
Throughput：
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
PFC series impact crusher, as the latest product of our company, absorbs the latest technology at home
and abroad, has a series of advanced structure, combined with wear resistance, strong rotor and special grinding cavity. Low maintenance and easy operation. PFC series impact crusher is a new type of impact crusher with the functions of hydraulic cover opening and discharge port adjustment. Compared with the traditional pf impact crusher, PFC hydraulic impact crusher has the advantages of large feed port, large crushing ratio, high productivity efficiency, convenient maintenance and so on.
II.Product advantage
1. High crushing ratio.crushing ratio can reach 20:1
2. High productivity: optimize technical parameters to maxi- mize production
3. Wear resistant parts --- hammer, impact lining and side lining are made of wear-resistant alloy
4. Hydraulicoperationopening and closing -- quickreplace- ment of vulnerable parts
5. Adjust the discharge port hydraulically .

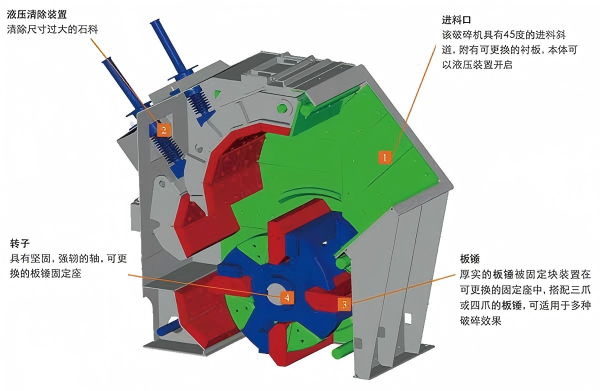

III.Main Structure
IV. Specifications
|
Model |
Feed Opening Size (mm) |
Spec of Rotor (mm) |
Motor Power (kw) |
Output of different closed side outlets (TPH) |
|||||
|
19 |
25 |
38 |
51 |
63 |
76 |
||||
|
PFC1010 |
930×800 |
1020×914 |
55-75 |
60 |
80 |
94 |
110 |
120 |
135 |
|
PFC1012 |
1160×800 |
1020×1143 |
90-110 |
75 |
100 |
120 |
137 |
150 |
170 |
|
PFC1016 |
1540×800 |
1020×1524 |
110-132 |
95 |
116 |
145 |
160 |
186 |
215 |
|
PFC1408 |
1065×778 |
1330×762 |
55-75 |
76 |
102 |
121 |
140 |
152 |
173 |
|
PFC1410 |
1065×930 |
1330×914 |
90-110 |
92 |
124 |
145 |
169 |
184 |
209 |
|
PFC1412 |
1160×1065 |
1330×1143 |
132-160 |
116 |
155 |
184 |
211 |
230 |
261 |
|
PFC1416 |
1540×1065 |
1330×1524 |
185-220 |
193 |
254 |
303 |
344 |
382 |
422 |
|
PFC1420 |
1844×1065 |
1330×1848 |
220-250 |
250 |
330 |
394 |
448 |
496 |
548 |
|
PFC1520 |
2040×995 |
1500×2000 |
350-500 |
320 |
423 |
466 |
535 |
615 |
718 |
