VERTICAL SHAFT IMPACT CRUSHER
Model：
VSI7611
Size of Feeding Port：
Maximum Feed Particle Size：
Soft Material：＜35；Hard Material：＜30
Throughput：
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
VSI series high efficient vertical shaft impact crusher, new sand making machine) is, on the basis of introduction of foreign advanced technology, combined with the actual situation of domestic manufacturing of sand production, research and development production high sand making equipment has the domestic leading level. This equipment is especially suitable for high - level construction, highway (railway) construction, municipal engineering, large water conservancy facilities, concrete mixing station and other areas to provide high quality gravel aggregate.
II.Product advantage
1. The product is a cube shape suitable for artificial sand and stone shaping;
2. The hydraulic open cover device is convenient for opening the machine;
3. Vulnerable parts are consumed with low consumption and long service life;
4. The equipment work noise is low, the dust is little, benefit environmental protection.

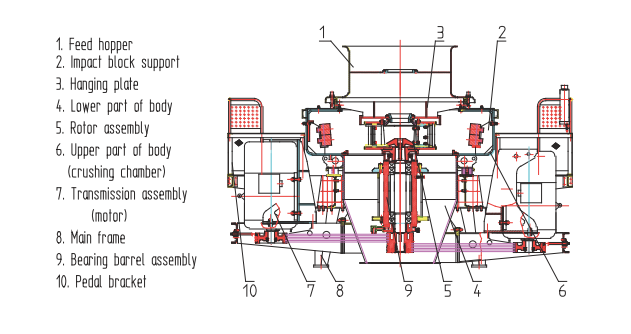

III.Main Structure
IV.Specifications
|
Model |
VSI7611 |
VSI8518 |
VSI9526 |
VSI1140 |
|
|
production capacity (t/h) |
Cascade and Central Feeding |
120~180 |
200~260 |
300~380 |
450~520 |
|
Fully Central Feeding |
60~90 |
100~130 |
150~190 |
220~260 |
|
|
Max. Feeding Size(mm) |
Soft Material |
<35 |
<40 |
<45 |
<50 |
|
Hard Material |
<30 |
<35 |
<40 |
<45 |
|
|
Rotation Speed(r/min) |
1700~1890 |
1520~1690 |
1360~1510 |
1180~1310 |
|
|
Double Motor Power(kw) |
2×55 |
2×90 |
2×132 |
2×200 |
|
|
Overall Dimension L×W×H(mm) |
3700×2150×2100 |
4140×2280×2425 |
4560×2447×2778 |
5000×2700×3300 |
|
|
Thin Oil Lubrication Station |
Double Oil Pumps Motor's Power (kw) |
2×0.25 |
|||
|
Safty Assurance |
Two oil pumps complement each other to ensure oil supply; No oil flow, oil pressure automatic shutdown; Water cooling; Motor heating start in winter |
||||
|
Overall Dimension(mm) |
820×520×1270 |
||||
|
Power of Oil Tank Heater(kw) |
2 |
||||
