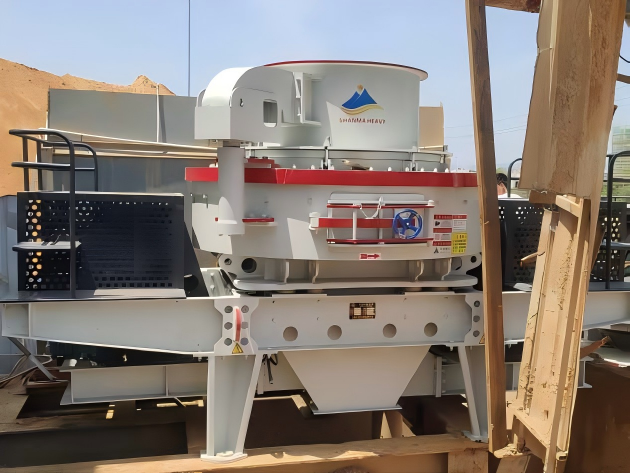

VERTICAL SHAFT IMPACT CRUSHER
Model：
5X7615
Size of Feeding Port：
Maximum Feed Particle Size：
Soft material：35mm；Hard material：30mm
Throughput：
Side and central feeding：150-280t/h；Fully central feeding：70-140t/h
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
5X series vertical shaft impact crusher is a new generation product developed and produced on the basis of VSI impact crusher, which is widely combined with the use status of domestic mine sand and gravel plants. The optimized deep cavity rotor is adopted to increase the material throughput by about 30%; The outstanding launch port and more smooth curve design inside reduce the flow resistance of materials, greatly improve the material passing capacity and increase the machine capacity.
II.Product advantage
1. Deep cavity rotor, higher throughput and higher output;
2. Combined throwing head design, low production cost;
3. Automatic control host of air cooled thin oil lubrication station;
4. Diamond impact block, reduce the wear rate of parts.
III.Main Structure
IV.Specifications
|
Model |
Soft material |
Hard material |
Side and central feeding |
Fully central feeding |
Speed (r/min) |
Power (kw) |
Overall dimension (mm) |
|
Maximum feeding size (mm) |
Maximum feeding size (mm) |
Throughput(t/h) |
|||||
|
5X7615 |
35 |
30 |
150-280 |
70-140 |
1700-1900 |
75×2 |
4100×2330×2300 |
|
5X8522 |
40 |
35 |
240-380 |
120-190 |
1500-1700 |
110×2 |
4140×2500×2700 |
|
5X9532 |
45 |
40 |
350-540 |
180-280 |
1300-1510 |
160×2 |
4560×2600×2900 |
|
5X1145 |
50 |
45 |
500-640 |
250-360 |
1100-1310 |
220×2 |
5000×2790×3320 |
|
5X1150 |
45 |
55 |
413-442 |
344-368 |
1000-1300 |
250×2 |
5500×2750×3950 |
|
5X1263 |
50 |
60 |
545-583 |
454-486 |
900-1200 |
315×2 |
5700×2980×4190 |
