Y SERIES VIBRATING SCREEN

Model：

2Y1548

Number of Sieve Layer：

Cover Surface：

Throughput：

50-208t/h

COLLECT

Shanghai Shanma Heavy Industry Equipment Co., Ltd.

Shanghai · Shanghai

Main Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.

Enter the store

︿

﹀

Details Parameters

Details Introduction

I.Product Introduction

Y series vibrating Screenis a multi-layer, high-efficiency and new-type vibrating screen, specially

designed for screening stones in quarry. And it can also be used for product grading of coal dressing, ore dressing, building materials, electric power, and chemical engineering sectors, etc.

II.Product advantage

1. The amplitude is strong and weak can be adjusted, the screening is clear, the screening efficiency is high;

2. Grooved rivet joints, durable, smooth operation;

3. Strong vibration force, low power consumption, low noise.;

4. High frequency, large dip Angle, high screening efficiency and large capacity.

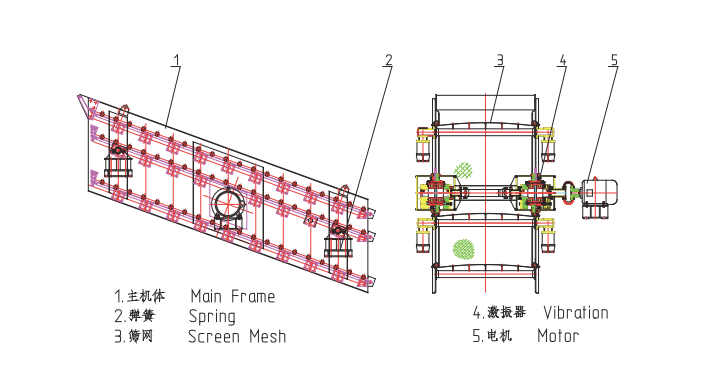

III.Main Structure

IV.Specifications

Model	Deck dimension (mm)	Decks	Top deck max.opening (mm)	Speed (r/min)	Double amplitude (mm)	Capacity (t/h)	Power (kw)	Overall dimension (mm)
2Y1548	1500×4800	2	5-50	970	8	50-208	15	5120×2590×3060
3Y1548	1500×4800	3	5-50	970	8	50-250	15	5120×2590×3540
2Y1860	1800×6000	2	5-80	970	8	50-300	22	6209×3689×3652
3Y1860	1800×6000	3	5-80	970	8	50-350	22	6209×3689×4131
2Y2160	2100×6000	2	5-150	730	6-8	100-500	22	6209×4072×3652
3Y2160	2100×6000	3	5-150	730	6-8	100-500	30	6209×4072×4131
2Y2460	2400×6000	2	5-150	730	6-8	150-700	30	6209×4456×3652
3Y2460	2400×6000	3	5-150	740	6-8	150-700	37	6209×4456×4131
2Y2470	2400×7000	2	5-150	740	6-8	150-700	30	7102×4464×4048
3Y2470	2400×7000	3	5-150	740	6-8	150-700	37	7102×4464×4456
2Y3072	3000×7200	2	5-150	970	6-8	200-700	22×2	7149×4659×4048
3Y3072	3000×7200	3	5-150	970	6-8	230-800	30×2	7149×4680×4527
