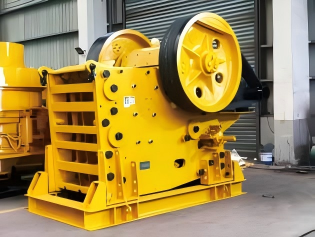

PEC SERIES JAW CRUSHER

Model：

PEC80

Size of Feeding Port：

Maximum Feed Particle Size：

Throughput：

55-75T/hour

COLLECT

Shanghai Shanma Heavy Industry Equipment Co., Ltd.

Shanghai · Shanghai

Main Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.

Enter the store

︿

﹀

Details Parameters

Details Introduction

I.Product Introduction

PEC series jaw crusher is a new generation product successfully developed by using the most advanced crushing technology and research results in the world, based on the long-term experience in the design and manufacturing of jaw crusher and the finite element analysis method. This product has the world advanced level. Compared with the traditional jaw crusher, PEC series jaw crusher pays more attention to details in design and manufacture, adopts high-strength materi- als and advanced manufacturing technology, and has the advantages of higher structural strength, higher equipment reliability and lower use cost.

II.Product advantage

1. Superior cavity design, large feeding granularity;

2. Heavy duty moving jaw assembly is durable;

3. Design of movable jaw guard plate;

4. Integral bearing seat;

5. Convenient and quick adjustment of ore drainage opening;

6. Integrated motor installation.

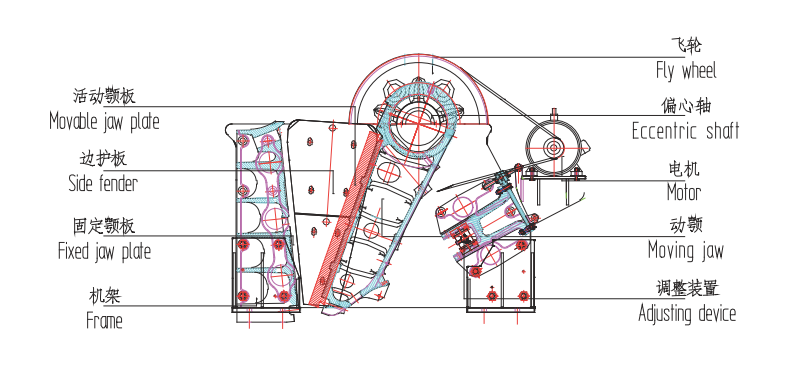

III.Main Structure

IV.Specifications

		PEC80	PEC100	PEC96	PEC106	PEC116	PEC110	PEC120	PEC125	PEC140	PEC150	PEC160
Width of feeding port (mm)		800	1000	930	1060	1150	1100	1200	1250	1400	1400	1600
Feed depth (mm)		510	760	580	700	800	850	870	950	1070	1200	1200
Motor power (kw)		75	110	90	110	132	160	160	160	200	200	250
speed (rpm)		350	260	330	280	260	230	230	220	220	220	220
Product size (mm)	Tight edge discharge port(mm)	T/hour	T/hour	T/hour	T/hour	T/hour	T/hour	T/hour	T/hour	T/hour	T/hour	T/hour
0-60	40	55-75	-	-	-	-	-	-	-	-	-	-
0-75	50	65-95	-	-	-	-	-	-	-	-	-	-
0-90	60	80-110	-	105-135	-	-	-	-	-	-	-	-
0-105	70	95-135	125-175	125-155	150-185	165-205	160-220	175-240	-	-	-	-
0-120	80	110-150	145-200	140-180	165-215	180-235	175-245	195-270	-	-	-	-
0-135	90	125-175	160-220	160-200	190-235	205-255	190-275	210-305	-	-	-	-
0-150	100	140-190	180-250	175-225	205-265	225-285	215-295	235-325	245-335	-	-	-
0-185	125	175-245	220-310	220-280	255-325	270-345	260-360	285-395	295-405	325-445	340-470	-
0-225	150	210-290	265-365	265-335	305-385	320-405	310-430	340-475	345-475	380-530	400-555	430-610
0-260	175	245-335	310-430	310-390	355-450	370-465	350-490	385-540	395-545	435-605	460-635	495-695
0-300	200	-	355-490	-	395-500	410-520	405-555	445-610	445-615	495-685	520-720	560-790
0-340	225	-	-	-	-	-	-	-	-	495-685	550-760	580-800
0-375	250	-	-	-	-	-	-	-	545-755	610-840	640-880	685-965
0-410	275	-	-	-	-	-	-	-	-	-	-	745-1055
0-450	300	-	-	-	-	-	-	-	-	-	-	815-1145
