ZSW/GZD SERIES VIBRATING FEEDER
Model：
GZD180×80
Size of Feed Outlet：
Maximum Feed Particle Size：
300mm
Feeding Capacity：
30-80t/h
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
ZSW series vibrating feeder is the tool feeding the lump, granular and powdery materials from the warehouse or hopper into the material receiving equipment in a uniform and continuous manner or by certain amount. In crushing lines, this product can feed the materials in a continuous and uniform manner to the crushing machine and screen the materials primarily.
II.Product advantage
1. Special grate design, for the primary screening of materials and strong feeding capacity;
2. Stable vibration, reliable work and long service life;
3. Low working noise, enclosed structure fuselage to prevent dust pollution;
4. Vibration energy consumption is low and energy saving is significant.

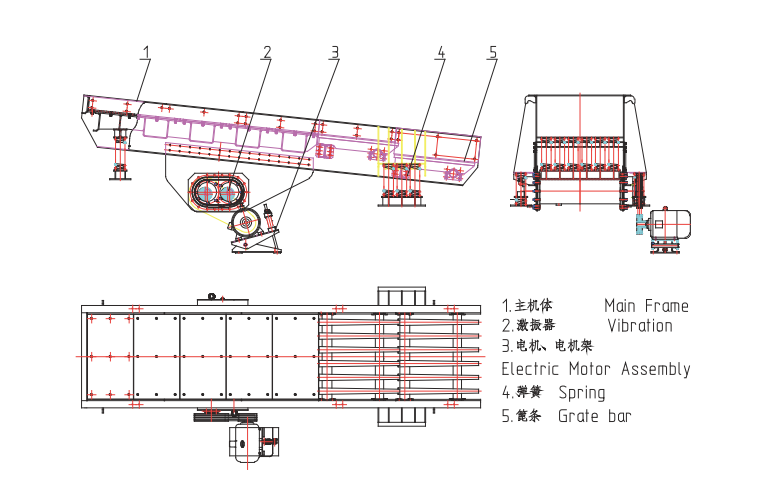

III.Main Structure
IV.Specifications
|
Model |
Size of funnel (mm) |
Maximum feed size (mm) |
Capacity (t/h) |
Speed (r/min) |
Power (kw) |
Overall dimension (mm) |
|
GZD180×80 |
1800×800 |
300 |
30-80 |
500-720 |
1.5×2 |
2200×1100×800 |
|
GZD250×75 |
2500×750 |
300 |
70-130 |
500-720 |
1.5×2 |
2500×1460×780 |
|
GZD300×90 |
3000×900 |
300 |
80-150 |
500-800 |
2.2×2 |
3050×1430×1550 |
|
ZSW380×96 |
3800×960 |
500 |
90-200 |
500-800 |
11 |
3880×2240×1880 |
|
ZSW420×110 |
4200×1100 |
580 |
150-350 |
500-800 |
15 |
4300×2450×2010 |
|
ZSW490×110 |
4900×1100 |
580 |
180-380 |
500-800 |
15 |
4980×2450×2010 |
|
ZSW490×130 |
4900×1300 |
750 |
250-450 |
500-800 |
22 |
4980×2710×2050 |
|
ZSW600×130 |
6000×1300 |
800 |
400-700 |
500-800 |
22/30 |
6160×2710×2050 |
|
ZSW600×150 |
6000×1500 |
1000 |
460-800 |
500-800 |
30/37 |
6160×2910×2050 |
|
ZSW600×180 |
6000×1800 |
1200 |
600-1000 |
500-800 |
37/45 |
6086×3252×2421 |
