PE SERIES JAW CRUSHER

Model：

PE-400×600

Size of Feeding Port：

400×600mm

Maximum Feed Particle Size：

350mm

Throughput：

16-55t/h

COLLECT

Shanghai Shanma Heavy Industry Equipment Co., Ltd.

Shanghai · Shanghai

Main Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.

Enter the store

︿

﹀

Details Parameters

Details Introduction

I.Product Introduction

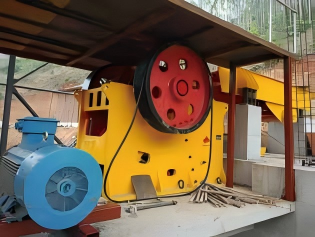

PE Series Jaw Crusher is usually used as primary crusher in various crushing production lines. This jaw crusher simulates the movement of animals' two jaws, extruding, twisting and grinding the materials in the crushing cavity through the opening and closing of two jaw plates (moving jaw and fixed jaw).It is used in mining, metallurgy, construction, highway, railway, water conservancy and chemical industry. Suitable for granite, marble, basalt, limestone, quartz, river pebbles, iron ore, copper ore, etc.

II. Product advantage

1. Cast steel jaw assembly to improve machine stability;

2. Simplified machine structure and convenient maintenance;

3. High quality wear resistant materials, reduce the replace- ment frequency of accessories;

4. Deep cavity crushing, improving crushing efficiency.

III.Main Structure

IV.Specifications

Model	Feed opening (mm)	Max. Feed Edge (mm)	Discharge Opening Range (mm)	Processing Capacity (t/h)	Motor Power (kw)	Overall dimension (mm)
PE-400×600	400×600	350	40-100	16-55	30-37	1565×1732×1586
PE-500×750	500×750	425	50-100	45-100	55	1890×1916×1870
PE-600×900	600×900	500	65-160	70-120	55-75	2305×1840×2298
PE-750×1060	750×1060	630	80-140	130-260	110	2450×2472×2840
PE-870×1060	870×1060	660	200-260	190-336	110	2870×2430×2800
PE-900×1200	900×1200	750	120-240	220-380	132-185	3435×2904×2990
PE-1000×1200	1000×1200	850	220-340	230-380	160-185	3535×2904×2990
PE-1200×1500	1200×1500	1000	150-300	400-800	315	4587×3342×3553
PE-1300×1600	1300×1600	1100	160-320	450-1100	400	4450×3950×4500
PEX-250×1000	250×1000	210	25-60	16-50	30	1530×1992×1380
PEX-250×1200	250×1200	210	25-60	20-60	37	1900×2192×1430
PEX-300×1300	300×1300	250	20-90	16-105	55	1750×2320×1718
PEX-500×1500	500×1500	425	50-120	60-160	90	2250×2680×1920
