PF SERIES IMPACT CRUSHER
Model：
PF-1010
Size of Feeding Port：
350mm
Maximum Feed Particle Size：
Throughput：
50-80t/h
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
PF Series Impact Crusher uses impact energy to crush the materials. The rotor rotates at a high speed
under the driving force of motor. The materials entering from the inlet impacts the plate hammer on the rotor and would be crushed under the high-speed impact of the plate hammer. The crushed materials would be thrown back to theliner plate for crushing again. Finally, the materials are discharged from the outlet of PF Impact Crushers.
II. Product advantage
1. The adjustment is convenient and the output granularity is controllable;
2. Bigger crushing ratio and better grain shape;
3. Use high chromium plate hammer to resist impact, wear resistance and long service life;
4. Various materials can be broken, which can be widely used.

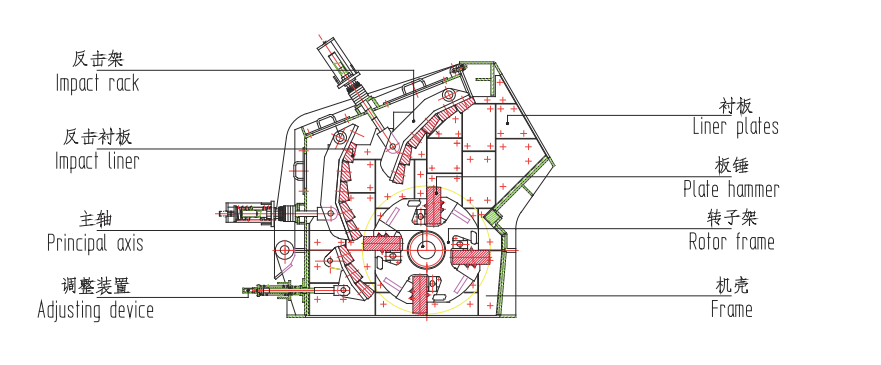

III.Main Structure
IV.Specifications
|
Model |
Spec of Rotor (mm) |
Feed Opening Size (mm) |
Max. Feed Edge (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Overall Dimensions (mm) |
|
PF-1010 |
φ1000×1050 |
400×1080 |
350 |
50-80 |
55-75 |
2400×2250×2660 |
|
PF-1210 |
φ1250×1050 |
400×1080 |
350 |
70-120 |
110-132 |
2696×2338×2890 |
|
PF-1214 |
φ1250×1400 |
400×1430 |
350 |
95-160 |
132-160 |
2690×2688×2890 |
|
PF-1315 |
φ1320×1500 |
800×1530 |
350 |
100-180 |
180-220 |
3007×2749×2556 |
|
PF-1320 |
φ1320×2000 |
800×2030 |
400 |
280-320 |
280-315 |
3007×3249×2556 |
|
PF-1515 |
φ1500×1500 |
800×1530 |
350 |
220-280 |
280-315 |
3553×2835×3277 |
|
PF-1620 |
φ1640×2000 |
800×2030 |
400 |
400~550 |
250×2 |
3505×3740×3085 |
