HP SERIES HYDRAULIC CONE CRUSHER
Model：
HP200
Adjustment range of Discharge Port：
Maximum Feed Size：
Throughput：
90-250t/h
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
HP series multi-cylinder hydraulic cone crusher is the most advanced technology research and development production of highly efficient cone crusher, such as fixed axis, eccentric sleeve around the spindle and pressure, the optimized structure greatly improves the performance and crushing performance, at the same time, multi-cylinder hydraulic cone crusher hydraulic lubrication system not only can guarantee the stable operation of the system, and make the system more intelligent control. Is suitable for crushing medium hardness and medium above all kinds of ores and rocks, etc., such as limestone, iron ore, cobble, non-ferrous metal ore, granite, basalt, limestone, quartzite, sand-stone and so on.
II.Product advantage
1. Strong processing ability, high efficiency and low energy consumption;
2. With the principle of laminating crushing, the finished product has good granularity;
3. The structure is simple, the discharge port adjustment is convenient and quick;
4. The equipment has strong bearing capacity, small volume efficiency and low noise.

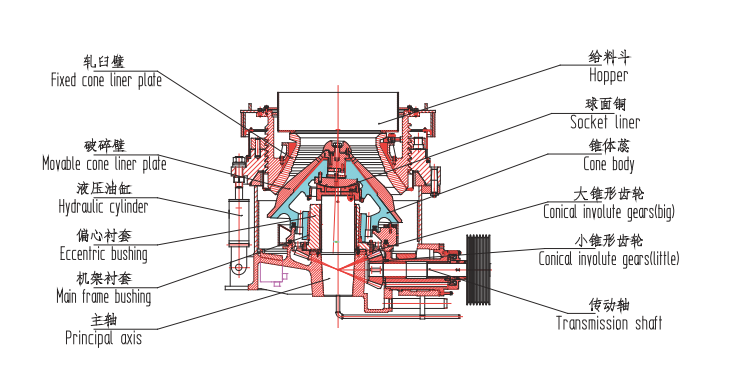

III.Main Structure
IV.Specifications
|
Model |
Cavity |
Standard type |
Short Type |
Motor Power (kw) |
Processing Capacity (t/h) |
||
|
Feeding Size (mm) |
Discharging Size (mm) |
Feeding Size (mm) |
Discharging Size (mm) |
||||
|
HP200 |
粗(C) |
185 |
19 |
76 |
10 |
132-200 |
90-250 |
|
中(m) |
125 |
17 |
54 |
6 |
|||
|
细(F) |
95 |
13 |
23 |
6 |
|||
|
超细(BF) |
— |
— |
10 |
5 |
|||
|
HP300 |
超粗(BC) |
230 |
25 |
— |
— |
180-250 |
110-440 |
|
粗(C) |
210 |
20 |
75 |
10 |
|||
|
中(m) |
150 |
15 |
50 |
8 |
|||
|
细(F) |
105 |
10 |
20 |
6 |
|||
|
超细(BF) |
— |
— |
20 |
6 |
|||
|
HP400 |
超粗(BC) |
295 |
30 |
— |
— |
280-355 |
140-630 |
|
粗(C) |
250 |
25 |
90 |
10 |
|||
|
中(m) |
195 |
20 |
50 |
8 |
|||
|
细(F) |
110 |
14 |
40 |
6 |
|||
|
超细(BF) |
— |
— |
30 |
6 |
|||
|
HP500 |
超粗(BC) |
330 |
30 |
— |
— |
355-450 |
175-790 |
|
粗(C) |
285 |
25 |
90 |
13 |
|||
|
中(m) |
200 |
20 |
55 |
10 |
|||
|
细(F) |
133 |
16 |
40 |
8 |
|||
|
超细(BF) |
— |
— |
35 |
6 |
|||
|
HP800 |
超粗(BC) |
353 |
32 |
— |
— |
550-630 |
260-1200 |
|
粗(C) |
297 |
32 |
155 |
13 |
|||
|
中(m) |
267 |
25 |
92 |
10 |
|||
|
细(F) |
219 |
16 |
33 |
6 |
|||
|
超细(BF) |
— |
— |
— |
— |
|||
