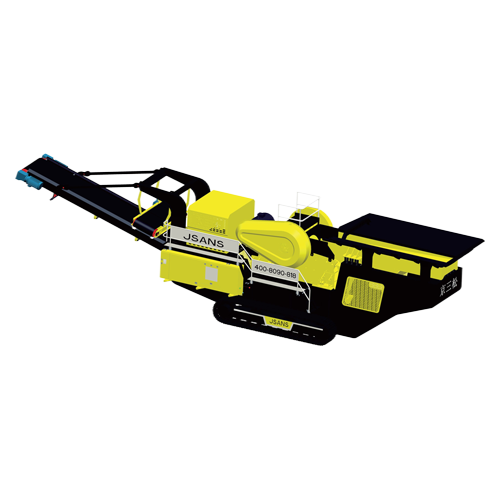

PRIMARY MOBILE CRUSHING PLANT
Capacity of Feeding Equipment：
Maximum Charge-in Granularity of Crusher：
500mm
Discharge Size of Crusher：
Crusher Power：
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
1. Equipped with super large jaw crusher and impact crusher, large crushing ratio;
2. Compact frame and chassis shorten the transportation length;
3. Pre screening function makes the whole machine more powerful;
4. Adaptive host device switching to meet customer needs;
5. Specially equipped outrigger hydraulic lifting, effectively reduce the workload.
II.Specifications
|
Model |
Feeder equipment |
Crushing equipment |
Main belt conveyor |
Hopper volume, (m³) |
Max.feeding size, (mm) |
Transportation dimension(mm) |
|
YG936E69 |
ZSW9638 |
PE600×900 |
B800×8.3m |
5.3 |
500 |
12150×2600×3950 |
|
YG1139E710 |
ZSW1142 |
PE750×1060 |
B1000×8.5m |
7 |
630 |
13000×2850×4400 |
|
YG936F1214 |
ZSW9638 |
PF1214 |
B800×8.3m |
5.3 |
500 |
12150×2600×3980 |
|
YG1142F1315 |
ZSW1142 |
PF1315 |
B1200×9.5m |
8 |
600 |
14600×3100×4500 |
