PCZ SERIES HEAVY HAMMER CRUSHER
Model：
PCZ1308
Grain Size of Feedstock：
≤600mm
Production Capacity：
100-160t/h
Total Weight：
COLLECT
Shanghai Shanma Heavy Industry Equipment Co., Ltd.
Shanghai · ShanghaiMain Products：jaw crusher, counterattack crusher, compound cone crusher, single cylinder hydraulic cone crusher, vertical shaft impact crusher (sand making machine), vibrating screen and complete sets of gravel sand production line.
Enter the store
︿
﹀
Details Parameters
Details Introduction
I.Product Introduction
PCZ series heavy hammer crusher, can be broken stone, once formed, no secondary crushing process,
can reduce the cost of about 40%, energy consumption, low investment. It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry. It is especially suitable for stone materials with crushing limestone and compressive strength less than 200MPa medium hardness. Multi-cylinder hydraulic cone crusher.
II.Product advantage
1. The feeding port is large, the material hardness is high, and the stone powder is few;
2. High manganese steel and high chromium cast iron have strong wear resistance;
3. The grain size of the feed is large and the grain size of the material is small;
4. The sieve plate is used to control the grain size of the material and the finished product.

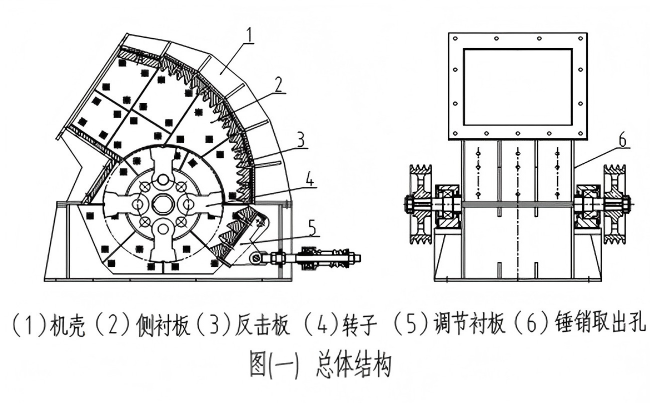

III.Main Structure
IV.Specifications
|
Model |
Spec of Rotor (mm) |
Feed Opening Size (mm) |
Maximum feeding size (mm) |
Capacity (t/h) |
Power (kw) |
Overall dimension (mm) |
|
PCZ1308 |
1310×790 |
850×800 |
≤600 |
100-160 |
132 |
2818×2100×2390 |
|
PCZ1510 |
1500×900 |
1000×90 |
≤700 |
160-210 |
132×2 |
3260×2414×2750 |
|
PCZ1512 |
1500×1160 |
1200×900 |
≤750 |
250-320 |
160×2 |
3260×2624×2750 |
|
PCZ1615 |
1650×1452 |
1500×1200 |
≤1000 |
360-420 |
200×2 |
3456×2915×3185 |
|
PCZ1620 |
1660×1900 |
2000×1200 |
≤1200 |
800-1000 |
315×2 |
3500×3100×3200 |
|
PCZ1820 |
1800×1964 |
2000×1200 |
≤1200 |
1000-1200 |
450×2 |
3270×3210×3520 |
