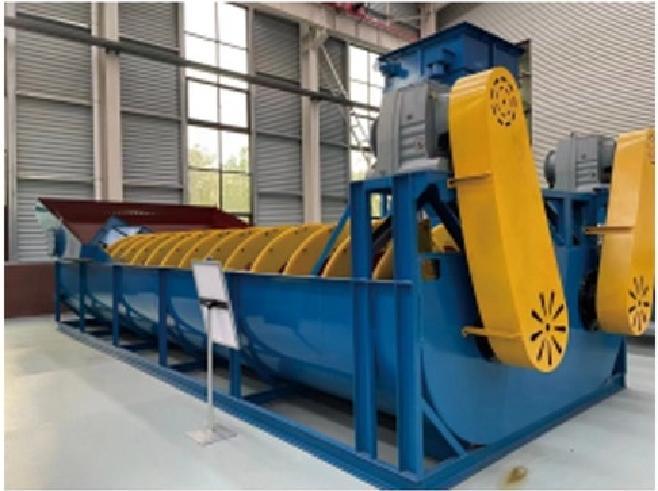

The Spiral Sand Washer is a type of sand washing machine. The sand and stone are stirred by the spiral device in the equipment, so that the mud and sand are separated. The mud and water are discharged from the overflow weir, and the sand and stone are gradually scrubbed under the action of the spiral device and discharged from the top discharge port, so as to achieve the scrubbing and separation effect of the sand and stone.
I.Performance Features
1. Simple structure, stable operation, and low power consumption.
2. The fully enclosed transmission device has a good sealing structure. Separate bearing from water and material to avoid machine damage.
3. Adjustable weir plate, catering to a wide variety of materials with a high degree of cleanliness.
4. Less material loss, high cleaning efficiency, good dehydration effect.
5. Uses a nano-modified polyurethane spiral blade, which has a long wear-resistant lifespan.
II.Technical Specifications
|
Model |
Processing Capacity (t/h) |
Number of Spirals |
Trough Length (mm) |
Power(Kw) |
|
XS-LX-0760 |
20-40 |
1 |
6000 |
7.5 |
|
XS-LX-0920 |
30-60 |
1 |
8000 |
11 |
|
XS-LX-1120 |
40-80 |
1 |
8000 |
18.5 |
|
XS-LX-1500 |
50-100 |
1 |
8000 |
22 |
|
XS-2LX-0920 |
60-120 |
2 |
8000 |
11×2 |
|
XS-2LX-1120 |
80-160 |
2 |
8000 |
18.5×2 |
|
XS-2LX-1500 |
120-150 |
2 |
8000 |
22×2 |
