I. Product Performance and Features
1. Maximum capacity: 500 t/h without desliming.
2. Feed size: 110mm-0.23mm.
3. High sorting accuracy: For 0.5mm grade Ep1=0.02-0.03kg/L and Ep2=0.03-0.06 Kg/L; For 0.5-0.25mm grade Ep ≤0.1Kg/L.
4. Depending on the nature of the raw coal and the internal forces, the cyclone can be made in segments using wear-resistant materials like high-alumina ceramics, high-chromium alloy, silicon carbide, etc. Our lining options are available to deliver long wear life in abrasive, high-ash-content refuse applications.
5. It utilizes an adjustment mechanism combining the sizing of the dust collector and the insertion depth of the vortex finder in the secondary DMC, achieving online adjustment of the actual sorting density of the secondary DMC.
II.Main Technical Parameters
|
Model |
Cylinder diameter（mm） First stage/Second stage |
Maximum particle size（mm） |
Pressure（MPa） |
Capacity（t/h） |
Medium circulation volume （m³/h） |
|
NTMC 500/350 |
500 / 350 |
20 |
0.05–0.08 |
30–50 |
150–250 |
|
NTMC 600/400 |
600 / 400 |
30 |
0.06–0.10 |
40–60 |
250–350 |
|
NTMC 710/500 |
710 / 500 |
35 |
0.08–0.12 |
60–100 |
350–450 |
|
NTMC 780/550 |
780 / 550 |
40 |
0.09–0.13 |
80–140 |
400–550 |
|
NTMC 850/600 |
850 / 600 |
45 |
0.10–0.14 |
100–160 |
500–650 |
|
NTMC 900/650 |
900 / 650 |
50 |
0.12–0.16 |
120–180 |
600–800 |
|
NTMC 1000/710 |
1000 / 710 |
55 |
0.15–0.18 |
160–220 |
800–1000 |
|
NTMC 1100/780 |
1100 / 780 |
60 |
0.18–0.22 |
200–280 |
900–1200 |
|
NTMC 1200/850 |
1200 / 850 |
70 |
0.20–0.28 |
260–350 |
1200–1400 |
|
NTMC 1300/920 |
1300 / 920 |
80 |
0.22–0.30 |
320–400 |
1400–1800 |
|
NTMC 1400/1000 |
1400 / 1000 |
90 |
0.28–0.38 |
400–500 |
1800–2200 |
|
NTMC 1500/1100 |
1500 / 1100 |
100 |
0.30–0.40 |
500–600 |
2200–2600 |

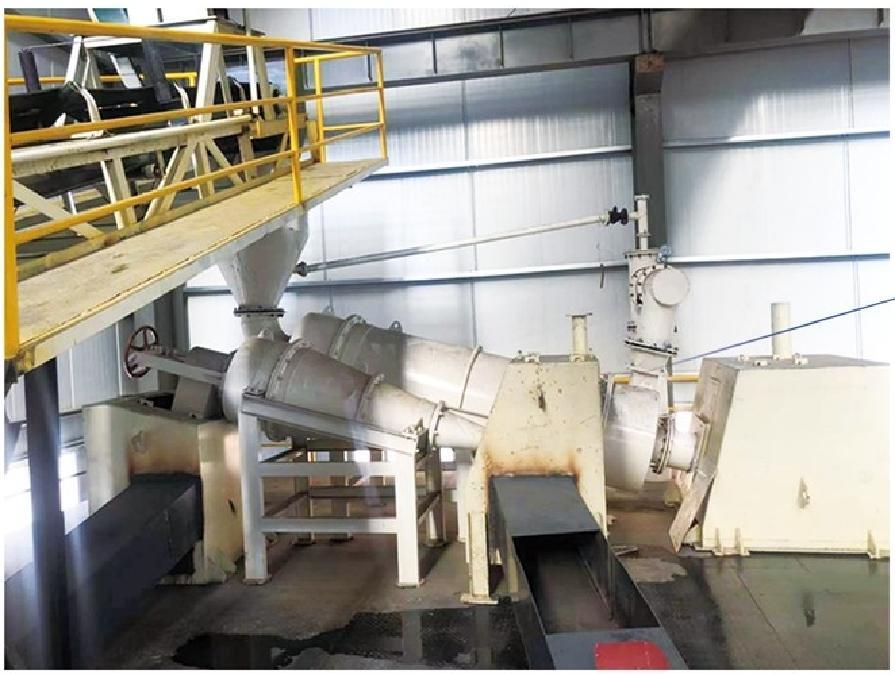

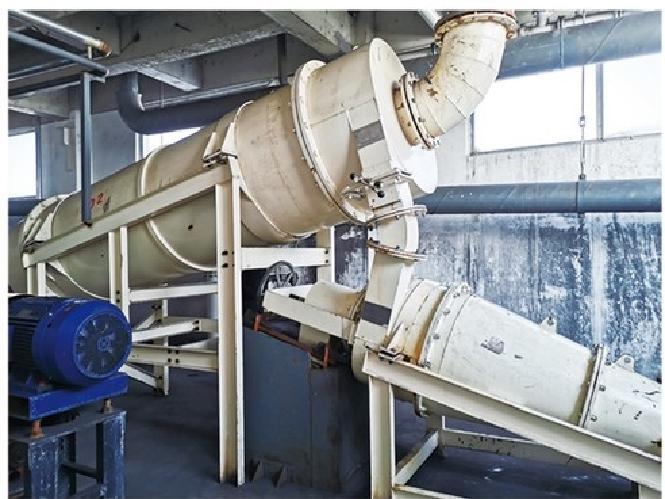

III.Field application examples
