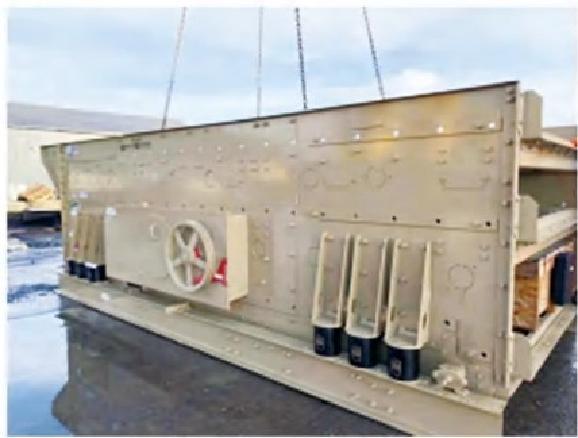

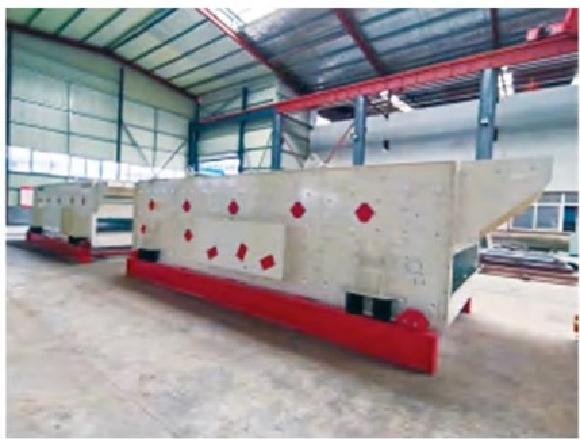

The three-axis elliptical horizontal vibrating screen, also known as the horizontal vibrating screen or simply horizontal screen, is a multi-layered, novel vibrating screen. It's horizontally mounted, taking up minimal on-site space; it boasts excellent sieving capabilities, large processing capacity, and high screening efficiency. The amplitude is adjustable, the installation height is small, and the vibration trajectory can be selected according to the actual material condition, such as the elliptical trajectory. In addition, the amplitude of the screen is also adjustable, and the installation height is small.

Developed based on the inclined circular vibrating screen and the linear vibrating screen, the three-axis elliptical horizontal vibrating screen provides strong vibratory force and a large amplitude to achieve ideal product output. Its three-axis drive allows the screen to produce the desired elliptical motion, combining the advantages of both the circular and linear vibrating screens. Moreover, its elliptical trajectory and amplitude can be adjusted depending on the actual material conditions, making it especially beneficial for hard-to-sieve materials.

I.Technical Features

1. Large processing capacity and high screening efficiency.

2. The operational trajectory of the screen is elliptical, ensuring smooth motion and low power consumption.

3. Dual amplitude (15-19mm), vibration direction (30°-60°), and vibration frequency (645-875r/min) are adjustable, making adjustments convenient and straightforward. The material screening process is smooth, with minimal chances of hole clogging or blockages.

4. The three-axis drive forces synchronized excitation, ensuring the screen operates in a stable condition, especially beneficial for screenings requiring a large processing capacity.

5. The three-axis drive improves the stress condition of the screen frame, reduces the load on individual bearings, evenly distributes force on the side plates, diminishes stress concentration points, and enhances the stress conditions of the screen frame. This increases the screen's reliability and lifespan and provides a theoretical basis for the screen's larger design.

6. Due to its horizontal installation, it significantly reduces the height of the unit, meeting the requirements of large and medium-sized mobile screening units.

7. The bearings utilize thin oil lubrication, effectively lowering the bearing temperature and extending their lifespan.

8. The screen bed adopts a fishbone arc-shaped screen surface. For the same screening area, the output of the elliptical vibrating screen can be increased by 1.3 to 2 times.

II.Application Scope

The three-axis elliptical horizontal vibrating screen is suitable for various mines, quarries, and mobile screening stations. It accommodates a wide range of materials, such as limestone, dolomite, basalt, granite, diabase, andesite, shale, quartz stone, river pebbles, iron ore, coking coal, non-ferrous metal ores, cobblestones, etc. Combining the advantages of the inclined circular vibrating screen and the horizontal linear vibrating screen, it offers excellent sieving capabilities, large processing capacity, and minimal installation height. It is the ideal equipment for various mines, quarries, and mobile screening stations.
