Hammer Crusher
Model：
PC1600×1600
Grain Size of Feedstock：
500×1785mm
Production Capacity：
220-280t/h
Total Weight：
22800kg
COLLECT
Chenzhou Hengda Mineral Processing Machinery Co., Ltd.
Hunan · ChenzhouMain Products：Mineral processing equipment
Enter the store
︿
﹀
Details Parameters
Details Introduction
This machine crushes by the collisions between high-speed hammer and materials, it makes the materials break down and form a broken. It has features of simple structure, high crushing ratio, and high production efficiency, etc. And it can perform two kinds of crushing: Dry and Wet. It also can apply to the mining, cement, coal, metallurgy, building materials, and other industries, such as intermediate grinding or fine crushing of intermediate hardness and brittleness materials. This device can change the discharge size by adjusting the grate gap to meet the requirements of different customers.
MAIN MODELS AND TECHNICAL PARAMETERS:
| Model and specification | Rotor working diameter (mm) | Rotor working length (mm) | Feed inlet size(mm) | Max feed size（mm） | Discharge Particle Size(mm) | Processing capacity（t/h） | Motor power(kW) | Rotor speed (r/min) | Weight(kg) | Overall dimensions (L×W×H) |
| PC400×400 | 400 | 400 | 145×450 | 100 | ≤10 | 5-18 | 7.5 | 1500 | 900 | 844×942×878 |
| PC600×400 | 600 | 400 | 295×450 | 100 | ≤15 | 10-12 | 18.5 | 1000 | 1030 | 1054×972×1117 |
| PC600×600 | 600 | 600 | 295×570 | 100 | ≤15 | 12-18 | 45 | 1000 | 2140 | 1315×840×1501 |
| PC800×600 | 800 | 600 | 350×570 | 120 | ≤15 | 20-25 | 55 | 1000 | 2450 | 1515×2586×1040 |
| PC800×800 | 800 | 800 | 350×850 | 120 | ≤15 | 35-45 | 55 | 1000 | 3050 | 1515×2831×1040 |
| PC1000×800 | 1000 | 800 | 580×850 | 200 | ≤15 | 25-40 | 110 | 1000 | 6500 | 3206×2210×1515 |
| PC1000×1000 | 1000 | 1000 | 580×1060 | 200 | ≤15 | 40-80 | 132 | 1000 | 7590 | 3514×2230×1515 |
| PC1250×800 | 1250 | 800 | 650×850 | 200 | ≤15 | 20-50 | 132 | 750 | 11700 | 2630×1780×2050 |
| PC1250×1250 | 1250 | 1250 | 650×1330 | 200 | ≤20 | 90-110 | 185 | 750 | 13200 | 2630×2180×2050 |
| PC1400×1400 | 1400 | 1400 | 1050×1540 | 250 | ≤20 | 120-170 | 280 | 750 | 17200 | 2790×2800×2310 |
| PC1600×1600 | 1600 | 1600 | 500×1785 | 350 | ≤20 | 220-280 | 450 | 600 | 22800 | 3350×3120×2660 |

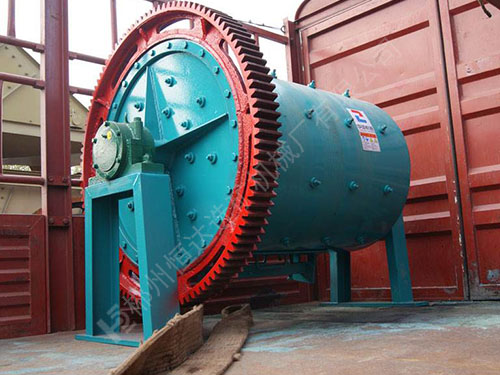

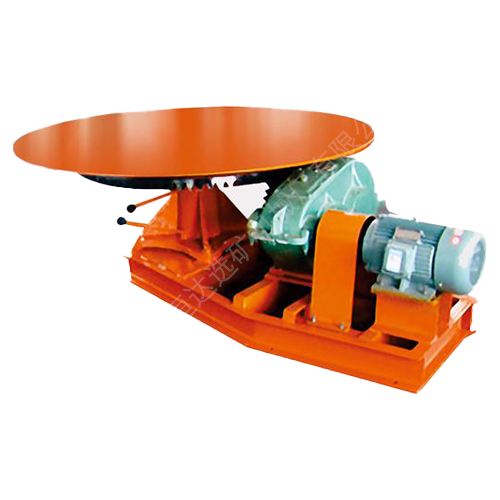

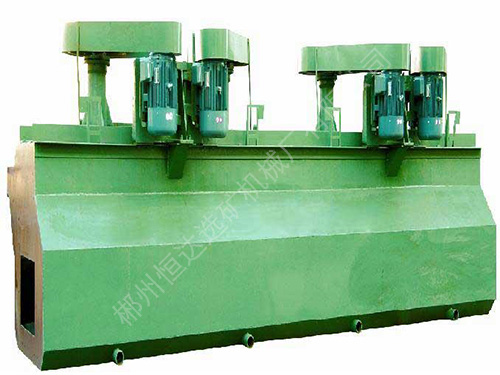

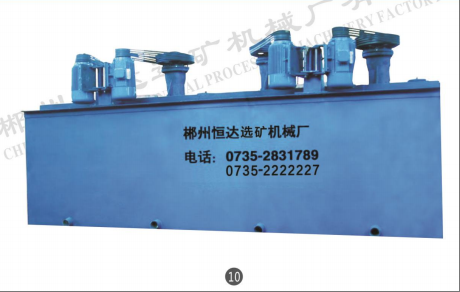

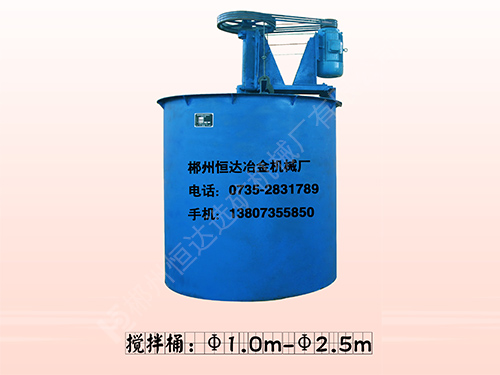

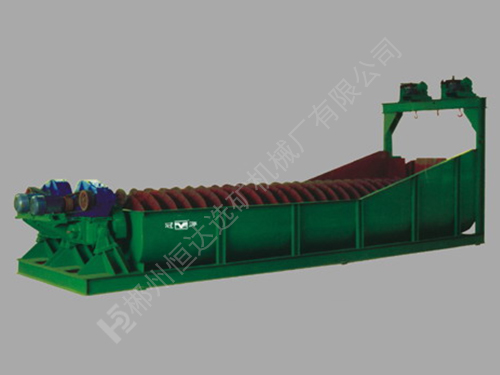

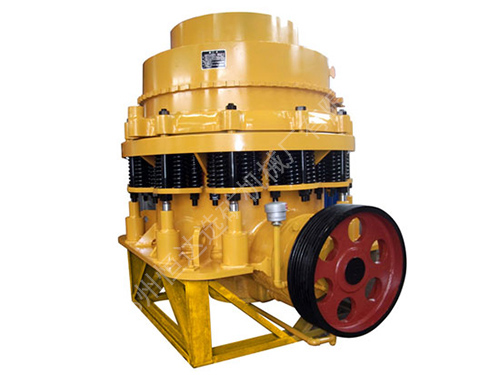

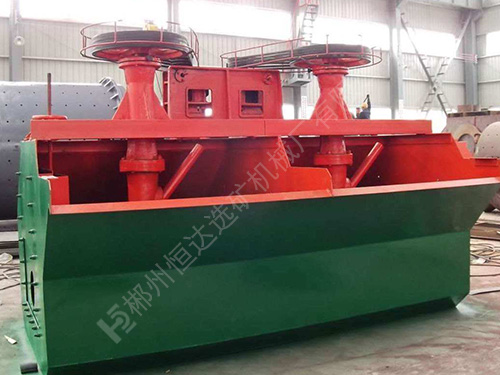

Related product recommendations
