Product Introduction

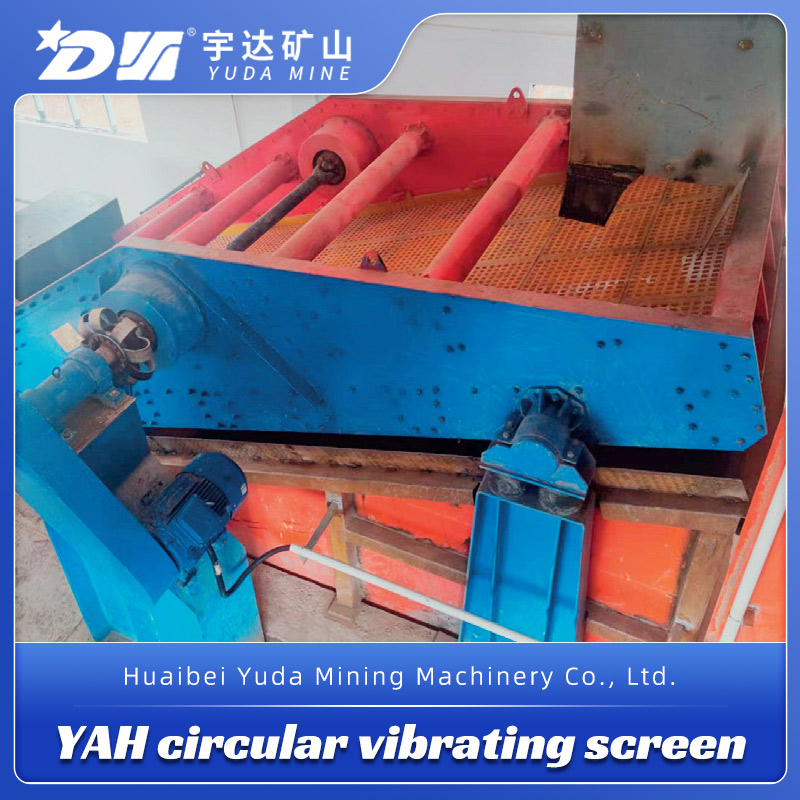

The motion trajectory of the YA circular vibrating screen is axis eccentric circular vibration, with a total of 40 specifications in the entire series, which can be used for dry and wet classification of crop materials in departments such as coal selection, mineral processing, building materials, power, and chemical engineering. This series of screening machines is manufactured with American technology and adopts a frame structure with ring groove rivets and cold riveting connection. It has the characteristics of advanced structure, low noise, and convenient maintenance.
Selection Instruction
1. The screening machine is divided into single-layer and multi-layer, and the lubrication system is divided into two types: grease lubrication and thin oil lubrication;
2. The sieve surface has woven mesh, perforated sieve plates, and polyurethane sieve plates;
3. The electric motor can be installed on the left or right side. If the user does not request it, it can be supplied according to the normal right installation diagram. The rated voltage of the electric motor is 380V, and different rated voltage explosion-proof motors can be used. If selected, please indicate when ordering.
Technical Parameter
|
Model |
Number of sieve layers |
Screen area(㎡) |
Sieve size(mm) |
Maximum feeding size(mm) |
Processing capacity(t/h) |
Vibration frequency(R/min) |
Double amplitude(mm) |
Motor power(kw) |
Weight (excluding motor) (kg) |
|
2YA1548 |
2 |
7.2 |
5-50 |
200 |
50-150 |
820 |
5-10 |
7.5 |
5500 |
|
3YA1548 |
3 |
7.2 |
5-50 |
200 |
50-200 |
820 |
5-11 |
11 |
6070 |
|
2YA1848 |
2 |
8.64 |
5-50 |
200 |
50-180 |
820 |
5-10 |
11 |
6500 |
|
3YA1848 |
3 |
8.64 |
5-80 |
200 |
50-230 |
820 |
5-11 |
15 |
6930 |
|
2YA1860 |
2 |
10.8 |
5-80 |
200 |
50-260 |
820 |
5-10 |
15 |
7200 |
|
3YA1860 |
3 |
10.8 |
5-80 |
200 |
50-220 |
820 |
5-11 |
18.5 |
7700 |
|
YA2160 |
1 |
12.6 |
6-50 |
200 |
100-300 |
748 |
5-10 |
15 |
5893 |
|
2YA2160 |
2 |
12.6 |
6-50 |
200 |
100-260 |
748 |
5-10 |
18.5 |
8560 |
|
3YA2160 |
3 |
12.6 |
6-50 |
200 |
100-220 |
748 |
5-12 |
22 |
9950 |
|
2YA2460 |
2 |
14.4 |
6-50 |
200 |
150-400 |
748 |
5-11 |
22 |
9150 |
|
3YA2460 |
3 |
14.4 |
6-50 |
200 |
150-450 |
748 |
6-14 |
22 |
10634 |
|
2YA3060 |
2 |
18 |
6-50 |
200 |
250-800 |
748 |
6-14 |
30 |
12116 |
|
2Y2A3083 |
2 |
24.9 |
6-50 |
200 |
240-1160 |
748 |
6-14 |
22×2 |
18500 |
|
3Y2A3083 |
3 |
24.9 |
6-50 |
200 |
410-1400 |
748 |
6-14 |
30×2 |
22000 |
|
2Y2A3583 |
2 |
29 |
6-50 |
200 |
400-1500 |
748 |
6-12 |
30×2 |
23500 |
