XMAZG/1250-U Program Controlled Auto Chamber Filter Press
Model:
XMAZG/1250-U
Filter Area:
80-250㎡
Number of Filter Plates:
29-93
Filter Plate Thickness:
30/35/40mm
COLLECT
Hebei Shuangcheng Environmental Protection Equipment Co., Ltd
Hebei · Hengshui
Main Products:Sludge filter press, high-pressure diaphragm filter press, fully automatic filter press, plate and frame filter press, box filter press, sand washing filter press, cloth clamp, small plate and frame filter press, filter press accessories, filter cloth
Enter the store
Details Parameters
Details Introduction

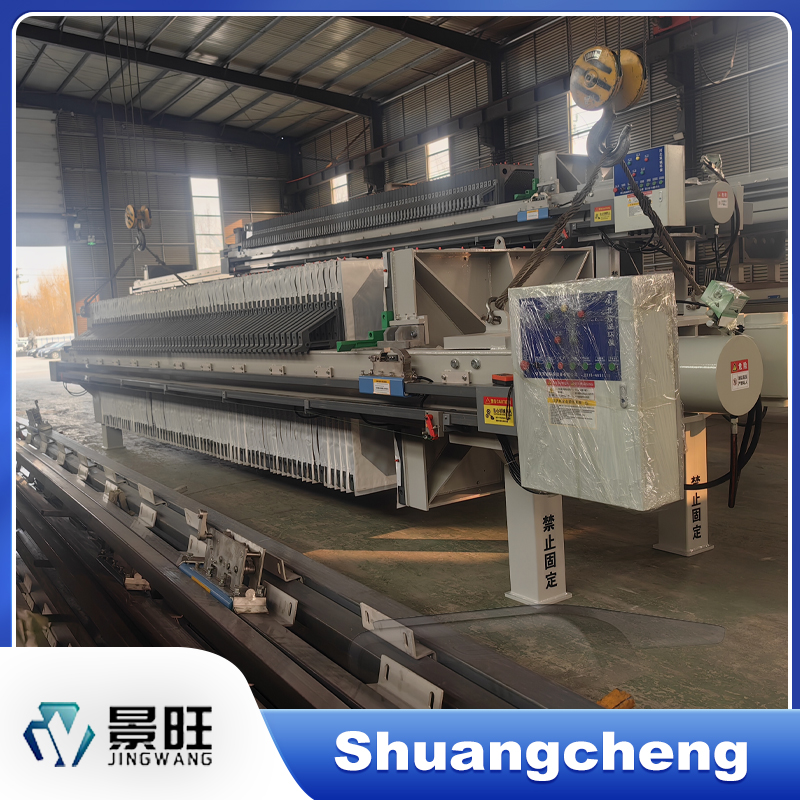

Program Controlled Auto Chamber Filter Press is a filtration device composed of filter plates arranged to form filtration chambers. Each chamber is constructed by two adjacent recessed filter plates, with filter cloth fixed to each plate. Under the pressure of the feed pump, the liquid material is delivered into the filtration chamber, where solids and liquids are separated by the filter cloth, forming a filter cake. The filtrate passes through the filter cloth and flows along the grooves of the filter plates to the discharge holes at the bottom.

Program Controlled Auto Chamber Filter Press is operated via a microcomputer PLC controller, enabling various functions such as filter plate compression, collection plate merging and opening, plate loosening, plate pulling, water rinsing, and more. It supports fully automated operation, including automatic compression and release, high-pressure unloading, pressure retention, pressure replenishment, plate pulling, cake discharge, pause, and automatic operation. It can be controlled either through programmed automation or manual operation. The plate-pulling motor utilizes a low-energy, small-power variable-frequency speed-regulating motor for energy efficiency and environmental friendliness. The torque is enhanced by a reduction motor, and the variable-frequency motor offers a wide speed adjustment range (20Hz–60Hz), allowing customizable speed and pulling force. It also includes a remote control interface for automated remote operation. This equipment is suitable for materials requiring easy dewatering and high-efficiency processing.

The filter press frame, pressing plate, and thrust plate are made of high-quality Q345B steel plates, welded using CO₂ shielded arc welding. High-speed centrifugal shot blasting removes rust and oxide scales, followed by epoxy mica iron primer spraying for optimal adhesion. These components exhibit excellent corrosion resistance, high hardness, strong tensile strength, and impact resistance. With a safety factor of 2.2 verified by overpressure testing, the equipment ensures safe and stable operation. The main beam is constructed from Q345B high-quality channel steel/H-beam, designed with a rational welding structure and automated welding techniques to guarantee safety and stability, meeting the requirements for high-pressure filter plates while eliminating beam deformation issues.

Operation Process:

First, the hydraulic system is activated to compress the filter press. Once the pressure reaches the set value, the system stops automatically. The feed pump and pipeline valve are then opened to inject slurry into the filter press. Filtration occurs via the filter cloth, retaining residues inside while the filtrate flows through dark or bright discharge pipes into a clean water tank. When the filter cake is fully formed, the feed pump stops, and the feed valve closes. The pressing plate is then released and retracts to the limit position. After discharging the filter cake, the compression system restarts to re-compress the plates, followed by the next feeding cycle. The operation is convenient and stable.

Advantages:

The equipment features automatic pressure retention, maintaining constant pressure during filtration to improve efficiency. It also offers easy filter cloth replacement, excellent filtration results, and durable filter plates. Its most notable characteristics include a compact structure, stable performance, high efficiency, and low operating costs.

Applications:

Widely used in industries such as chemical, light industry, petroleum, pharmaceuticals, food, resource development, metallurgy, coal mining, environmental protection, and wastewater treatment (e.g., chemical wastewater, smelting wastewater, electroplating wastewater, tannery wastewater, dyeing wastewater, pharmaceutical wastewater, aquaculture wastewater, slaughterhouse wastewater, sand washing wastewater, construction pile wastewater, stone cutting and polishing wastewater, etc.), earning widespread user acclaim.

Our company produces various models of chamber filter presses, hydraulic filter presses, membrane filter presses, fully automatic filter presses, and related accessories, all of high quality and comprehensive specifications.

(1) Sizes: 630, 800, 1000, 1250, 1500, 1600, and 2000 models.

(2) Maximum filtration area: up to 1000 m².

(3) Filter plate materials: cast iron, reinforced polypropylene, fiberglass polypropylene, etc.

(4) Flow types: bright flow, dark flow, washable, non-washable, center feed, corner feed, and more.

(5) Compression methods: mechanical and hydraulic cylinder compression. Custom solutions are available for special requirements.

Technical Specifications:

XMAZG/1250-U Program Controlled Auto Chamber Filter Press

Technical Data: Work journey 550. Maximum journey 1000.
Filtration area(m²) Number of
Plate
Cake thickness
(mm)
Chamber
volume(m³)
Unit weight
(kg)
Anchor
center
(mm)
Overall dimensions(mm)
Length Width Height
U-Plastic plate & frame(Thickness 60, Filter Cloth Thickness 1mm/plate)
80 29 30 1.2 7106 3270 4755 1970 1660
100 37 1.56 7772 3765 5250
120 45 1.83 8404 4260 5750
150 55 2.31 8284 4880 6370
160 59 2.38 9494 5130 6615
*200 75 3.04 10737 6120 7610 2130
*240 89 3.57 11824 6990 8480
*250 93 3.73 12087 7235 8720
U-Plastic plate & frame(Thickness 65, Filter Cloth Thickness 1mm/plate)
80 29 35 1.35 7264 3415 4900 1970 1660
100 37 1.71 7968 3950 5440
120 45 2.07 8649 4485 5980
150 55 2.52 9482 5155 6640
160 59 2.7 9814 5425 6910
*200 75 3.42 11144 6495 7980 2130
*240 89 4.05 12307 7435 8920
*250 93 4.23 12610 7700 9190
U-Plastic plate & frame(Thickness 70, Filter Cloth Thickness 1mm/plate)
80 29 40 1.55 7422 3560 5050 1970 1660
100 37 1.97 8164 4135 5620
120 45 2.39 8894 4710 6200
150 55 2.91 9680 5430 6920
160 59 3.11 10134 5720 7205
*200 75 3.95 11551 6870 8360 2130
*240 89 4.67 12790 7880 9365
*250 93 4.88 13115 8165 9650
U-Plastic plate & frame(Thickness 75, Filter Cloth Thickness 1mm/plate)
80 29 40 1.55 7607 3705 5195 1970 1660
100 37 1.97 8368 4320 5810
120 45 2.39 9116 4935 6425
150 55 2.91 9922 5705 7195
160 59 3.11 10387 6015 7505 2130
*200 75 3.95 11839 7245 8735
*240 89 4.67 13109 8325 9815
*250 93 4.88 13442 8630 10120
