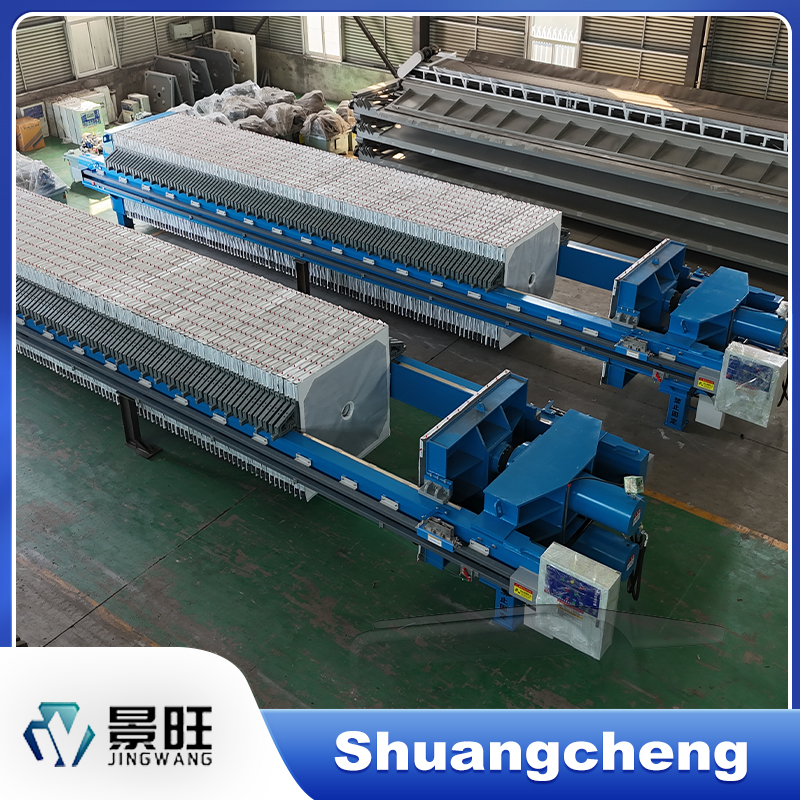

XMAZG/1250-U Program Controlled Automatic High Pressure Diaphragm Filter Press
Model:
XMAZG/1250-U
Filter Plate Thickness:
Theoretical Volume:
1.5-4.97m³
Filter Pressure:
COLLECT
Hebei Shuangcheng Environmental Protection Equipment Co., Ltd
Hebei · Hengshui
Main Products:Sludge filter press, high-pressure diaphragm filter press, fully automatic filter press, plate and frame filter press, box filter press, sand washing filter press, cloth clamp, small plate and frame filter press, filter press accessories, filter cloth
Enter the store
Details Parameters
Details Introduction

High pressure diaphragm filter press: Firstly, in terms of working principle, an ordinary filter press mainly compacts solid particles in the suspension onto the filter cloth through pressure to form a filter cake, thereby achieving solid-liquid separation. In contrast, the high-pressure diaphragm filter press adds a diaphragm squeezing function on this basis. Under the high pressure of the squeezing pump, the diaphragm compresses further into the filter chamber, squeezing the filter cake to fully remove moisture from it, thus improving the solid-liquid separation effect.

The main difference between the diaphragm filter press and the ordinary chamber filter press is the addition of an elastic membrane diaphragm plate between the filter plate and the filter cloth. During operation, after the feeding is completed, high-pressure fluid medium can be injected between the filter plate and the diaphragm, causing the entire diaphragm to bulge and compress the filter cake, thereby achieving further dewatering of the filter cake—this is called squeeze filtration. The first step is positive-pressure dewatering, also known as slurry feeding dewatering. A certain number of filter plates are tightly arranged in a row under strong mechanical force, forming filter chambers between the surfaces of the filter plates. The filtering material is fed into the filter chambers under high positive pressure. The solid part of the filtering material is intercepted by the filtering medium (such as the filter cloth) to form a filter cake, while the liquid part passes through the filtering medium and is discharged from the filter chamber, achieving solid-liquid separation.

Advantages:

Additionally, the high-pressure diaphragm filter press offers advantages such as high automation, simple operation, and easy maintenance. Its advanced control system enables remote monitoring and operation, significantly improving production efficiency and convenience. At the same time, the reasonable structural design of the high-pressure diaphragm filter press ensures more stable and reliable performance during long-term operation, reducing failure rates and maintenance costs.

Applications:

It is widely used in industries such as chemical, light industry, petroleum, pharmaceuticals, food, resource development, metallurgy and coal, environmental protection, and wastewater treatment (including chemical wastewater, smelting wastewater, electroplating wastewater, tannery wastewater, printing and dyeing wastewater, pharmaceutical wastewater, aquaculture wastewater, slaughterhouse wastewater, sand washing wastewater, construction pile wastewater, stone cutting and polishing wastewater, etc.), and is highly welcomed by users.

Our company produces various models of chamber filter presses, hydraulic filter presses, diaphragm filter presses, fully automatic filter presses, and filter press accessories, all of reliable quality and complete specifications.

(1) Specifications include: 630 type, 800 type, 1000 type, 1250 type, 1500 type, 1600 type, and 2000 type.

(2) The maximum filtration area reaches 1000m².

(3) Filter plate materials include cast iron, reinforced polypropylene, glass fiber polypropylene, etc.

(4) Liquid flow forms include open flow, hidden flow, washable, non-washable, center feeding, corner feeding, and more.

(5) Filter plate pressing methods include mechanical pressing and hydraulic cylinder pressing. For special requirements of filter presses, customized solutions can be discussed separately.

Technical Specifications:

XMAZG/1250-U Program Controlled Automatic High Pressure Diaphragm Filter Press

Technical Data: Work journey 550. Maximum journey 1200.
U-Plastic plate & frame(Thickness 76/72, Filter Cloth Thickness 1mm/plate)
Filtration area(m²) Number of
Plate
Cake thickness
(mm)
Chamber
volume(m³)
Unit weight
(kg)
Anchor
center
(mm)
Overall dimensions(mm)
Length Width Height
80 15/14 38 1.5 8318 3775 5530 1970 1660
100 19/18 1.91 8991 4385 6140
120 23/22 2.31 9641 4990 6750
150 28/27 2.81 10434 5750 7510
*160 30/29 3.01 10750 6055 7810 2130
*200 38/37 3.82 12020 7270 9030
*240 45/44 4.52 13130 3335 1009
*250 47/46 4.72 13418 8640 10400
U-Plastic plate & frame(Thickness 78/74, Filter Cloth Thickness 1mm/plate)
80 15/14 40 1.58 8318 3835 5590 1970 1660
100 19/18 2.01 8991 4460 6220
120 23/22 2.43 9641 5080 6840
150 28/27 2.96 10434 5860 7620
*160 30/29 3.17 10751 6175 7930 2130
*200 38/37 4.02 12020 7420 9180
*240 45/44 4.76 13131 8515 10270
*250 47/46 4.97 13418 8825 10580
