NSE High-speed Plate-chain Bucket Elevator

Model：

NSE1400

Power：

According to customer's demands

Equipment Weight：

Number of Reels：

COLLECT

Jiande conveying machinery equipment co. LTD

Zhejiang · Hangzhou

Main Products：NE plate chain elevator, NSE high speed plate chain elevator, TGD steel wire reinforced belt elevator, FU chain form conveyor, SCD tank form conveyor for grog, LD series of stainless steel conveyor for high temperature materials, BL heavy and medium weight plate mechanical feeder

Enter the store

︿

﹀

Details Parameters

Details Introduction

NSE series high-speed plate-chain elevator is our product introducing the overseas similar advanced technology products. In the industrial countries, this kind of elevator is applied widely. It is an advanced vertical lifting equipment, has been widely used to lift various disperses material, such as: ore, coal, fly ash, cement, cement clinker, food, chemical fertilizer, etc.

NSE series high-speed plate-chain elevator has 12 types: NSE100, NSE200, NSE300, NSE400, NSE500, NSE600, NSE700, NSE800, NSE900, NSE1000, NSE1200, NSE1400.

Technical Standard

Model numbers	Lifting capacity(m³/h)	Bucket filling factor(%)	Bucket volume(m³)	Bucket spacing(m)	Bucket velocity(m/min)
NSE100	160 185	60 70	0.033	0.4	56
NSE200	250 290	60 70	0.045	0.4	63
NSE300	310 360	60 70	0.055	0.4	63
NSE400	430 500	60 70	0.097	0.5	62
NSE500	520 600	60 70	0.118	0.5	62
NSE600	600 700	60 70	0.140	0.5	62
NSE700	700 850	50 60	0.230	0.6	62
NSE800	800 1000	50 60	0.268	0.6	62
NSE900	960 1150	50 60	0.292	0.6	66
NSE1000	1050 1260	50 60	0.320	0.6	66
NSE1200	1120 1350	50 60	0.340	0.6	66
NSE1400	1270 1500	50 60	0.450	0.7	66

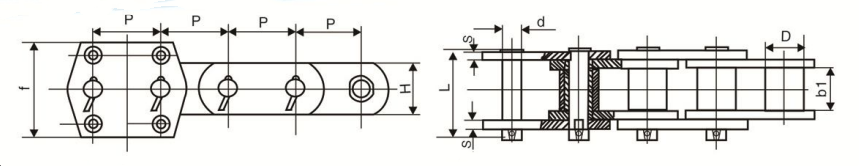

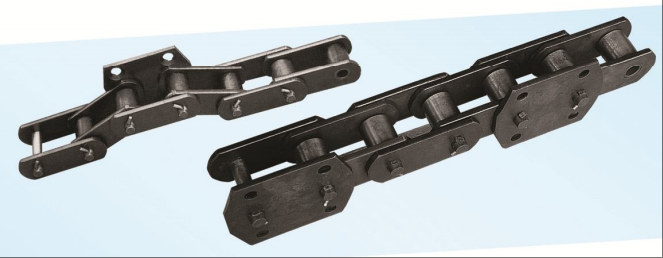

Technical Parameters

Model numbers	Pitch P mm	Roller diameter D mm	Pin roll diameter d mm	Pin roll length L mm	Width of nodes b1 mm	Chain plate thickness S mm	Chain plate width H mm	breaking load T
NSE100普 NSE200普 NSE300普	100	φ44.5	φ19.1	111	51.8	10	60	38
NSE100强 NSE200强 NSE300强	100	φ44.5	φ22.2	118	57.6	10	75	55
NSE400普 NSE500普	125	φ63.5	φ31.75	136	67.4	12	90	75
NSE400强 NSE500强	125	φ65	φ33.5	146	67.4	14	95	90
NSE600普	125	φ63.5	φ31.75	136	67.4	12	90	75
NSE600强	125	φ70	φ35	162	75	16	100	100
NSE700普 NSE800普	150	φ70	φ35	162	75	16	100	100
NSE700强 NSE800强	150	φ78	φ38.1	169	80	16	100	110
NSE900 NSE1000	150	φ83	φ46	185	85	18	125	160
NSE1200	150	φ85	φ50	198	90	20	135	190
