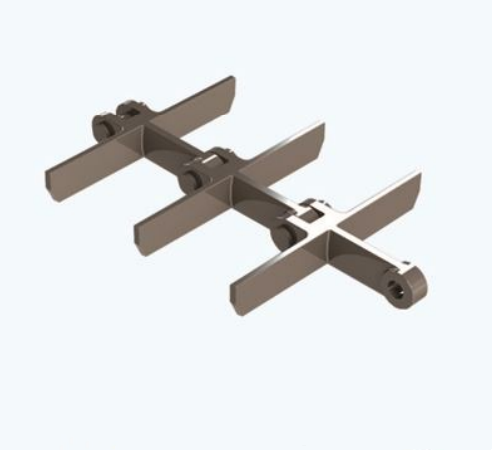

MSR Buried Scraper Conveyor

Model design length：

60m

Conveying Capacity：

250m³/h

Installed Power Rating：

Circular Link Chain Specifications：

COLLECT

Jiande conveying machinery equipment co. LTD

Zhejiang · Hangzhou

Main Products：NE plate chain elevator, NSE high speed plate chain elevator, TGD steel wire reinforced belt elevator, FU chain form conveyor, SCD tank form conveyor for grog, LD series of stainless steel conveyor for high temperature materials, BL heavy and medium weight plate mechanical feeder

Enter the store

︿

﹀

Details Parameters

Details Introduction

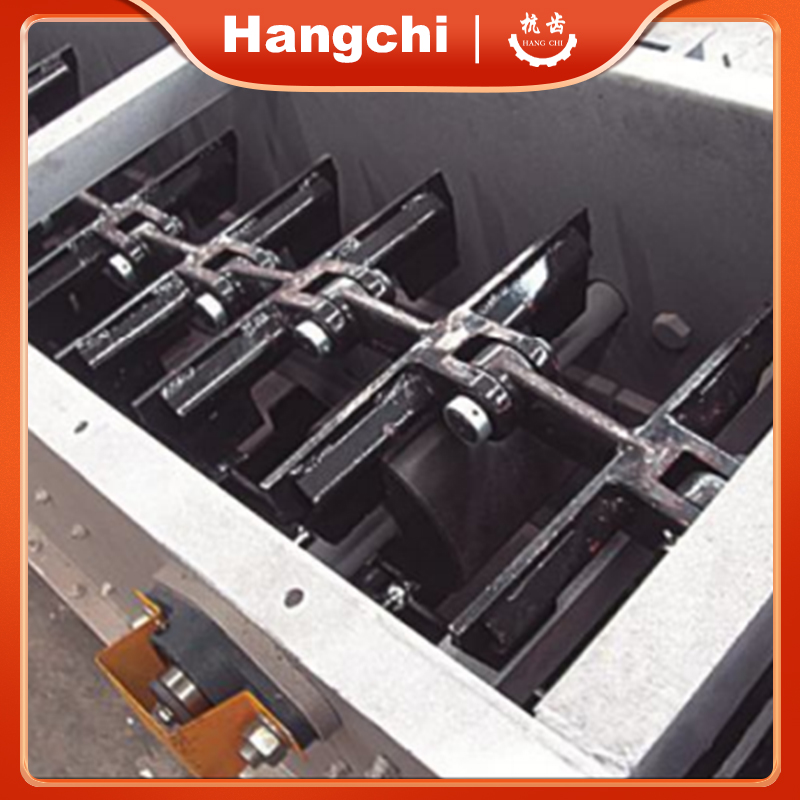

MSR buried scraper conveyor is used for horizontally or incliningly (less than 12°) conveying nubby, powdery, and granular materials. It is widely used in many industries, such as building materials, chemical industry, metallurgical industry, food industry, etc.

The basic model numbers of MSR buried scraper conveyor include 6 specifications, namely MSR320, MSR400, MSR500, MSR600, MSR800, MSR1000. According to different specifications, the speed is in the range of 0.16-0.32 m/s. The maximum conveying capacity is 250 m³/h. The maximum length is 55 meters. And the acceptable temperature of the material is less than 450°C.

Model number of equipment

Model numbers	Trough width (mm)	Trough height (mm)	Maximum particle size (mm)	Conveying capacity(m³/h)
				Chain speed(m/s)
				0.16	0.2	0.25	0.32
MSR320	320	320	40	23	30	36	47
MSR400	400	320	50	32	41	52	66
MSR500	500	400	60	46	58	72	92
MSR600	600	500	70	68	85	107	137
MSR800	800	500	70	92	115	142	182
MSR1000	1000	500	70	125	156	195	250
