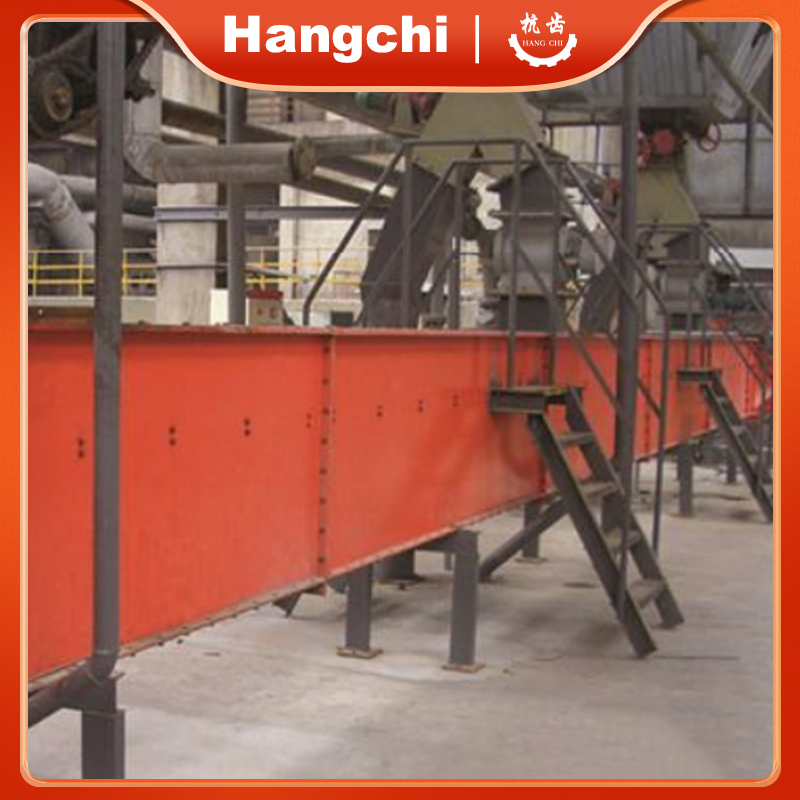

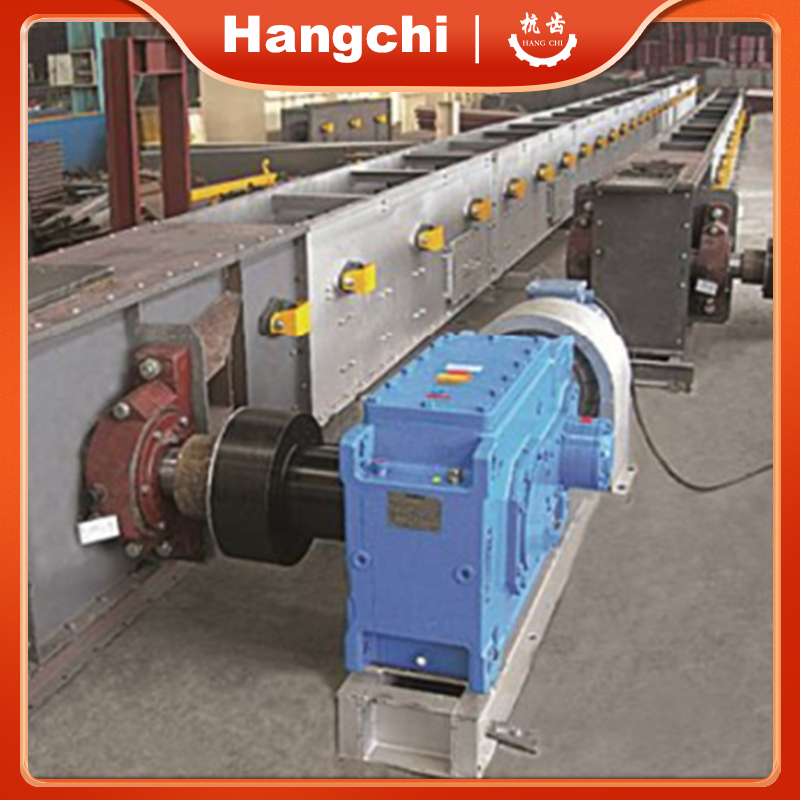

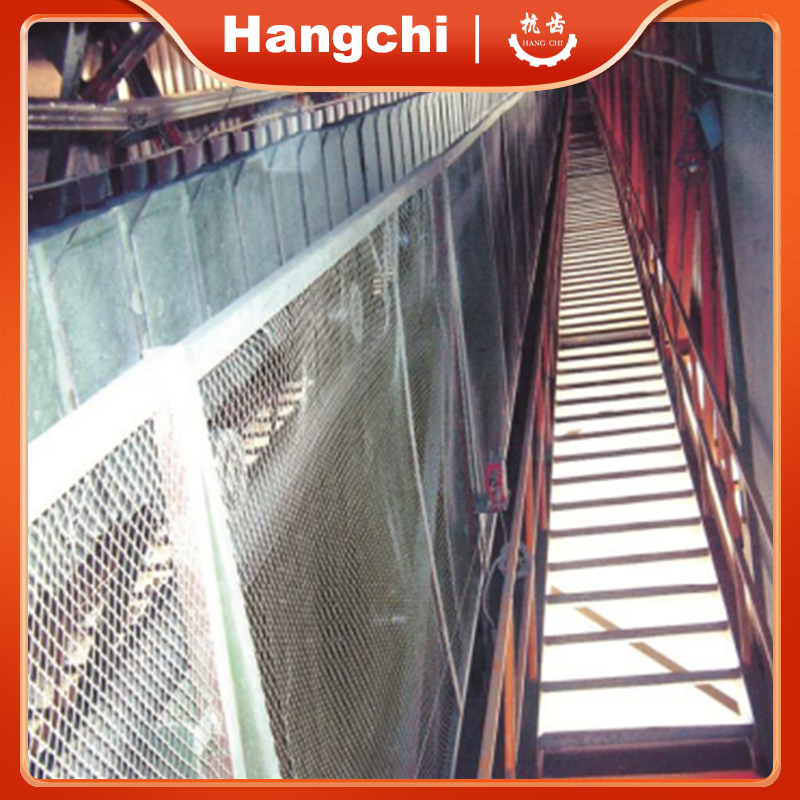

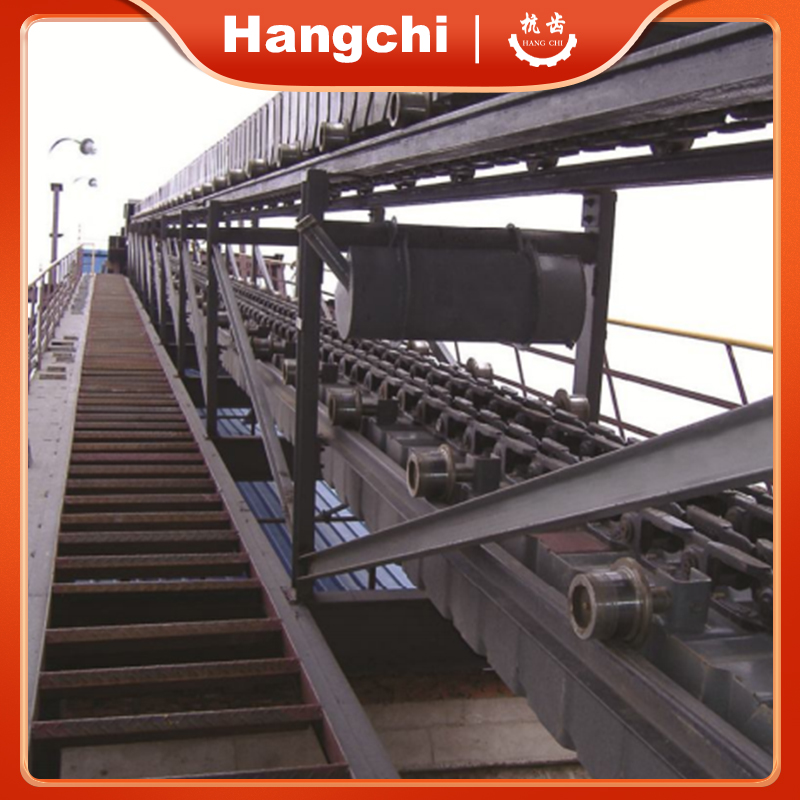

Our company produces medium and high weight plate feeders, which are suitable for continuously and uniformly feeding and delivery from storage bunker to crusher, conveyor, or other working machine and container, along horizontal or inclining line. Bulk densities are given as follows:

The light type of plate feeders is suitable for all kinds of bulk, granular and incompact materials, of which the bulk density is no more than 1200 kg/m³, the weight of a single block is no more than 140 kg, and the temperature is not higher than 350°C.

The medium type of plate feeders is suitable for all kinds of incompact materials, of which the bulk density is no more than 2400 kg/m³, the weight of a single block is no more than 500 kg, and the temperature is not higher than 400°C.

The specifications of the heavy type of plate feeders include: 1000, 1250, 1500, 2000, 2500 and 3150 mm. The length is 420 m, and the capacity is 60-200 m³/h.

Plate feeders are widely used in technical process, such as mining, transport, and batching in mining, cement, chemical and metallurgical enterprises. The feeders are suitable for loose, bulk and large capacity feeding processes in large and medium cement production line. They can work reliably in high temperature and humidity environment.

Technical parameters
