DS Continuous-bucket Conveyor

Model design length：

80m

Conveying Capacity：

19-520m³/h

Installed Power Rating：

Circular Link Chain Specifications：

COLLECT

Jiande conveying machinery equipment co. LTD

Zhejiang · Hangzhou

Main Products：NE plate chain elevator, NSE high speed plate chain elevator, TGD steel wire reinforced belt elevator, FU chain form conveyor, SCD tank form conveyor for grog, LD series of stainless steel conveyor for high temperature materials, BL heavy and medium weight plate mechanical feeder

Enter the store

︿

﹀

Details Parameters

Details Introduction

Main Features:

• The conveyed material can be in high temperature and with large volume, large block and strong wear resistance.
• The conveyor is used for horizontally or incliningly (less than 60°) conveying material.
• Conveying distance: single machine can convey more than 80 m.
• Large conveying capacity: 19 m³/h - 520 m³/h.
• By using rolling friction instead of sliding friction, the resistance can be reduced by 55-65%.
• The traction chain, charging spout and walking wheel can be freely installed and dismantled.
• Temperature of the material is no more than 600°C.
• Material particle size is no more than 200 mm.
• Material capacity is 1.0-2.0 t/m³.

(1) In horizontal case, conveying capacity of bucket conveyor.

Model numbers	Side height (mm)	Rated conveying capacity (inclining angle is no more than 250 degrees)(m³/h)
		Conveying speed(m/s)
		0.15	0.20	0.25	0.30
DS400	160	29	39	49	59
DS540	160	40	53	66	80
DS640	200	59	79	99	119
DS640	250	74	99	124	149
DS800	250	93	124	156	187
DS800	300	112	150	87	225

(2) The adjustment coefficient of conveying capacity when inclining (the inclining angle is more than 25 degrees). (k)

charging spout side height (mm)	Adjustment coefficient (k)


	30°	35°	40°	45°	50°	55°	60°
160	0.88	0.8	0.69	0.60	0.50	0.43	0.37
200	0.91	0.83	0.75	0.69	0.61	0.54	0.47
250	0.93	0.86	0.80	0.74	0.69	0.63	0.57
300	0.94	0.89	0.83	0.79	0.74	0.69	0.65
350	0.95	0.90	0.86	0.82	0.78	0.74	0.70

Notes:

The above data is corresponding to continuous feeding. The actual conveying capacity of the rotary kiln is about 70-80% of the rated conveying capacity. It is about 45-50% of the rated conveying capacity for the shaft kiln.
Incliningly (β >25°) conveying capacity: the rated conveying capacity = K × the rated horizontally conveying capacity.

Technical Parameters

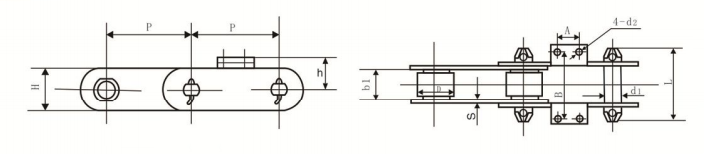

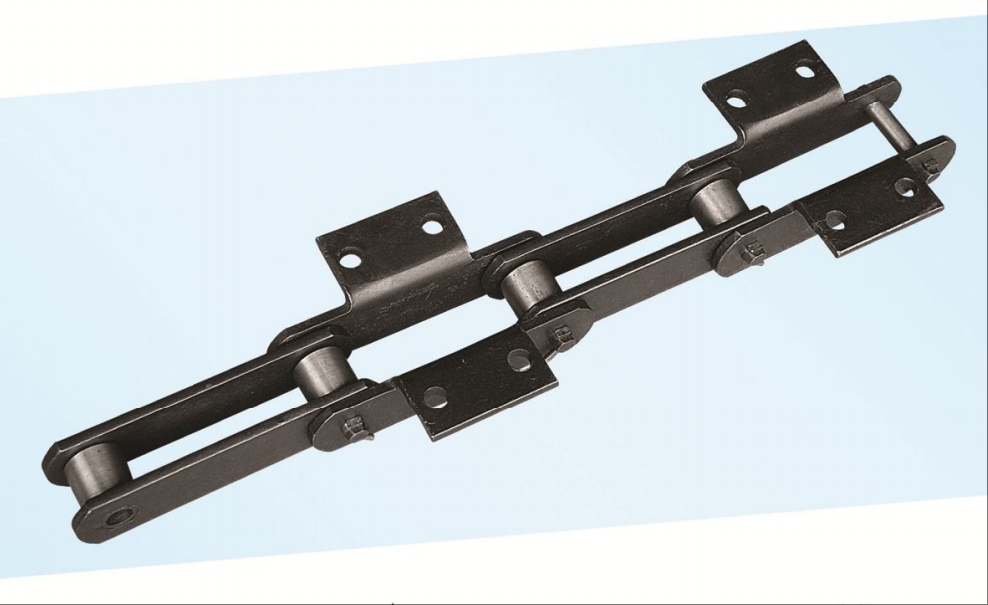

Model numbers	Pitch P mm	Widih of nodes b1 mm	Roller diameter D mm	Pin roll diameter d1 mm	Pin roll length L mm	Chain plate width H mm	Chain plate thickness S mm	Chain ear high h mm	Screw hole diameter d2 mm	Charging spou installation size A×B mm
DS400	152.4	36.5	36	155	90	50	8	38	14	60×120
DS540	152.4	36.5	36	5.5	90	50	8	38	14	60×135
DS640	250	57.6	48.5	22.2	126	75	10	60	14	125×160
DS800	250	55	60	30	135	84	10	75	16	115×180
