NE Low-speed Plate-chain Bucket Elevator

Model：

NE500

Power：

According to customer's demands

Equipment Weight：

53.5kg/m

Number of Reels：

COLLECT

Jiande conveying machinery equipment co. LTD

Zhejiang · Hangzhou

Main Products：NE plate chain elevator, NSE high speed plate chain elevator, TGD steel wire reinforced belt elevator, FU chain form conveyor, SCD tank form conveyor for grog, LD series of stainless steel conveyor for high temperature materials, BL heavy and medium weight plate mechanical feeder

Enter the store

︿

﹀

Details Parameters

Details Introduction

NE series plate-chain elevator is our product introducing the overseas similar advanced technology products. It is an advanced vertical lifting equipment, has been widely used to lift various disperses material, such as: ore, coal, fly ash, cement, cement clinker, food, chemical fertilizer, etc. In the industrial countries, this kind of elevator is applied widely. Due to its high efficiency and energy saving, it has become a substitute of type HL and TH ring chain elevator.

NE series plate-chain elevator has 10 types: NE15, NE30, NE40, NE50, NE100, NE150, NE200, NE300, NE400, NE500.

Technical Standard

Model numbers	Lifting capacity(m³/h)	Bucket filling factor(%)	Bucket volume(m³)	Bucket spacing(m)	Bucket velocity(m/min)
NE15	10 16	70	0.0025	0.2032	21 31
NE30	20 32	70	0.0078	0.3048	19 31
NE40	28 45	70	0.0095	0.25	18 29
NE50	35 60	70	0.0147	0.3048	19 31
NE100	75 110	70	0.035	0.4	22 31
NE150	120 170	70	0.0522	0.4	22 31
NE200	170 230	70	0.0846	0.5	24 33
NE300	250 340	70	0.1275	0.5	24 33
NE400	310 420	70	0.1825	0.6	24 33
NE500	350 480	70	0.2080	0.6	24 33

Technical Parameters

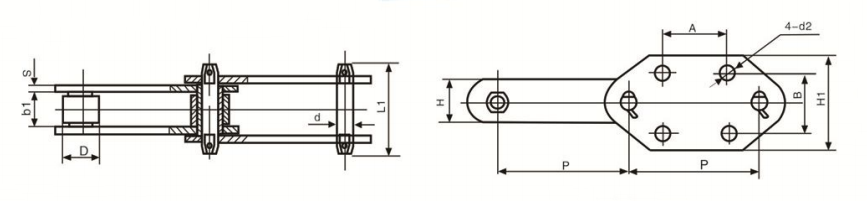

Model numbers	Pitch P mm	Width of nodes B1 mm	Roller diameter D mm	Pin roll diameter d1 mm	Pin roll length L mm	Chain plate width H mm	Chain plate thickness S mm	Wide chain plate H₁ mm	Screw hole diameter d₂ mm	Charging spou installation size A×B mm	Weight quantity Q kg/m
NE15	101.6	27	φ26.5	φ11.5	70	35	6	h=23.5	φ12	40×90	6.8
NE30	152.4	36.5	φ36	φ15.5	90	50	8	h=38	φ14	60×121	12.4
NE50	152.4	36.5	φ36	φ15.5	90	50	8	110	φ14	75×70	11.8
NE100	200	51.8	φ44.5	φ19.1	111	60	10	125	φ18	100×80	19
NE150	200	57.6	φ48.5	φ22.2	120	75	10	125	φ18	100×80	22.8
NE200	250	67.4	φ63.5	φ31.75	136	90	12	150	φ18	140×100	30.1
NE300	250	75	φ70	φ35	162	100	16	150	φ18	140×100	46.5
NE400	300	80	φ78	φ38.1	169	120	16	180	φ22	170×120	53.5
NE500	300	80	φ78	φ38.1	169	120	16	180	φ22	170×120	53.5
