Main Applications:
Dry and wet magnetic separation of weak magnetic ores such as magnetite, vanadium-titanium magnetite, and titanomagnetite; dry iron removal from non-metallic ores. The separation efficiency is internationally leading.
Technical Features:
Customized design with multi-gradient magnetic system, featuring strong magnetic force, high processing capacity, and an equipment operating rate of up to 99% with maintenance-free operation; excellent separation efficiency, well-controlled tailings, and concentrate free of impurities.
Structural Characteristics:

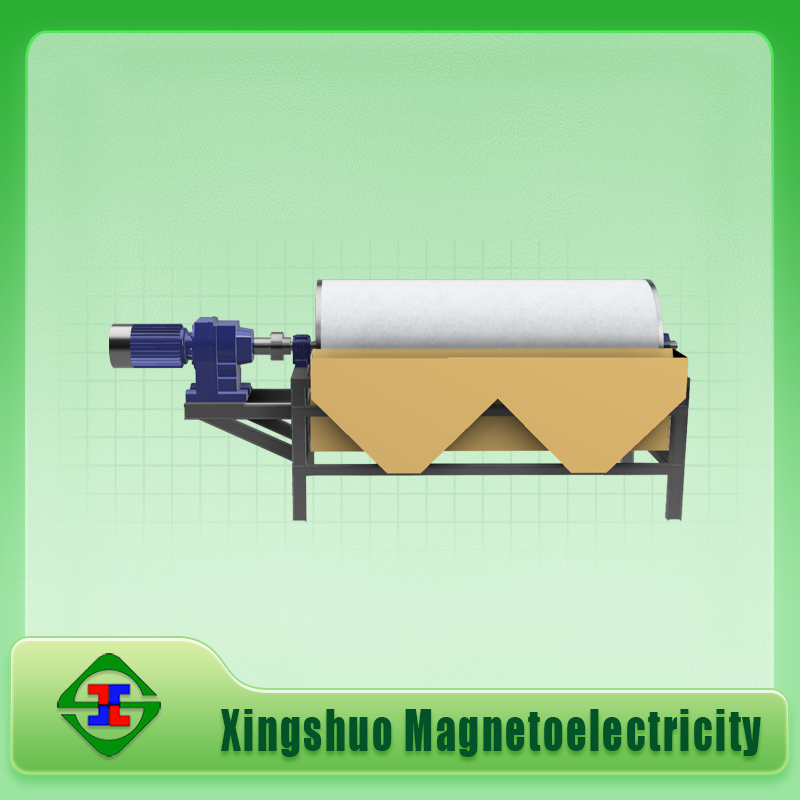

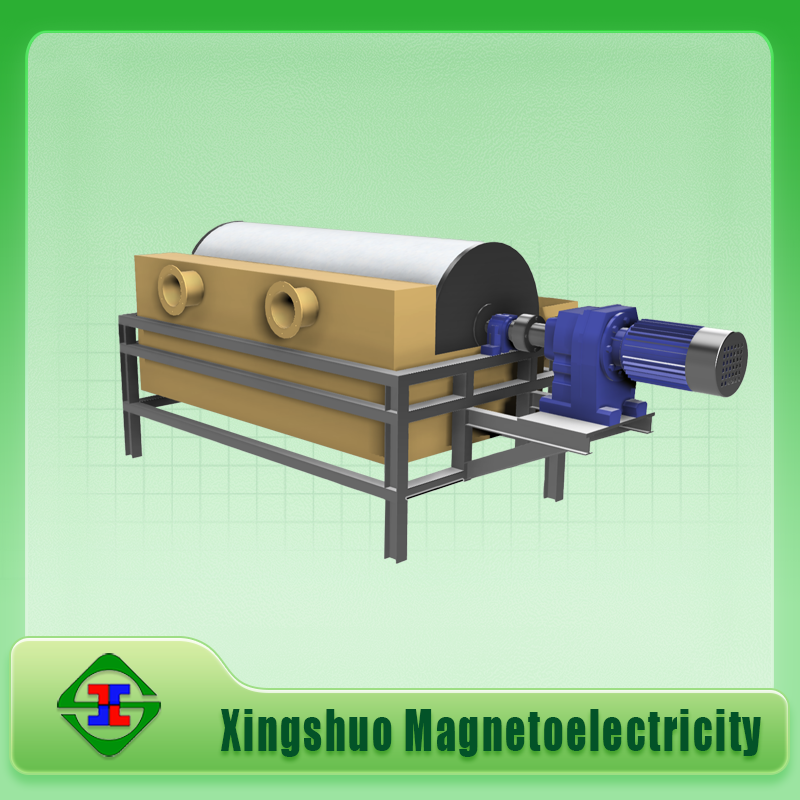

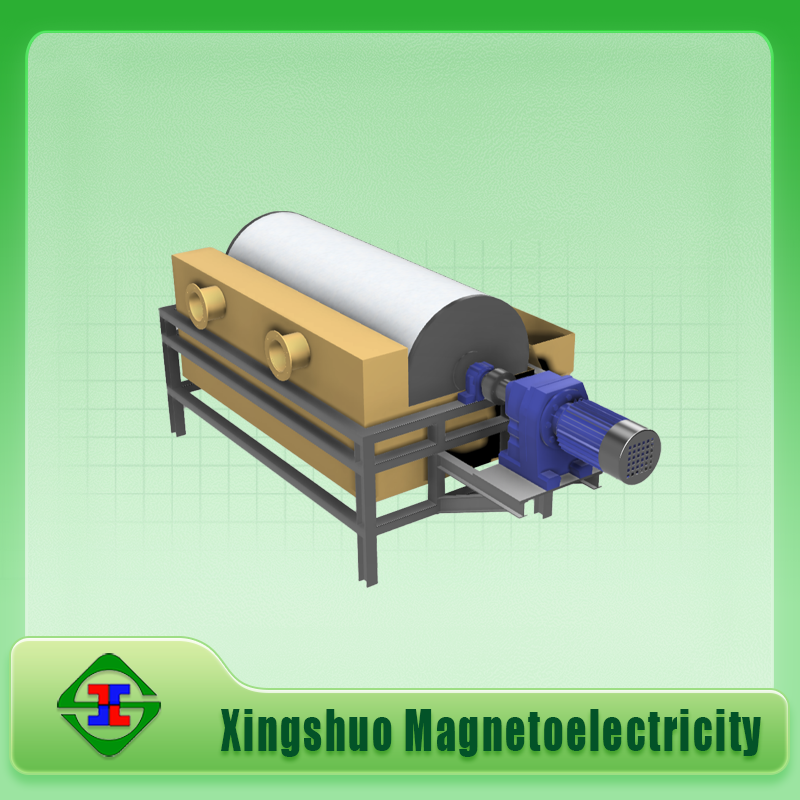

Depending on the model and performance of the magnetic separator, through-shaft or half-shaft designs are adopted to ensure normal equipment operation. The magnetic drum shell is made of wear-resistant stainless steel and surface-treated with calcined alumina wear-resistant ceramic tiles, guaranteeing no damage under normal use for 10 years. Wear-resistant treatment is applied to the worn parts of the body, ensuring no damage for 10 years under normal use. The transmission device adopts a pin-type coupling, effectively avoiding manufacturing defects during equipment processing and providing good centering. The power unit employs a variable-frequency adjustable motor, allowing for adjustment of separation indicators according to production needs.
Performance Characteristics & Advantages of Dry Magnetic Separator: High operating rate, excellent magnetic separation effect, concentrate free of impurities, and tailings free of ore.
Technical Parameters:
| Model | Cylinder Dimensions | Magnetic induction intensity on the cylinder surface(mT) | Processing Capacity | Motor power (kW) |
Cylinder rotational speed (r/min) |
Total machine weight (kg) |
||
| Cylinder Diameter(mm) | Cylinder Length(mm) | t/h | m³/h | |||||
| CTB-618 | 600 | 1800 | Determine magnetic induction intensity based on ore grade | 15-30 | 40-80 | 2.2 | 40 | 1340 |
| CT8-718 | 750 | 1800 | 20-45 | 60-100 | 3 | 35 | 2100 | |
| CTB-918 | 900 | 1800 | 25-40 | 70-120 | 4 | 28 | 2900 | |
| CTB-1018 | 1050 | 1800 | 45-60 | 110-160 | 5.5 | 22 | 4000 | |
| CTB-1021 | 1050 | 2100 | 50-70 | 140-200 | 5.5 | 22 | 4500 | |
| CTB-1024 | 1050 | 2400 | 60-80 | 170-260 | 5.5 | 22 | 5000 | |
| CTB-1030 | 1050 | 3000 | 80-120 | 240-380 | 7.5 | 22 | 6300 | |
| CTB-1218 | 1200 | 1800 | 60-75 | 160-260 | 11 | 17 | 5000 | |
| CTB-1224 | 1200 | 2400 | 80-110 | 240-330 | 11 | 17 | 5900 | |
| CTB-1230 | 1200 | 3000 | 100-140 | 260-460 | 11 | 17 | 7200 | |
| CTB-1236 | 1200 | 3600 | 120-160 | 300-550 | 15 | 17 | 8200 | |
| CTB-1240 | 1200 | 4000 | 130-170 | 330-600 | 15 | 17 | 10000 | |
| CTB-1245 | 1200 | 4500 | 150-200 | 380-660 | 18.5 | 17 | 12000 | |
| CTB-1530 | 1500 | 3000 | 100-180 | 290-480 | 15 | 14 | 11500 | |
| CTB-1540 | 1500 | 4000 | 150-200 | 300-540 | 22 | 14 | 14500 | |
| CTB-1545 | 1500 | 4500 | 180-240 | 400-650 | 30 | 14 | 15500 | |
| CTB-1550 | 1500 | 5000 | 210-280 | 500-750 | 30 | 14 | 17500 | |
| CTB-1824 | 1800 | 2400 | 100-140 | 260-460 | 15 | 12 | 9100 | |
| CTB-1830 | 1800 | 3000 | 140-190 | 350-560 | 18.5 | 12 | 12300 | |
| CTB-1840 | 1800 | 4000 | 200-260 | 400-650 | 30 | 12 | 18500 | |
| CTB-1850 | 1800 | 5000 | 280-320 | 550-800 | 37 | 12 | 23000 | |
