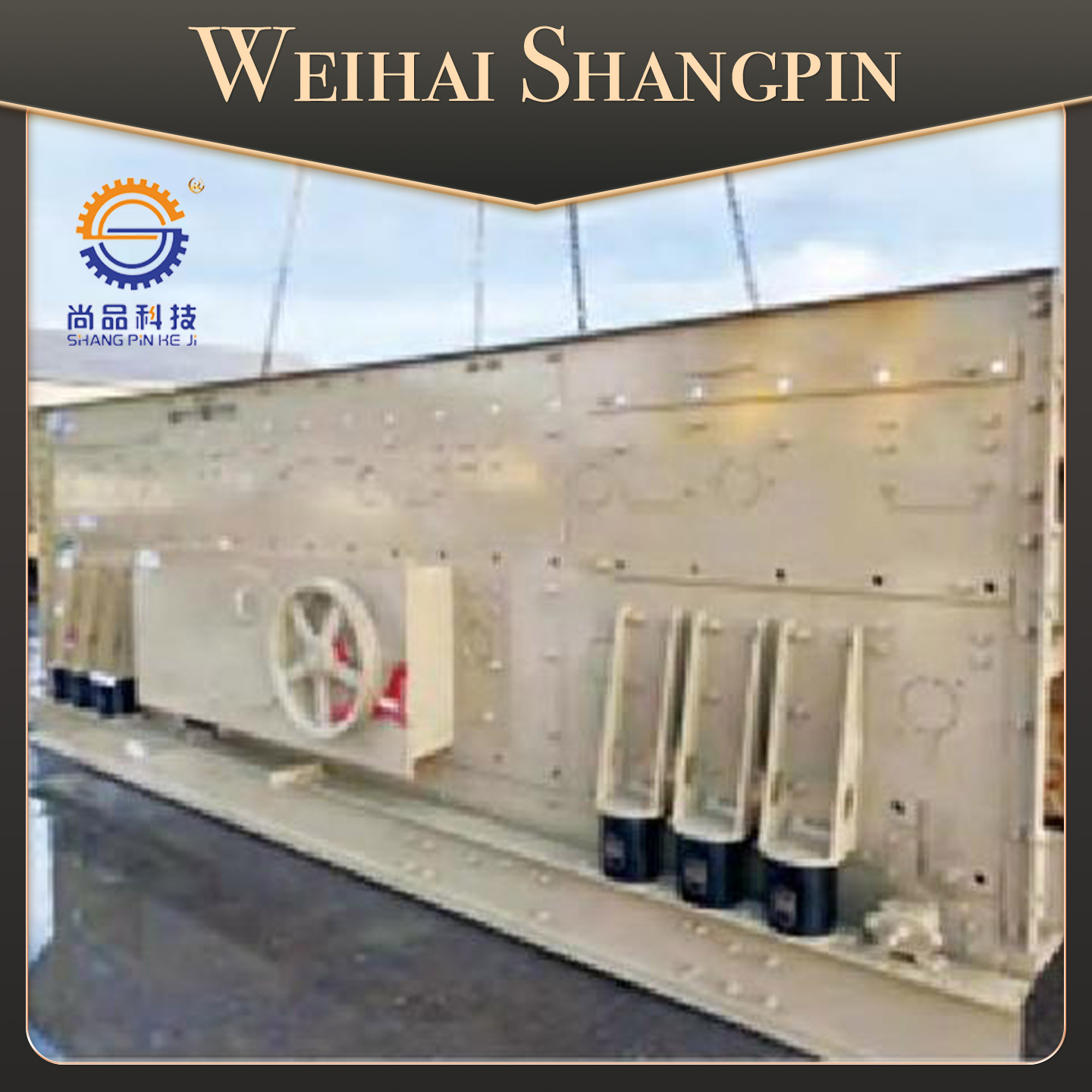

TSK series tri-axial elliptical screen has higher screening efficiency and is particularly suitable for screening solutions for medium and fine materials. The body adopts a horizontal installation form, so it occupies less space on site and can be installed on fixed or modular structures or configured in mobile workstations. Suitable for screening different products with smooth material screening requirements, less likely to block holes, stable material blocking working state, large processing capacity, and good structural performance.
Technical Specifications
|
Model |
Screen size (mm) |
Maximum feed particle size (mm) |
Spindle speed (rpm) |
Double amplitude (mm) |
Installation inclination angle (°) |
Processing capacity (t/h) |
Motor power (kw) |
Dimensions (mm) |
|
2TSK1550 |
1500×5000 |
120 |
680 |
12-15 |
0-5 |
75-300 |
18.5 |
5870×2360×1470 |
|
2TSK2060 |
2000×6000 |
120 |
680 |
12-15 |
0-5 |
100-400 |
22 |
6870×2860×1565 |
|
2TSK2260 |
2200×6000 |
150 |
680 |
12-15 |
0-5 |
110-440 |
30 |
6870×3060×1565 |
|
2TSK2460 |
2400×6000 |
150 |
680 |
12-15 |
0-5 |
120-480 |
30 |
6870×3260×1565 |
|
3TSK1550 |
1500×5000 |
120 |
680 |
12-15 |
0-5 |
90-360 |
37 |
5870×2360×1870 |
|
3TSK2060 |
2000×6000 |
120 |
680 |
12-15 |
0-5 |
90-360 |
37 |
6870×2860×2010 |
|
3TSK2260 |
2200×6000 |
150 |
680 |
12-15 |
0-5 |
100-390 |
37 |
6870×3060×2010 |
|
3TSK2460 |
2400×6000 |
150 |
680 |
12-15 |
0-5 |
110-430 |
37 |
6870×3260×2010 |
|
4TSK2060 |
2000×6000 |
150 |
680 |
12-15 |
0-5 |
100-400 |
37 |
6870×2860×2300 |
