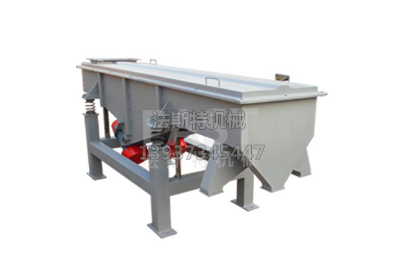

LF series heavy-duty linear vibrating screen can be used for grading and screening operations with particle sizes ranging from 2-100mm. Its motion trajectory is a straight or nearly straight elliptical shape, combining the high screening efficiency of linear vibration trajectory with the large processing capacity of circular vibration trajectory. Through a horizontal installation method, it achieves a perfect combination of large processing capacity and high screening efficiency. Widely used in industries such as metallurgy, mining, construction, transportation, and water conservancy to grade various materials.
Technical Specifications
|
Model |
Screen size (mm) |
Maximum feed particle size (mm) |
Spindle speed (rpm) |
Double amplitude (mm) |
Installation inclination angle (°) |
Processing capacity (t/h) |
Motor power (kw) |
Dimensions (mm) |
|
LF1860 |
1800*6000 |
260 |
750-1000 |
11 |
0-10 |
360-520 |
11*2 |
6160*2510*1585 |
|
LF2460 |
2400*6000 |
260 |
750-1000 |
11 |
0-10 |
500-700 |
15*2 |
6160*3110*1660 |
|
LF3060 |
3000*6000 |
260 |
750-1000 |
11 |
0-10 |
600-800 |
30*2 |
6160*3110*1810 |
|
2LF2460 |
2400*6000 |
260 |
750-1000 |
11 |
0-10 |
500-700 |
22*2 |
6850*3110*1920 |
|
2LF3060 |
3000*6000 |
260 |
750-1000 |
11 |
0-10 |
600-800 |
37*2 |
6850*3740*2305 |
