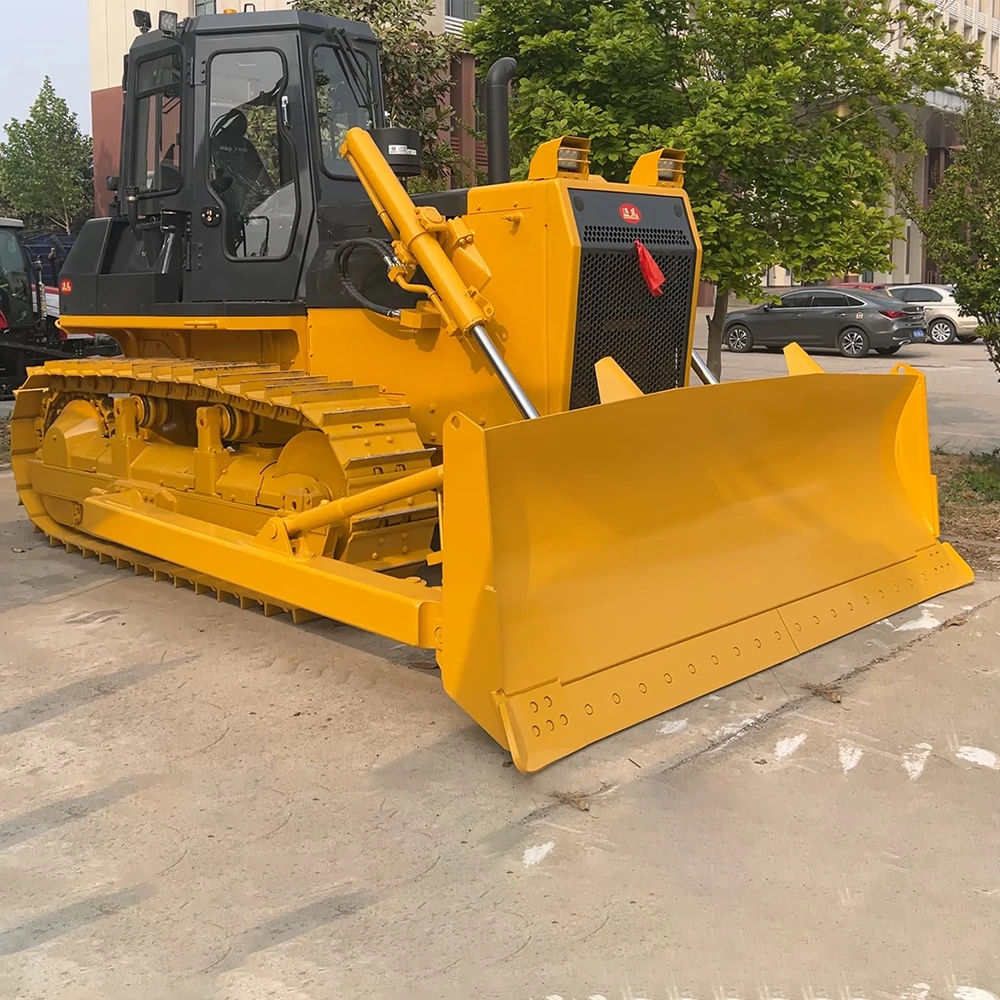

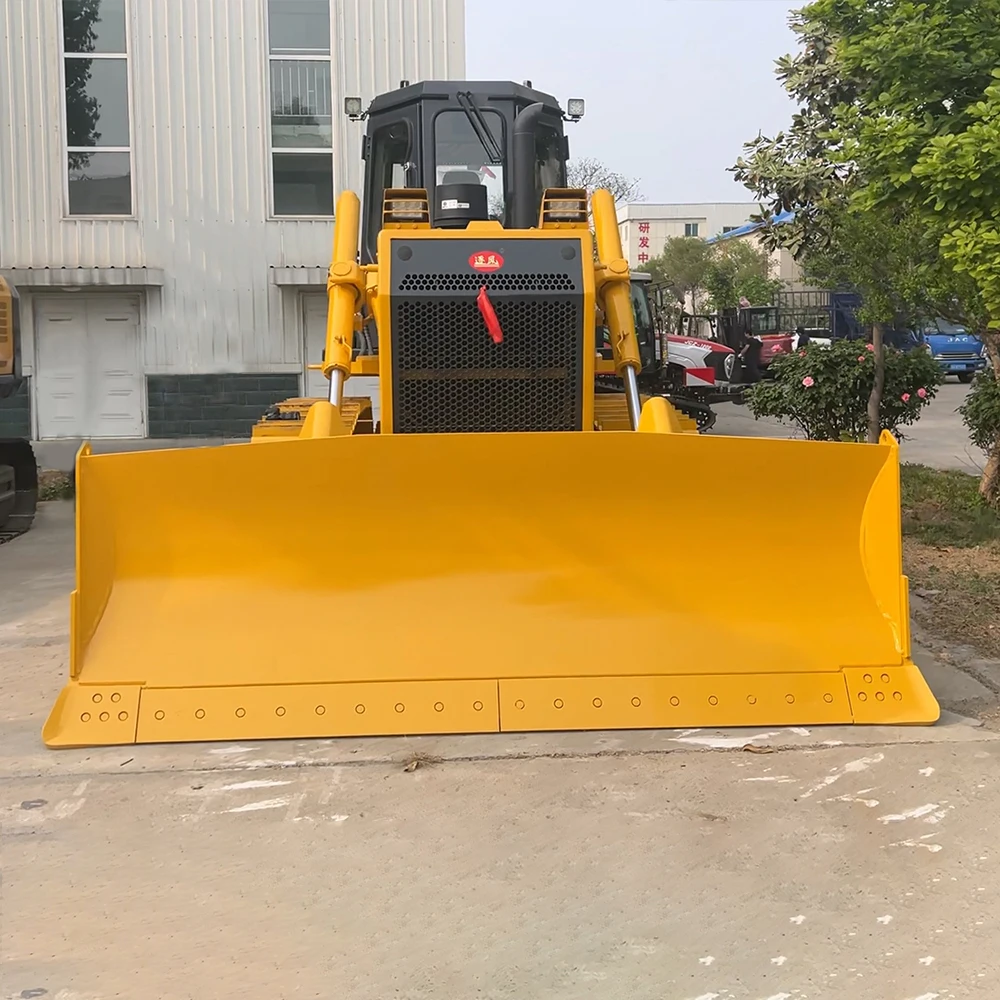

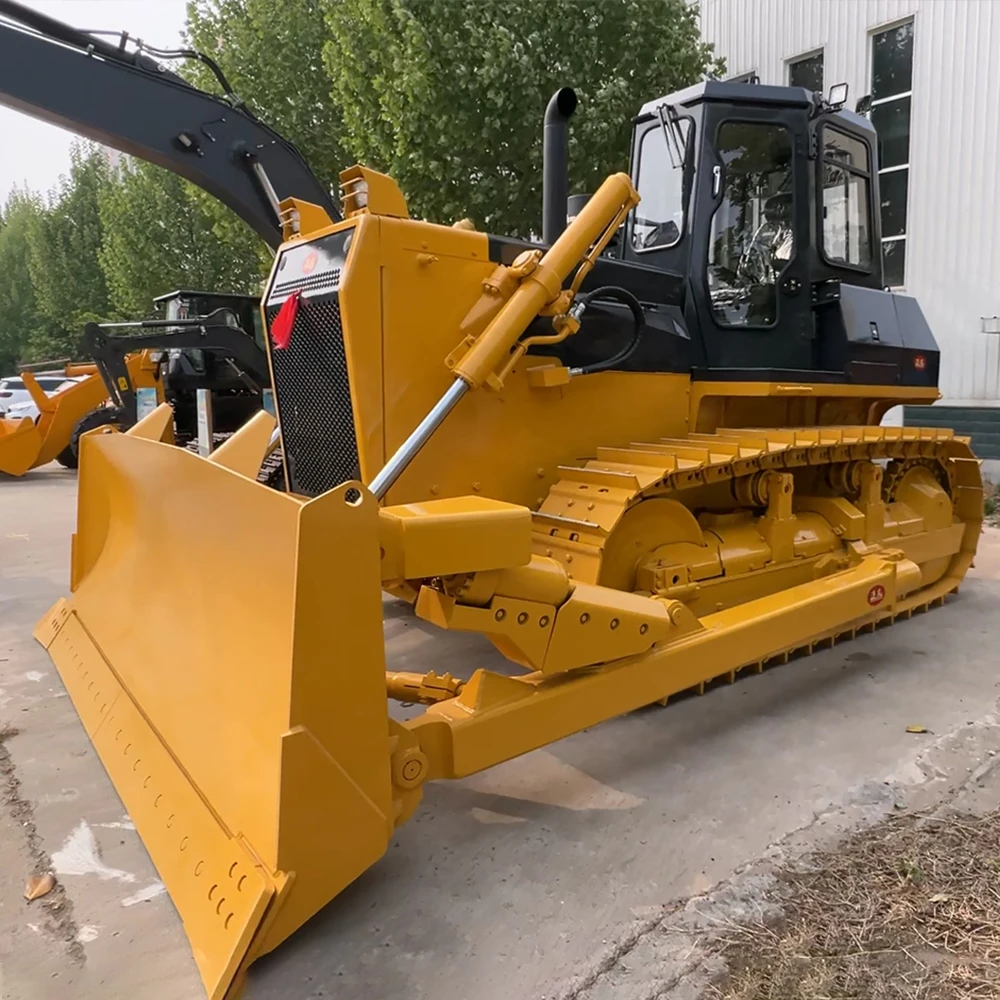

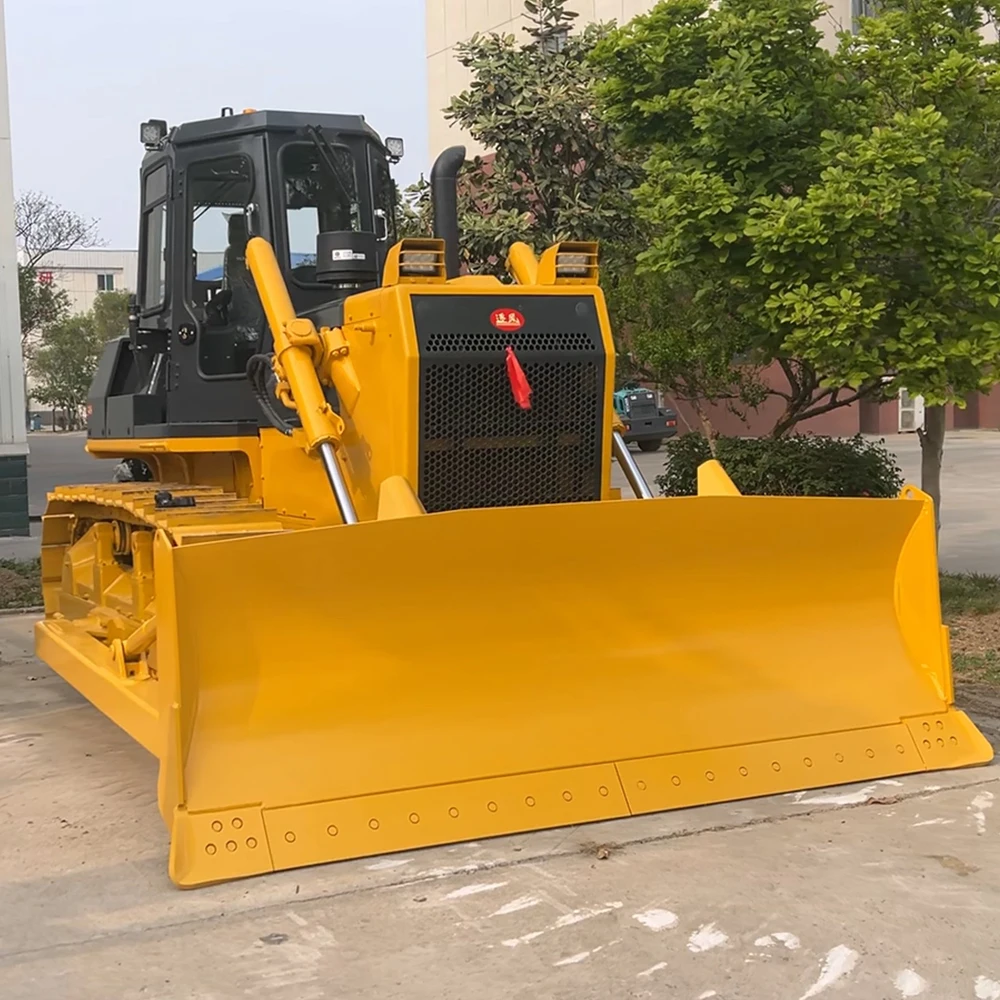

Bulldozer
Model：
TD17T-5
Total Length of Bulldozer：
Dozing Capacity：
3.5m³
Maximum lifting height from the ground：
COLLECT
ShandongWeixinImportandExportCo.,Ltd
Shandong · Jining
Main Products：Construction Machinery、Earth-moving Machinery、Mining Machinery
Enter the store
︿
﹀
Details Parameters
Details Introduction
Product Parameters
D17T-5 Standard Model Technical Parameters
Item
TD17T-5(Standard version)
Performance parameters
Operating weight (Kg)
15200
Engine
Engine model
WD10G178E25
Rated power/rated speed (kW/rpm)
131/1850
Overall dimensions
Overall dimensions of machine (mm)
5140*3388*3032
Chassis System
Center distance of track (mm)
1880
Width of track shoes (mm)
510/560
Ground length（mm）
2430
Tank capacity
Fuel tank（L）
315
Working device
Blade type
Straight tilting blade
Digging depth (mm)
540
Ripper type
Tri-Teeth
Blade Lift Height (mm)
1,095
Noise
Noise ≤ 65dB
Ambient temperature
-15℃-50℃
Product Description
Product description:
1.Powered by a Weichai WD10G178E25 engine, it delivers ample power, is easy to maintain, and offers advantages such as high
combustion efficiency. It complies with China Stage II emission standards.
2.Boasts strong power performance, high reliability, excellent fuel economy, and low noise levels.
3.The fuel system utilizes mechanical high-pressure injection technology, resulting in low fuel consumption rates.
4.A 315L fuel tank enables longer continuous operation, reduces the frequency of refueling, and saves time and costs to generate greater value.
5.The central drive employs spiral bevel gears, single-stage reduction, and splash lubrication.
Product description:
6. The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system ensure easy operation, high transmission power, and efficient productivity.
7.The three-element single-stage single-phase torque converter has a simple and reliable structure, enhancing the machine’s self-adaptability. It smoothly transfers power to the transmission system, effectively protects the drivetrain, and improves the dozer’s operation smoothness and comfort.
8.The steering clutch is wet-type, multi-disc spring-applied, hydraulically released, and manually-hydraulically operated. The steering brake is wet-type, floating band-style, and hydraulically assisted.

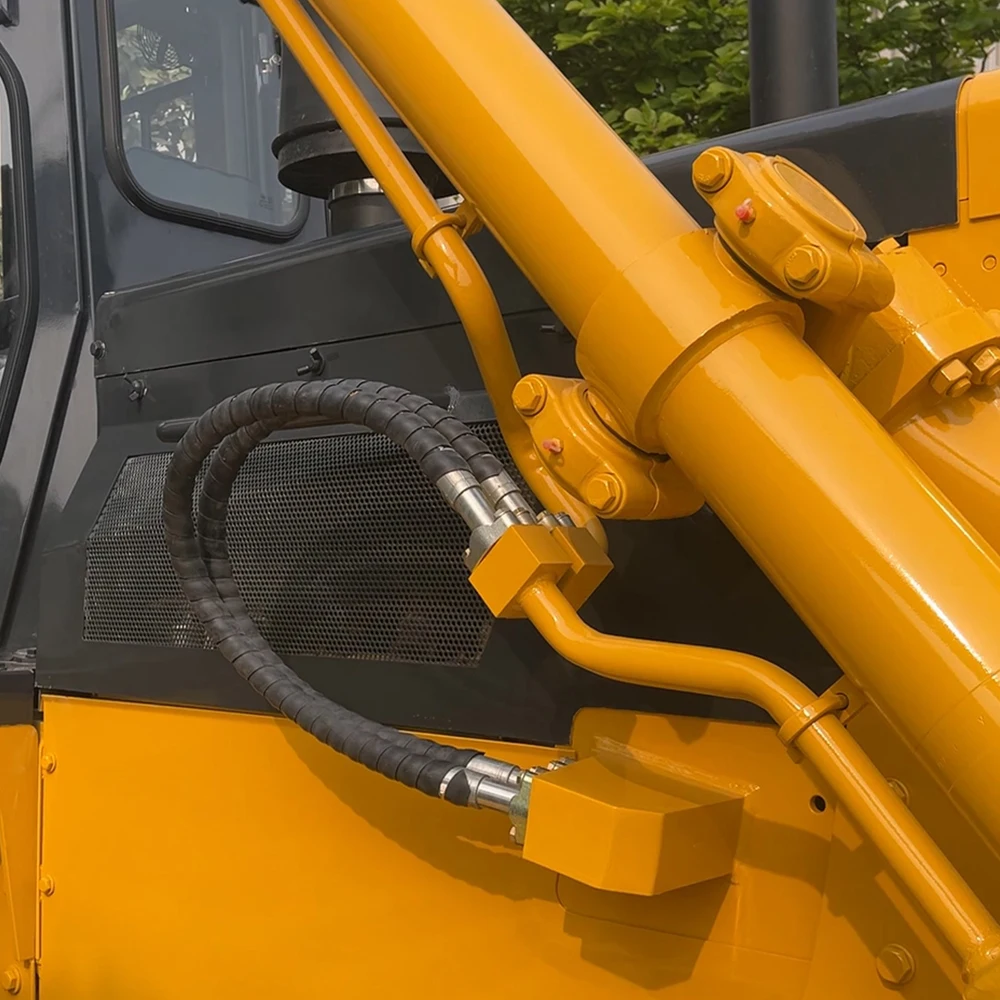

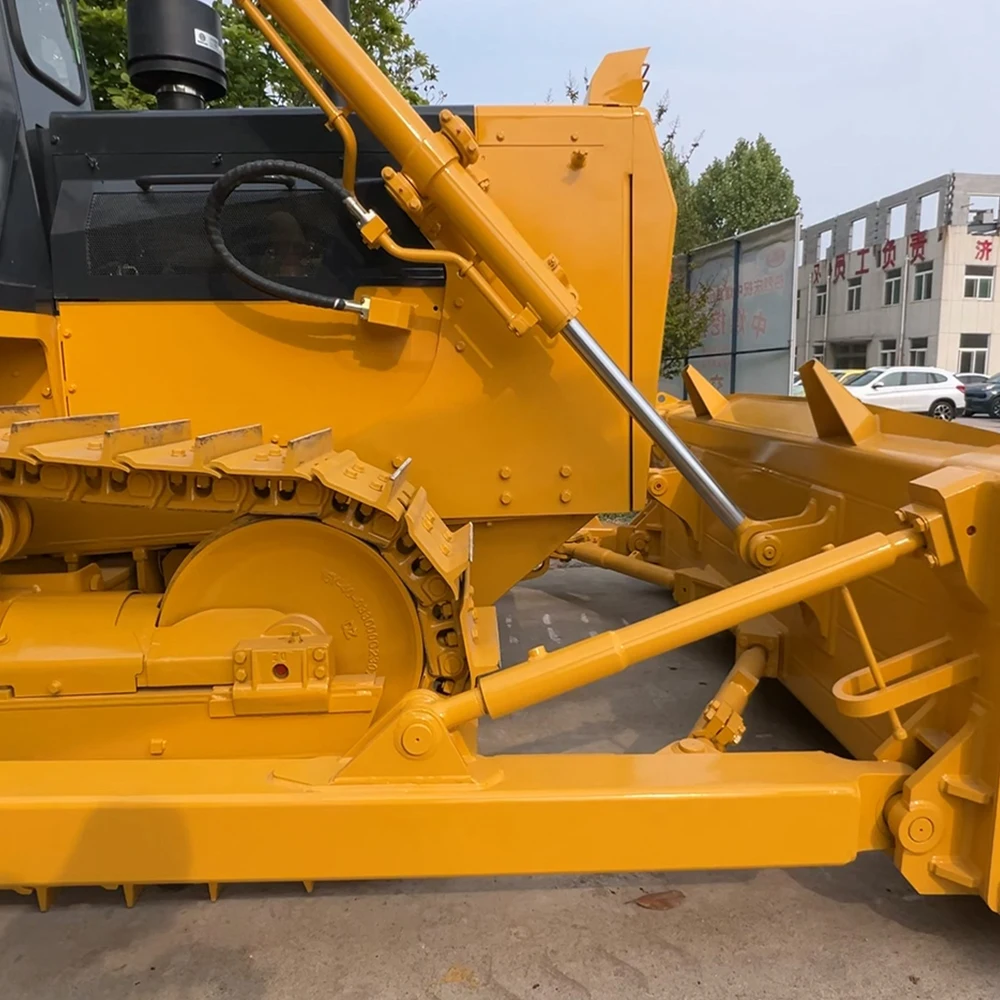

Product details
Packaging and logistics
1. We have our own logistics company, which can save you a lot of budget on logisticstransportation costs.
2.We can package and ship according to customer requirements and provide a reasonabletransportation plan
3. in packaging and shipping, we use sufficiently sturdy packaging materials to withstand thehandling during long-distance transportation
Our certification
Customer feedback
Exhibition
Q1.Are you a manufacturing factory or a trading company?
A: Middling coal Group is the manufacturing base of mine supporting equipment, transportation equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products of road machinery (excavators, spider cranes, rollers and other large road equipment).
Q2. Where is your factory?
A:We currently have a factory in China. One of them is located in Jining City, Shandong Province, China. Warmly welcome you to visit anytime.
Q3. What are your main products?
A:We mainly produce road machinery, mining machinery, and railway equipment. We can provide you with any machine you need!
Q4. How long is the production lead time?
A:Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
Q5. What payment terms do you accept?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
Q6. How do your quality control systems operate?
A:We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
