Scraper Winch

Model：

2JPB-7.5

Rated Speed of Steel Wire Rope：

Power：

7.5KW

Equipment Weight：

390KG

COLLECT

ShandongWeixinImportandExportCo.,Ltd

Shandong · Jining

Main Products：Construction Machinery、Earth-moving Machinery、Mining Machinery

Enter the store

︿

﹀

Details Parameters

Details Introduction

Welcome to China Coal Group ☺

Your Premier Destination for Mining Equipment Scraper Winch


 Shandong China Coal Group is a professional mining equipment and railway equipment manufacturer, which is committed to providing high-quality Mining equipment, Railway equipment, Railway accessories and Construction equipment to customers all over the world.If you don't find what you need in the list, you can contact us.

00:30

03:00

Product Description

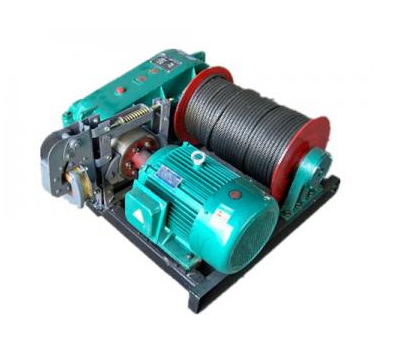

Product Description Of Explosion-Proof Metal Mine Scraper Winch 2JPB-7.5 Mining Scraper Winch

 Mining Scraper Winch is mainly used for coal mine & other underground mine or open-pit ore handling and filling operations. It is mainly used for horizontal plane transport and slope dumping with small slope angle, but it cannot be used as lifting equipment. The parallel arrangement of electric tweezers is common to the PB series bucket loading machine. Application of Mining Scraper Winch The main components of the electric tweezers are a speed reducer, a main reel, a secondary reel, an operating device, a steel wire for guide and an electric motor. These components are housed inside and outside the housing. The housing is a component with good rigidity, which serves as a protection, support and full load. zmwm23

Product Parameters

Product Parameters Of Explosion-Proof Metal Mine Scraper Winch 2JPB-7.5 Mining Scraper Winch

Item		unit	Model
			2JPB-7.5	2JPB-15	2JPB-22	2JPB-30	2JPB-55
			2JP-7.5	2JP-15	2JP-22	2JP-30	2JP-55
Main wire rope Min. tension		N	8000	14000	20000	275000	44000
Average speed	Main wire rope	±5%m/s	1	1.1	1.2	1.2	1.2
Average speed	Secondary wire rope	±5%m/s	1	1.5	1.5	1.6	1.8
Wire rope diameter	Main wire rope	mm	9.3	12.5	14	15.5	18.5
Wire rope diameter	Secondary wire rope	mm	9.3	11	11	14	16
Drum	Dia.	mm	205	225	280	280	350
	Rim diameter	mm	350	435	510	510	625
	Width	mm	80	125	160	160	180
Wire rope size	Main drum	m	45	80	80	80	100
Wire rope size	Secondary drum	m	45	100	100	110	130
Electric motor	Model	/	YBK₂-132M-4	YBK₂-160L-4	YBK₂-180L-4	YBK₂-200L-4	YBK₂-250M-4
	Model	/	Y₂-132M-4	Y₂-160L-4	Y₂-180L-4	Y₂-200L-4	Y₂-250M-4
	Power	KW	7.5	15	22	30	55
	Rotating speed	r/min	1440	1460	1470	1470	1470
Dimensions	Length	mm	1210	1525	1600	1650	2070
	Width	mm	565	660	730	820	1010
	Height	mm	490	620	640	700	890
Total weight(excluding skips and pulleys)		kg	390	660	980	1155	2125
