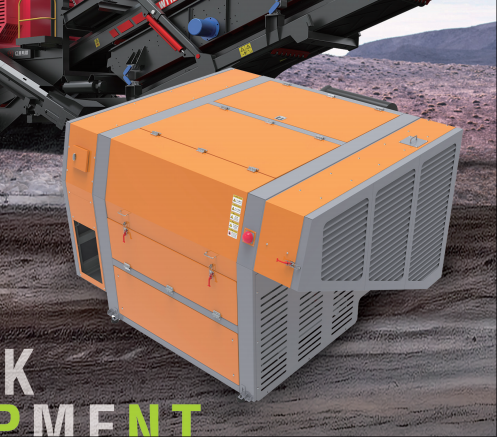

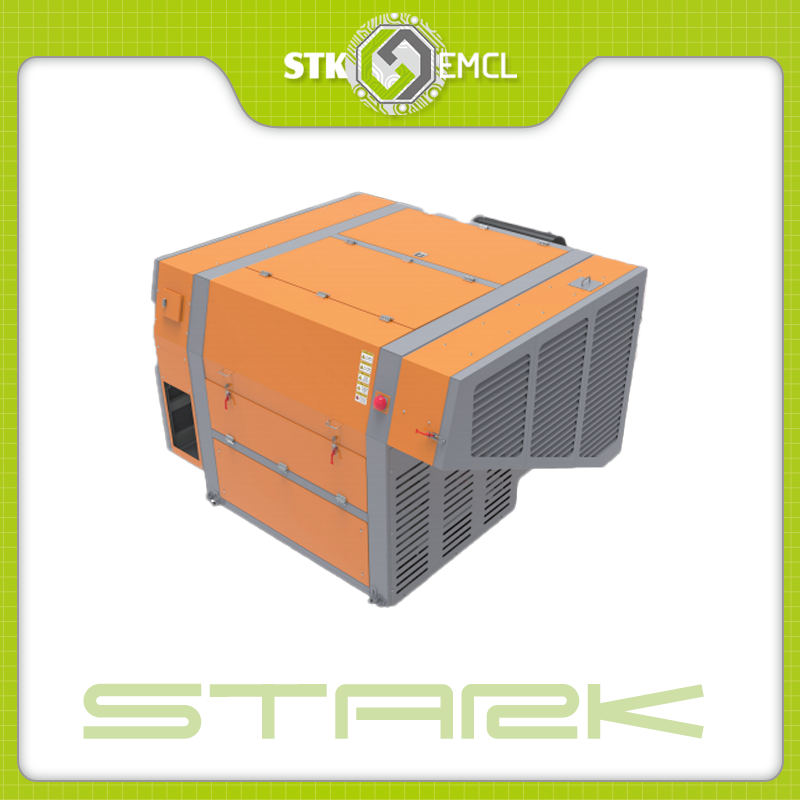

Multi-Cylinder Crusher Combination Station
Type：
Multi-Cylinder Crusher Combination Station
Power：
45kw
Fuel Tank Capacity：
2600L
Model：
ST-DG1250Pro
COLLECT
Zhejiang Stark Equipment Manufacturing Co., Ltd
Zhejiang · HuzhouMain Products：Mobile tracked walking hydraulic system, single cylinder multi cylinder combination lubrication hydraulic system, engineering machinery hydraulic system, composite cone lubrication system, sand making machine lubrication system, mining automation production line, ship hydraulic and other lubrication systems
Enter the store
︿
﹀
Details Parameters
Details Introduction
Multi-cylinder cone crusher combined hydraulic and lubrication system, using imported components and advanced design technology, features a simple structure, easy operation, and longer pressure retention.
Multi-Cylinder Crusher Station Combined System Parameters
| Model | Lubrication Flow Rate | Hydraulic Flow Rate | Lubrication Oil Tank Capacity | Hydraulic Oil Tank Capacity | Hydraulic Motor Power | Lubrication Motor Power | Electric Heater Power | Air Cooling Motor Power |
| ST-DG100Pro | 90L/min | 20L/Min+6L/Min | 400L | 150L | 7.5kw | 5.5kw | 6kw | 2.2KW |
| ST-DG200Pro | 120L/min | 20L/Min+6L/Min | 400L | 150L | 7.5kw | 5.5kw | 6kw | 3KW |
| ST-DG300Pro | 160L/min | 20L/Min+6L/Min | 400L | 150L | 7.5kw | 7.5kw | 6kw | 4KW |
| ST-DG400Pro | 210L/min | 20L/Min+6L/Min | 600L | 260L | 7.5kw | 7.5kw | 6kw | 5.5KW |
| ST-DG500Pro | 240L/min | 20L/Min+6L/Min | 600L | 260L | 7.5kw | 7.5kw | 6kw | 7.5KW |
| ST-DG1250Pro | 760L/min | 120L/Min | 2600L | 700L | 45kw | 30kw | 24KW | 5.5KW×4 |
Note: For extreme cold or extreme hot regions, our company also provides specialized configuration solutions tailored to harsh climates.
| Brand | Siemens | Kunluntongtai | Schneider | CHINT | Xichi | Danfoss | OUKE | WEG | HOYEA | Rexroth | Dihour | Casappa | HPI | WIKA | STARK | Goldwind |
| PLC | ★ | ☆ | ||||||||||||||
| Human-Machine Interface | ☆ | ★ | ||||||||||||||
| Motor Circuit Breaker | ★ | ☆ | ||||||||||||||
| Soft Starter | ☆ | ★ | ☆ | |||||||||||||
| Sensor | ★ | ☆ | ||||||||||||||
| Motor | ★ | |||||||||||||||
| Hydraulic Valve | ★ | ☆ | ||||||||||||||
| Lubrication Pump | ★ | ☆ | ||||||||||||||
| Hydraulic Pump | ★ | |||||||||||||||
| Pressure Gauge | ★ | |||||||||||||||
| Cooler | ★ | ☆ |
★ Standard options ☆ Optional items
