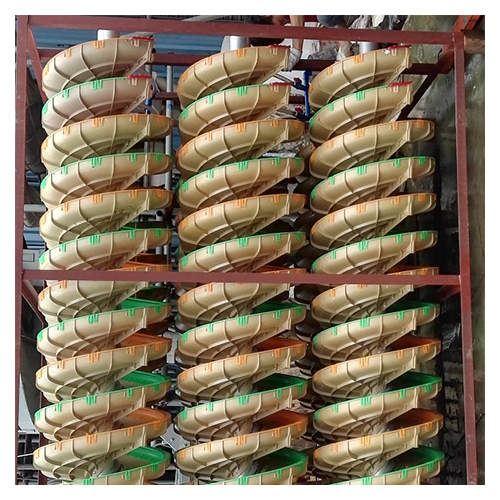

The characteristics of our spiral chute concentrator:

1. Layered mining. Our various types of spiral concentrators can be equipped with ore cutting ports in each circle, and the concentrate can be intercepted in half, known as "layered ore collection", which can achieve the efficiency of "early collection and more collection";

2. Guide dam with curved groove surface. The spiral groove surface is equipped with enough arc-shaped bars that rotate inward from the outer edge to the center, enhancing the enrichment of fine-grained heavy minerals.

The spiral with these two functional characteristics, combined with an increase in the number of turns for mineral processing, has a much higher sorting efficiency than ordinary large spirals and can simplify the complex "selection" process. By using FG7 spiral roughing and scanning, supplemented by L-shaped spiral for selection, and combined with strong magnetic tailing equipment, an efficient yet simplified iron ore beneficiation process can be achieved; It is possible to reduce flotation treatment capacity, reduce chemical pollution emissions, and improve environmental pressure,; It is also possible to reduce the amount of roasting treatment, significantly save energy and reduce emissions, lower costs, and achieve excellent results.

In summary, small spirals have significant advantages such as small footprint, large processing capacity, and high recovery rate. We can use new advanced equipment to break through the limitations of outdated equipment, thereby simplifying the process flow, reducing production costs, and increasing efficiency. If you are interested in collaborating with us on a technical renovation project for a beneficiation plant, please contact us by letter or phone for business negotiations.

Model and specifications of spiral chute concentrator

The patent numbers of the equipment in various countries are: Chinese Invention 03113503X, Utility Models 201120288083, 201120215456, 20112021523, 200620153975;Australian Invention 2012292866; Indian Invention 6194/Delnp/2013; South African Invention 2013/06406; Vietnamese Invention 1-2013-01557.

Yinou Technology's,Smart Mineral Processing, Green and Environmental Protection, Give You Confidence

ALICOCO Mineral Technology Co., Ltd. has years of experience in the research, design, development, manufacturing, installation, and debugging of mineral gravity separation processes. We diagnose and analyze the problems in the current iron mine mineral processing process, and use our patented technology to manufacture spiral chute concentrators, which are closely matched with excellent equipment from other manufacturers. We provide tailored and feasible solutions (3% -6%) for improving mineral magnetic gravity separation processes for iron ore users. Our process system is environmentally responsible and rarely uses chemicals. Each key point in the mineral processing process (such as stable ore volume and slurry concentration) is equipped with efficient and precise control devices.

Project Case:

The Anshan type red ore (hematite, limonite) beneficiation project adopts a "stage grinding, re selection for precision, and strong magnetic tailing" process plan. The intelligent control module makes the sorting ore belt stable and clear, the tank surface is not easy to scale, the iron concentrate grade TFe is above 63%, the lower limit of recovery particle size is 460 mesh, and the tailings grade is below 11%.
